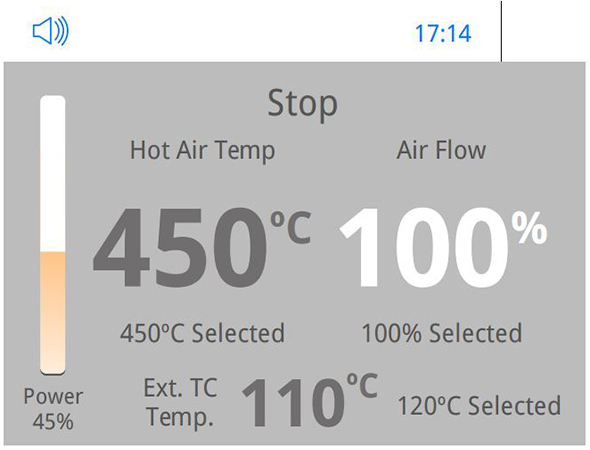

Manual mode In manual mode the operator can set temperature values and air flow rate depending on the task.

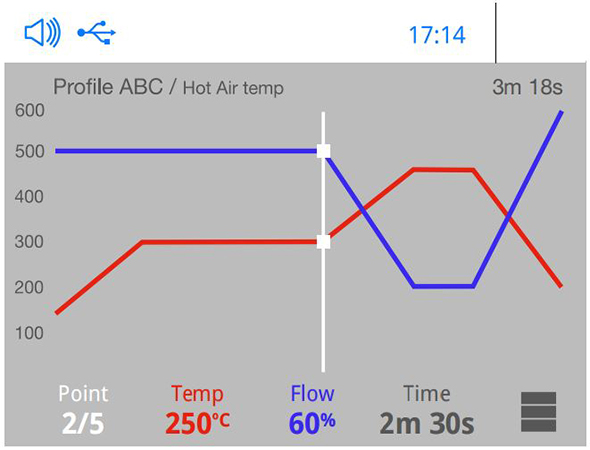

Profile mode In this mode the operator can set up or edit as many as 25 profiles of temperature and air flow.

Control thermocouple

Users can read the temperature at a specific point on the PCB with the control thermocouple. This helps protect components or a specific area on the PCB, and provides greater precision when regulating the temperature.

There are two work modes available for use with the control thermocouple:

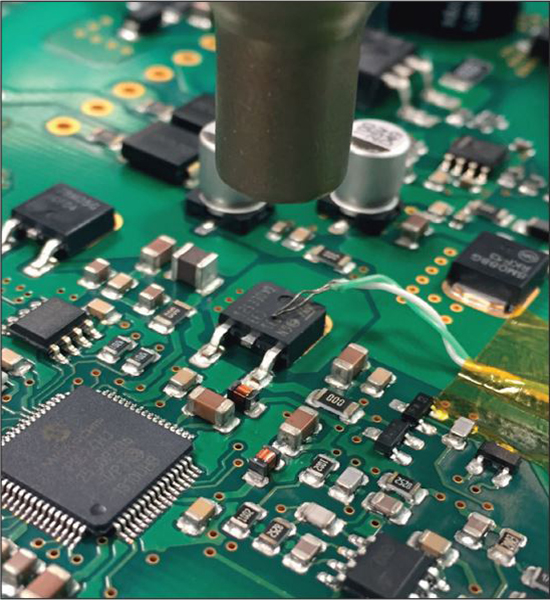

Regulation: the station regulates the air temperature automatically to maintain the External Thermocouple (TC) temperature.

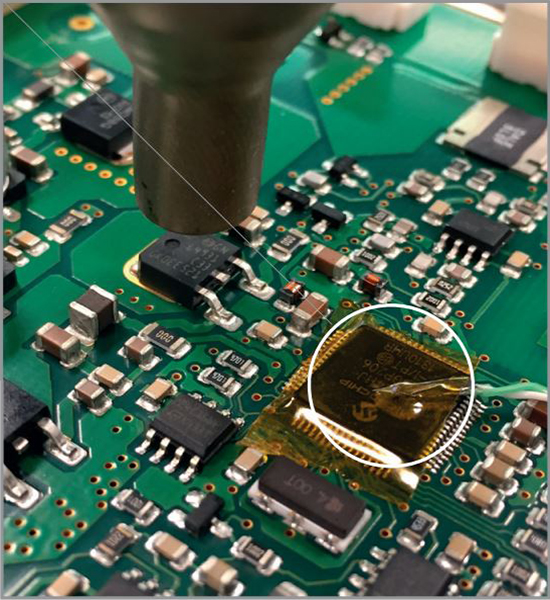

Protection: the station cuts the air supply off when the External Thermocouple (TC) temperature is reached.

Auto-stop function

The auto-stop function is a safety measure which guarantees the heat is automatically cut off when the tool is in the stand. This also means you save power and extend the life of the tip. There is also an auto start feature. When selected, the tool automatically heats up when lifted from the stand.

Extractor desk

The JBC JTSE-1A comes with a complete extractor desk, containing tripods, protectors and extractors. This enables users to quickly desolder, while simultaneously protecting adjacent components by concentrating heat on the selected area.

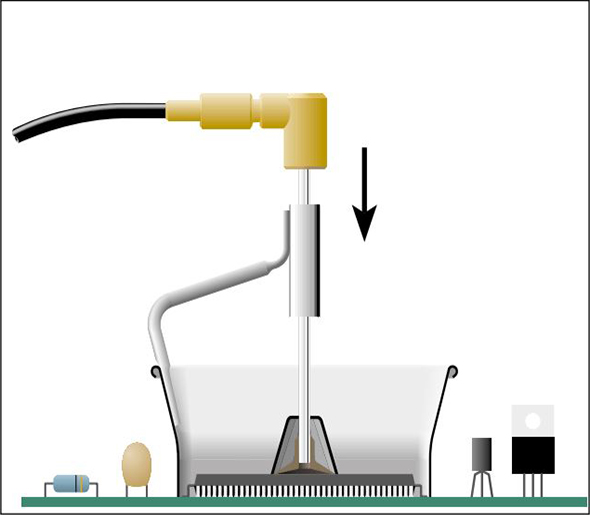

1. Placing Choose the extractor, tripod or protector which best fits the component.

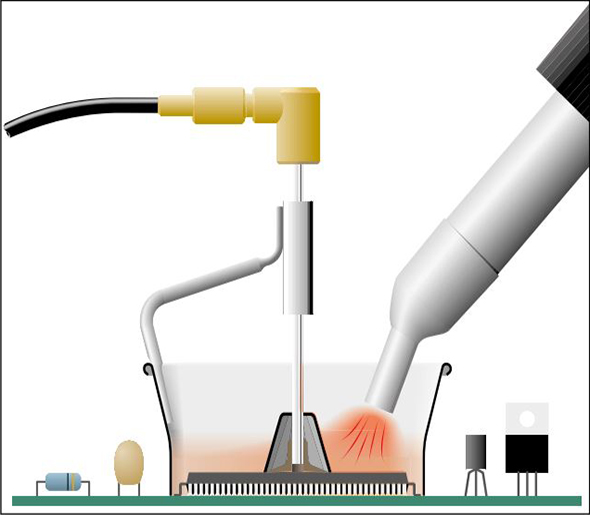

2. Heating While you apply the heat to the component, the surrounding elements are protected.

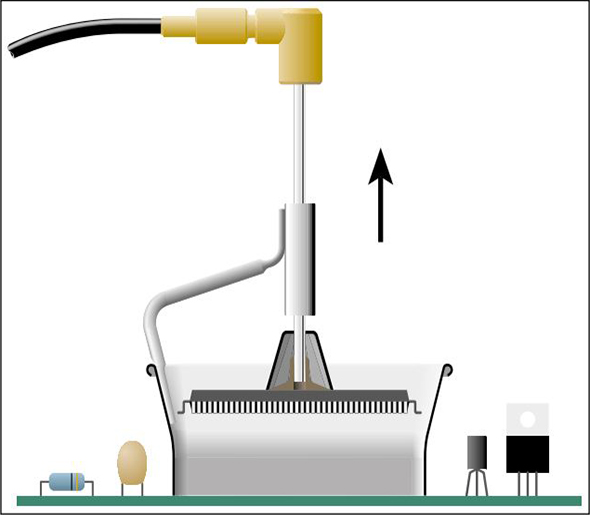

3. Extracting Automatic withdrawal of the desoldered component.
