• Adjustable rework arm
• Enables hands free operation
• Base: 10.6 x 16.2 inches
• Height: 15.2 inches
• Arm length: 17.5 inches

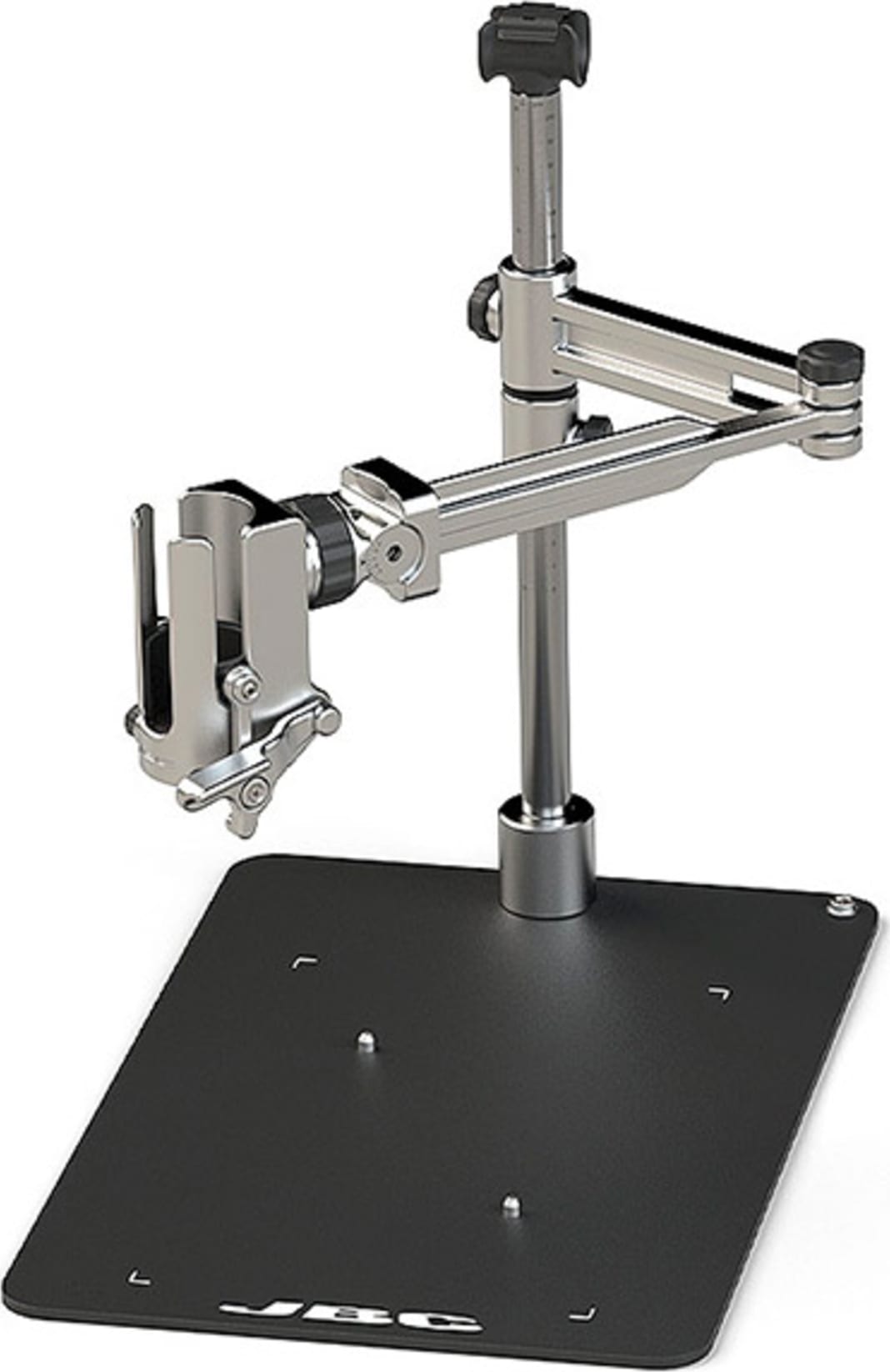

The JBC RWS-D is an adjustable rework arm which supports heater hose sets and enables hands free operation. The RWS-D rework arm includes adapter pieces making it compatible with both the JTSE and TESE hot air stations and its base plate is designed for use with the JBC PHSE pre-heater.

The tool holder allows inclination and rotation adjustment, and both the vertical axis and tool holder have scaled articulation for easily repeated tasks.

The hose clamp holds the heater hose away from the work area to keep it clear of obstacles.

The RWS-D Arm allows adjustment for different heights according to your work needs through the vertical axis rule. Slide the tool holder to the appropriate height and secure by tightening the lower knob to guarantee stability.

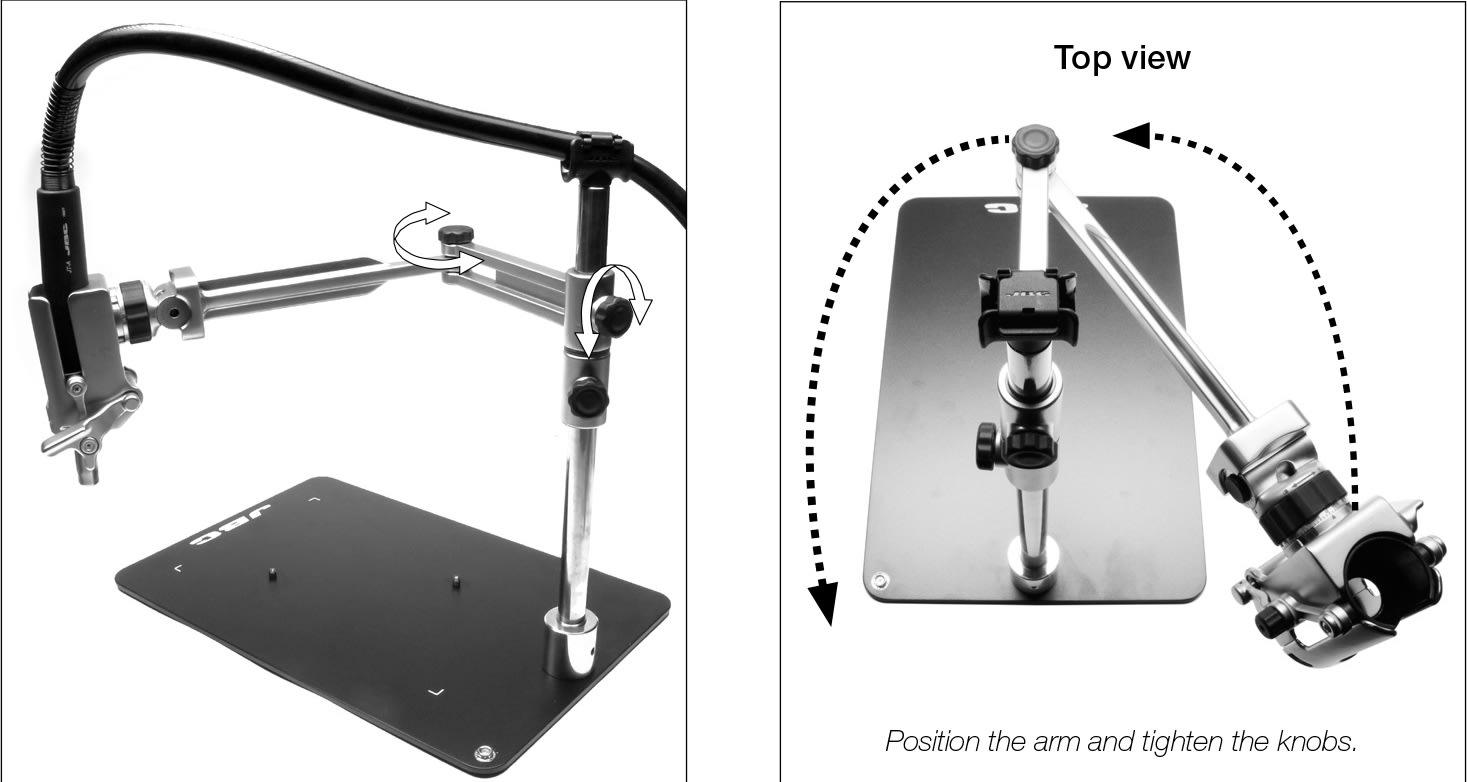

The RWS-D arm allows adjustment for different positions according to your work needs. The articulated arm covers all work areas.

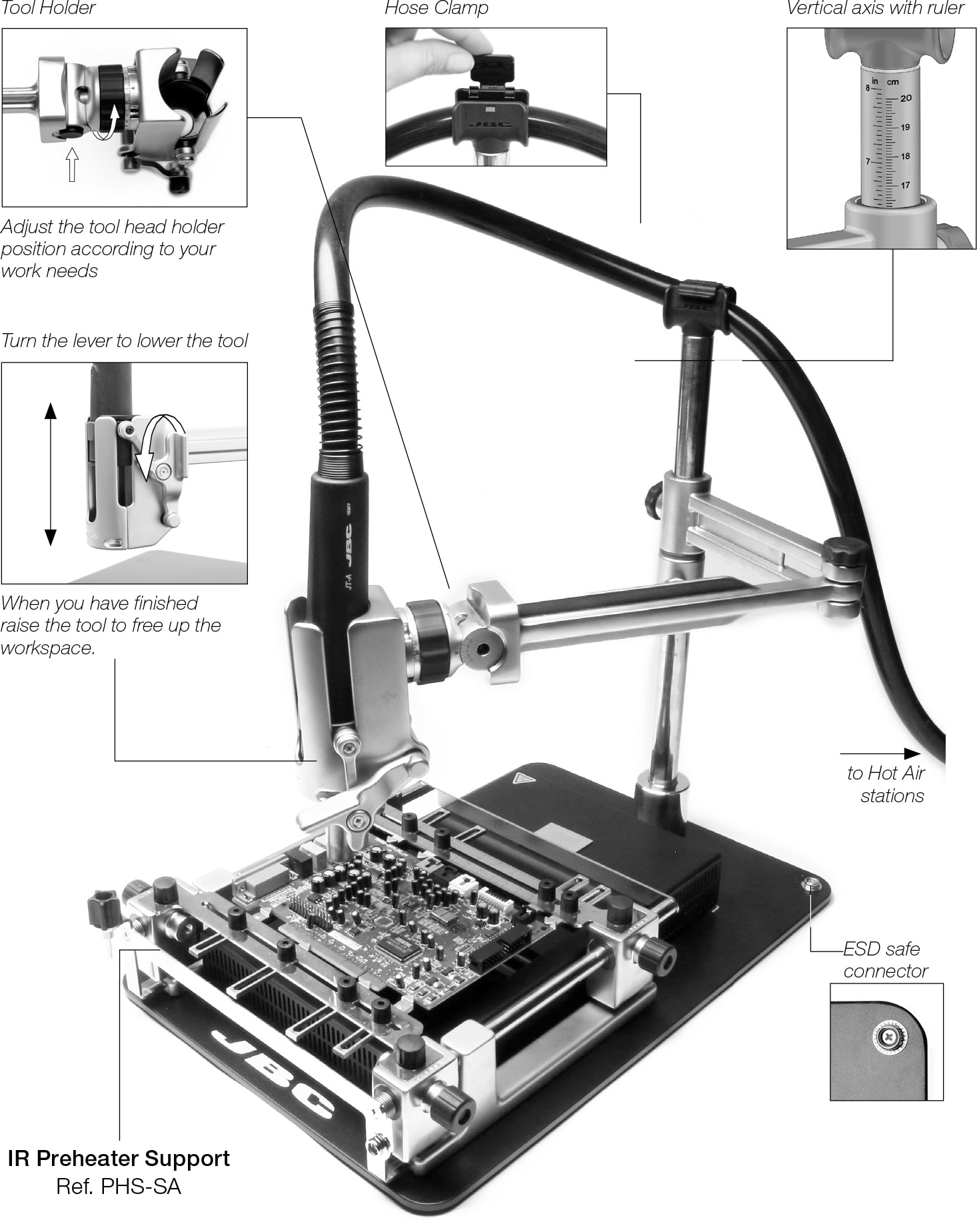

The RWS-D is ideal for working with JBC’s hot air stations and a preheater, especially the PHSE-K. Please note, the image below is for illustrative purposes and shows optional items. Hot air stations and pre-heaters are sold separately.
