JBC RWB-B - Adjustable Rework Arm for PHBE (18.9 x 21.7" Base)

0 reviews | Catalog: RWB-B | UPC: 8427327449930 | Model: JBC RWB-B

Compare

PHB Rework Adjustable Arm

Adjustable rework arm
Enables hands free operation
Base: 18.9 x 21.7"
Height: 15.2"
Arm length: 17.5"
Arm can be used with both JTSE and TESE hot air stations
Base plate is designed for use with PHBE pre-heaters
Tool holder allows inclination and rotation adjustment
Both vertical axis and Tool Holder articulation are scaled, which is helpful in repetitive soldering tasks
Hose clamp holds the heater hose away from the work area to keep it clear of obstacles

View Product Details

List Price: $1,075.00

Your Price: $967.50

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	JBC RWB-B PHB Rework Adjustable Arm	JBC RHS-A Articulat. Hand Rest for PHSEK	JBC RWS-D Adjustable Rework Arm for PHS (Base 270x410 mm)	JBC RWT-B Rework Adjustable Arm	JBC HRL-A Articulated Left Hand Rest	JBC HRR-A Articulated Right Hand Rest	JBC RHB-A Articulat. Hand Rest for PHBEK	JBC RHT-A Articulated Hand Rest w/o Base
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

JBC RWB-B Accessories

Choose a Category

Soldering Accessories

for the JBC RWB-B

JBC HRL-A Articulated Left Hand Rest

Catalog: HRL-A

(0)

In Stock!

Add to Cart

JBC HRR-A Articulated Right Hand Rest

Catalog: HRR-A

(0)

In Stock!

Add to Cart

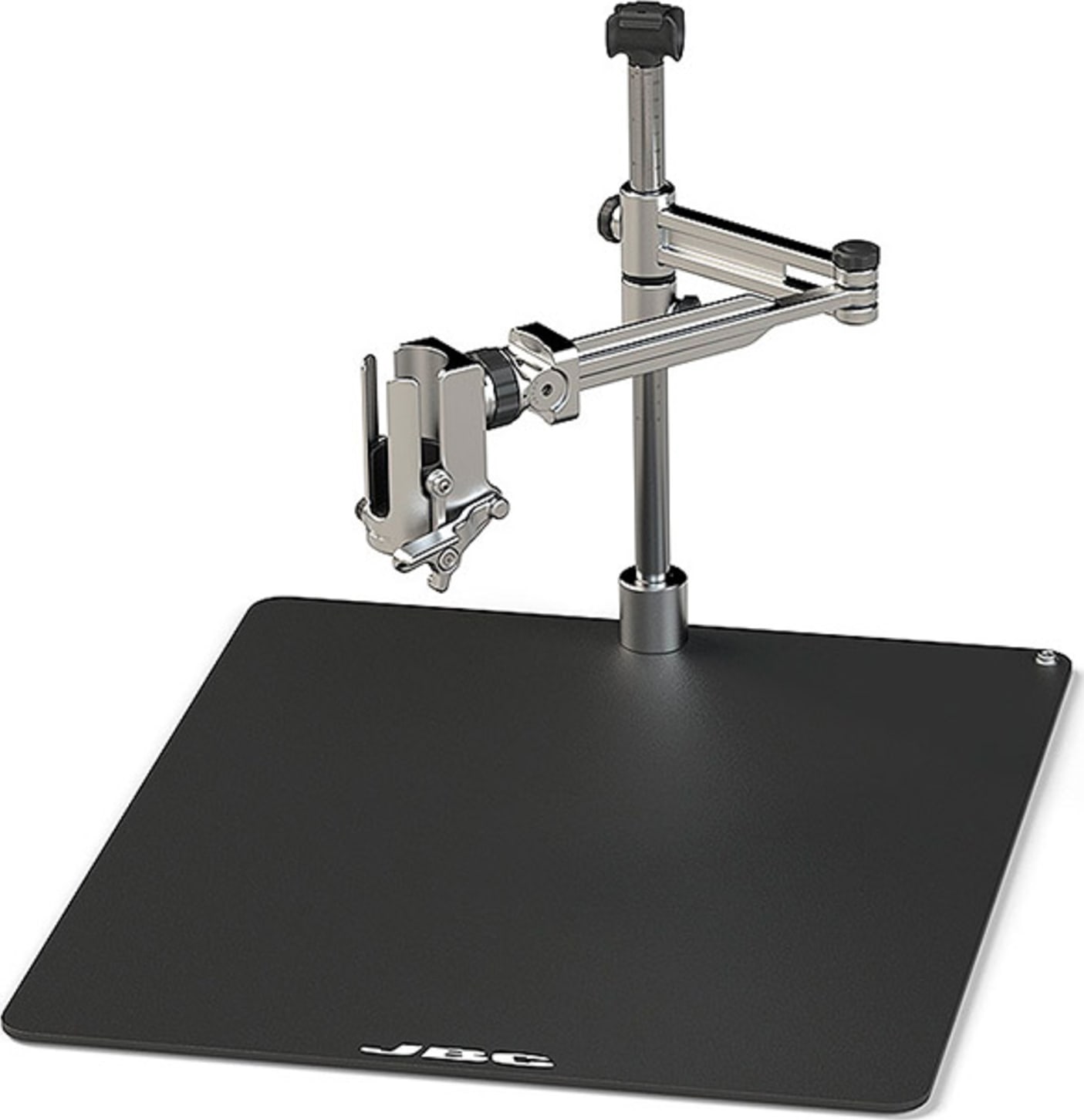

JBC RWB-B - Adjustable Rework Arm for PHBE (18.9 x 21.7" Base)

Adjustable rework arm
Enables hands free operation
Base: 18.9 x 21.7"
Height: 15.2"
Arm length: 17.5"

The JBC RWB-B is an adjustable rework arm which supports heater hose sets and enables hands free operation. The RWB-B rework arm includes adapter pieces making it compatible with both the JTSE and TESE hot air stations, and its base plate is designed for use with the JBC PHBE pre-heater.

The tool holder allows inclination and rotation adjustment, and both the vertical axis and tool holder have scaled articulation for easily repeated tasks.

The hose clamp holds the heater hose away from the work area to keep it clear of obstacles.

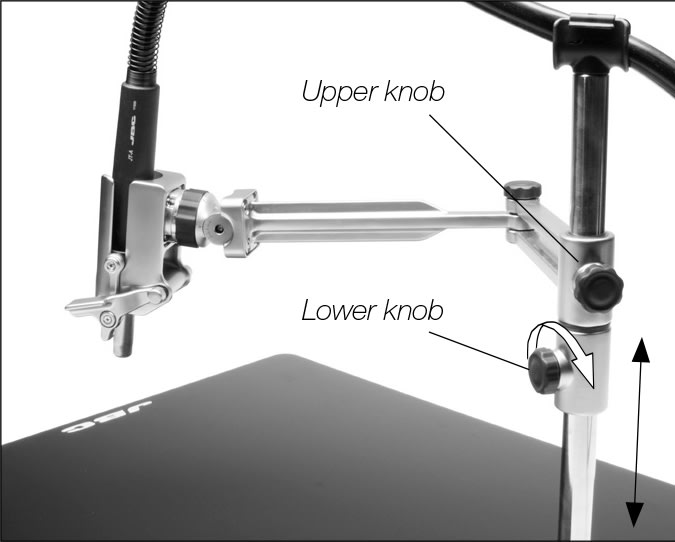

Height adjustment

The RWB-B arm allows adjustment for different heights according to your work needs through the vertical axis rule.

Slide the tool holder to the appropriate height and secure by tightening the lower knob to guarantee stability.

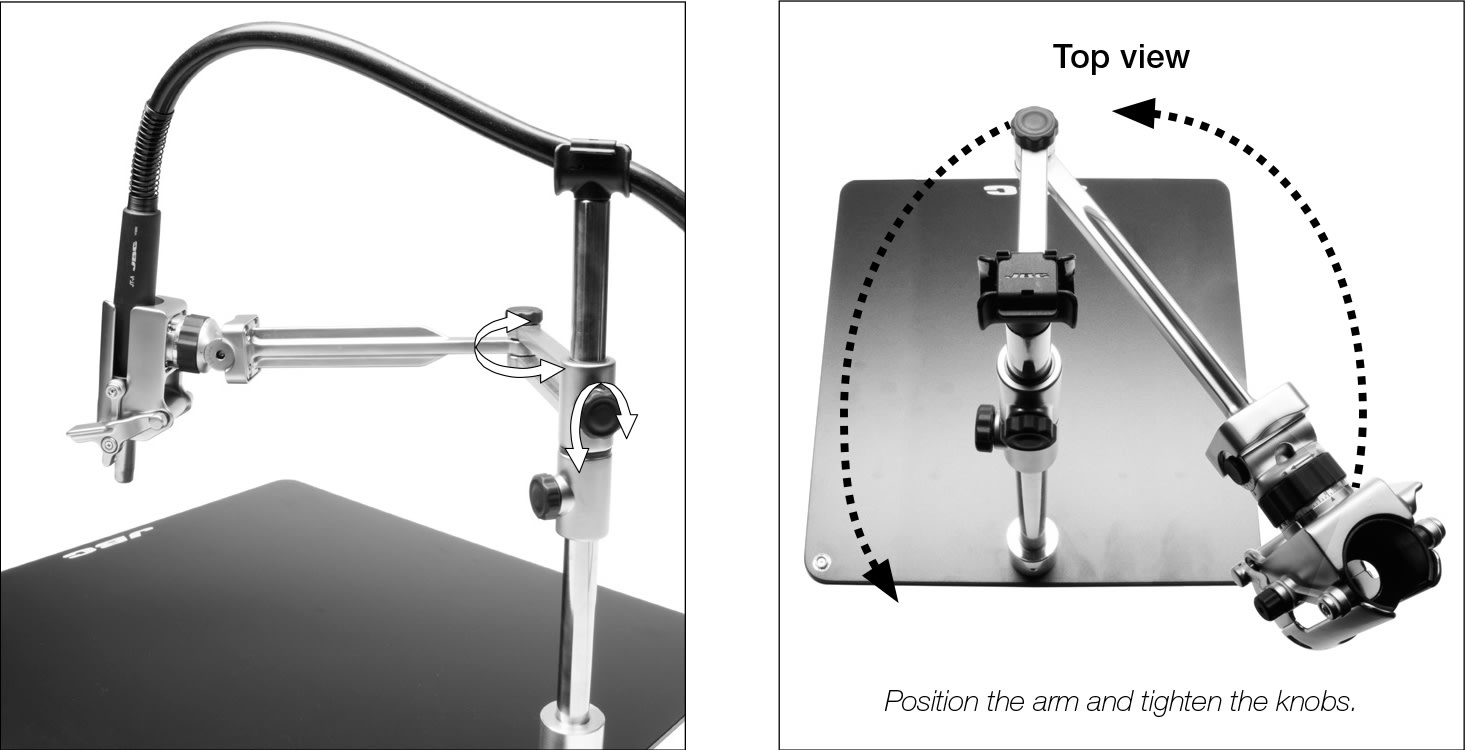

Work position adjustment

The RWB-B arm allows adjustment for different positions according to your work needs. The articulated arm covers all work areas.

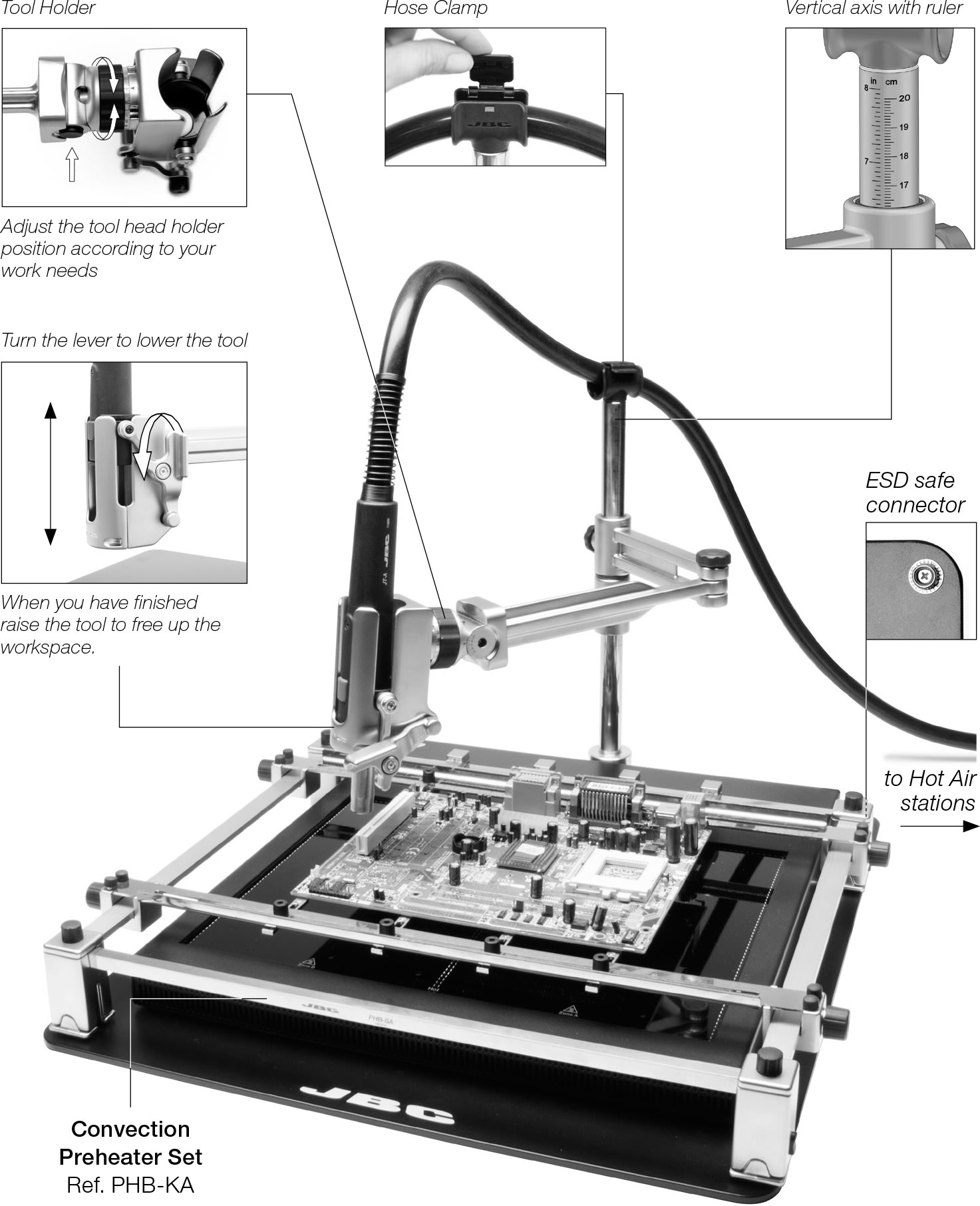

Hot air stations and pre-heaters

The RWB-B is ideal for working with JBC’s hot air stations and a preheater, especially the PHBE-K. Please note, the image below is for illustrative purposes and shows optional items. Hot air stations and pre-heaters are sold separately.
