JBC RMSE-1E - Complete Rework System (Shop Air NOT Required)
Everything You Need in One Box
The JBC RMSE-1E is a complete rework system, with soldering, desoldering and hot air functionality. The RMSE-1E includes the DDE two-channel control unit, JTSE hot air station, as well as a T245-A iron, DR560-A desoldering iron, and JT-TA hot air iron. This package also has an electric pump, therefore, compressed air is not necessary. For a complete list of included products, please see the tab labeled "What's in the Box.
DDE Two-Channel Control Unit
The JBC DDE-1B is a two-channel soldering station. Compatible with a wide variety of tools, the DDE-1B offers a peak power of 150 watts per device, and channels that can be used simultaneously. This station is a JBC Excellence range product, offering benefits such as station customization, full control of soldering processes, and remote work management.
JBC Exclusive Heating System
The DDE-1B utilizes the JBC exclusive heating system - tip temperature recovers extremely fast, which increases efficiency while lowering temperatures.
JBC heating system principles
- The compact element optimizes heat transfer by reducing the thermal barriers.
- The fully integrated thermal sensor to the heater ensures an extremely quick temperature recovery.
- The intelligent algorithm used in the heating control system increases performance.
JBC system can reach 350ºC (662ºF) in only 2 seconds, while others need between 10 and 90 seconds.
JBC, the most efficient soldering process
This innovative technology allows a reduction of the temperature by at least 50ºC.
Lowering the temperature reduces the risk of damaging components and improves the quality of soldering and desoldering.
JBC stations only drop 35ºC (95ºF) where others drop as much as 70ºC (158ºF)
Compatible Tools
The DDE-1B is very versatile and can be used with a wide variety of tools. Please note, certain instruments, such as desoldering irons and solder feeders, will require additional modules to operate.
JTSE Hot Air Station
The JBC JTSE-1A is a high powered hot air station for repairing all types of SMDs quickly and safely, including the biggest QFPs and PLCCs.
Profiles mode
There are two work modes to choose from - manual and profile. In manual mode, the operator can set temperature values and air flow rate depending on the task. In profile model, the operator can set up and edit as many as 25 profiles for temperature and airflow.
|
Manual mode
In manual mode, the operator can set temperature values and airflow rate depending on the task.
|
Profile mode
In this mode the operator can set up or edit as many as 25 profiles of temperature and airflow.
|
Control thermocouple
Users can read the temperature at a specific point on the PCB with the control thermocouple. This helps protect components or a specific area on the PCB, and provides greater precision when regulating the temperature.
There are two work modes available for use with the control thermocouple:
|

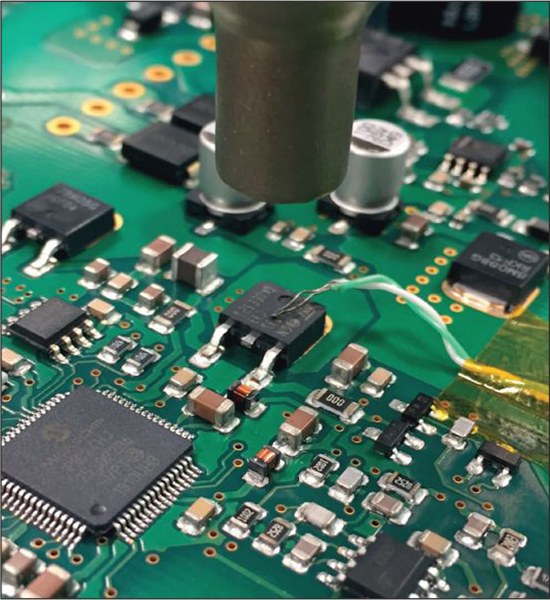

Regulation: the station regulates the air temperature automatically to maintain the External Thermocouple (TC) temperature.
|

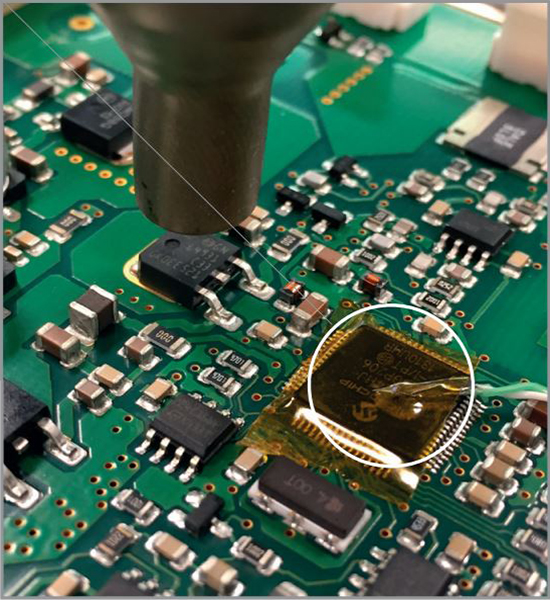

Protection: the station cuts the air supply off when the External Thermocouple (TC) temperature is reached.
|
Extractor desk
The JBC JTSE-1A comes with a complete extractor desk, containing tripods, protectors, and extractors. This enables users to quickly desolder, while simultaneously protecting adjacent components by concentrating heat on the selected area.
|

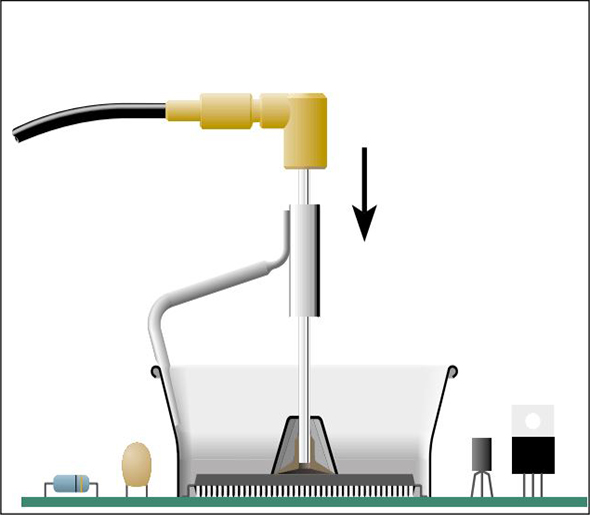

1. Placing
Choose the extractor, tripod or protector which best fits the component.
|

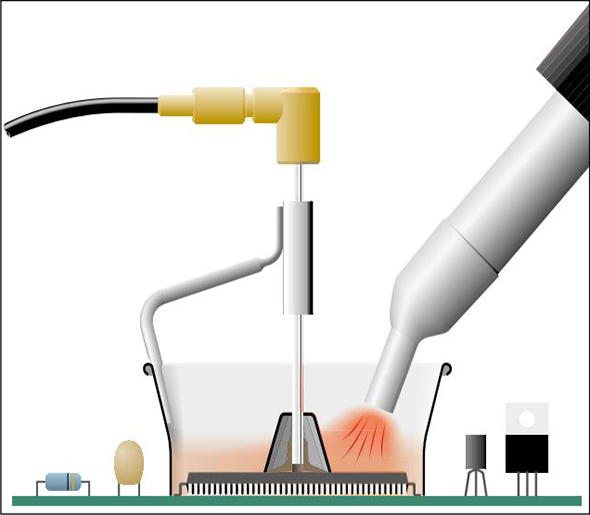

2. Heating
While you apply the heat to the component, the surrounding elements are protected.
|

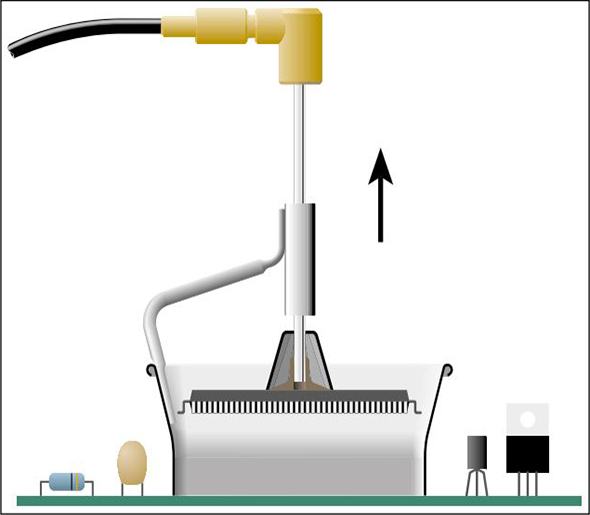

3. Extracting
Automatic withdrawal of the desoldered component.
|
