0 reviews | Catalog: PHSE-1KB | UPC: 8427327543836 | Model: JBC PHSE-1KB

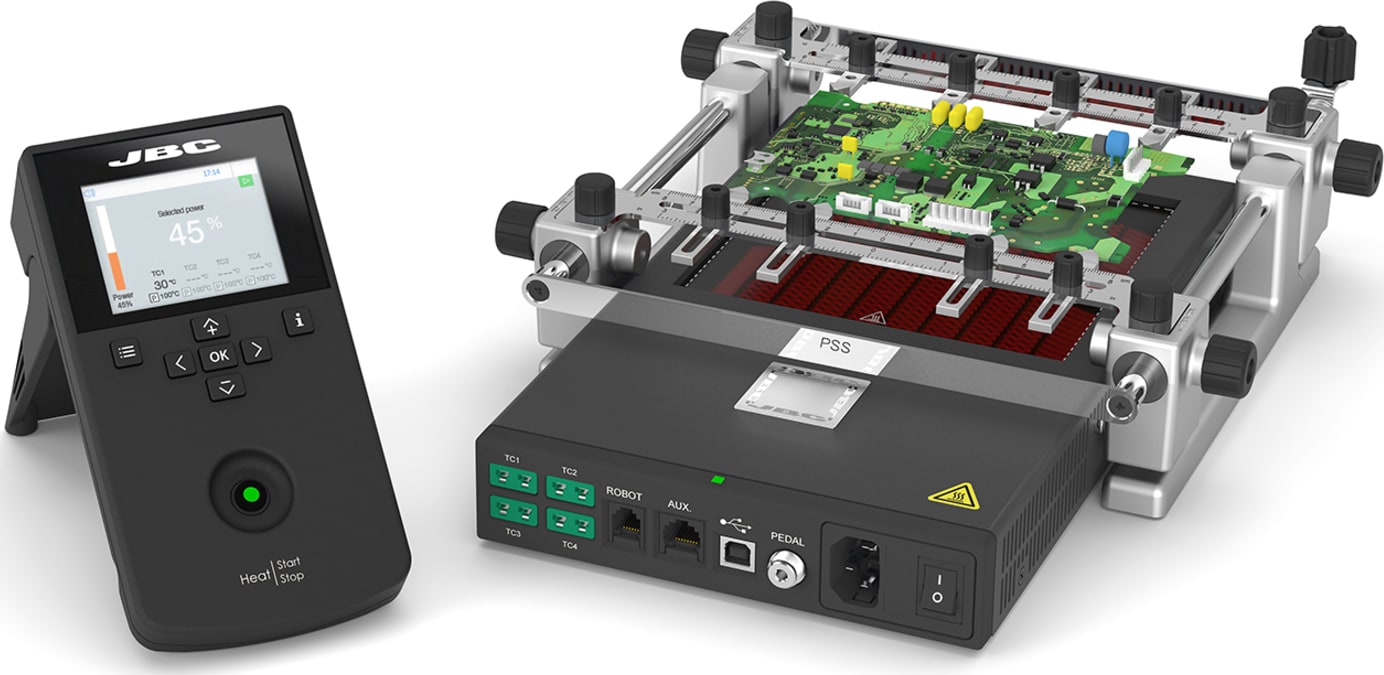

Small Preheater Set, 120V
List Price: $2,485.00
Your Price: $2,236.50
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!
The PHSK Small Preheater Set is the best solution for rework on small / medium PCBAs. It features a heating area of 130 mm x 135 mm / 5.12" x 5.31" and four TC connections, offering matchless reliability in temperature accuracy and control so that no component is damaged.
The JBC PHSK offers three unique work modes - temperature, power and profile. Up to four thermocouples can be connected in any of the three work modes.
Temperature Mode keeps the PCBA at a selected temperature, using the regulation thermocouple and, optionally, protection thermocouples.
Power Mode maintains the selected power as long as the thermocouples do not reach the control/protection temperature limit.
allows control of the heating rate of the PCBA by the use of a control and protection thermocouple, without exceeding the recommended limit levels in each application. It features 22 customizable profiles.
The preheater also comes with three built in profiles, pre-named as A, B and C. The difference between them is the number of steps: 2, 3 or 4. The thicker your PCB is and the more layers it contains, the more steps are needed to obtain a gradual warming.
These profiles are not modifiable but can be used as a template to create your own profiles.
FR4 1.6 mm thick and 2 layers
FR4 1.6 mm thick and 6 layers
FR4 2.2 mm thick and 6 layers
This set also include a height adjustable PCB support, enabling users to change the distance between the pre-heater and their PCB.
