0 reviews | Catalog: PHSE-1A | Model: JBC PHSE-1A
IR Preheater 120V
List Price: $1,420.00
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!

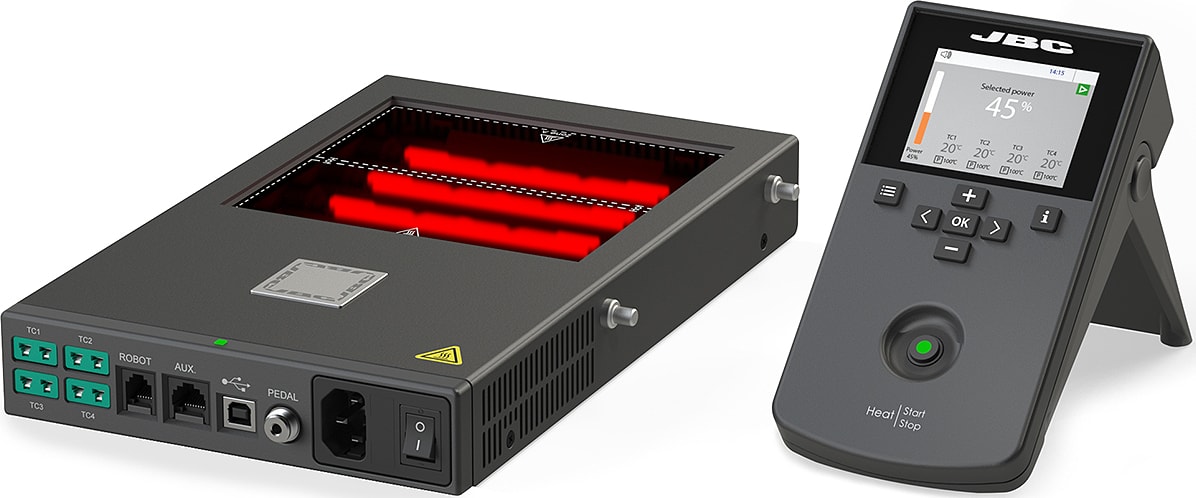

The PHSE is an infrared preheater with three work modes:

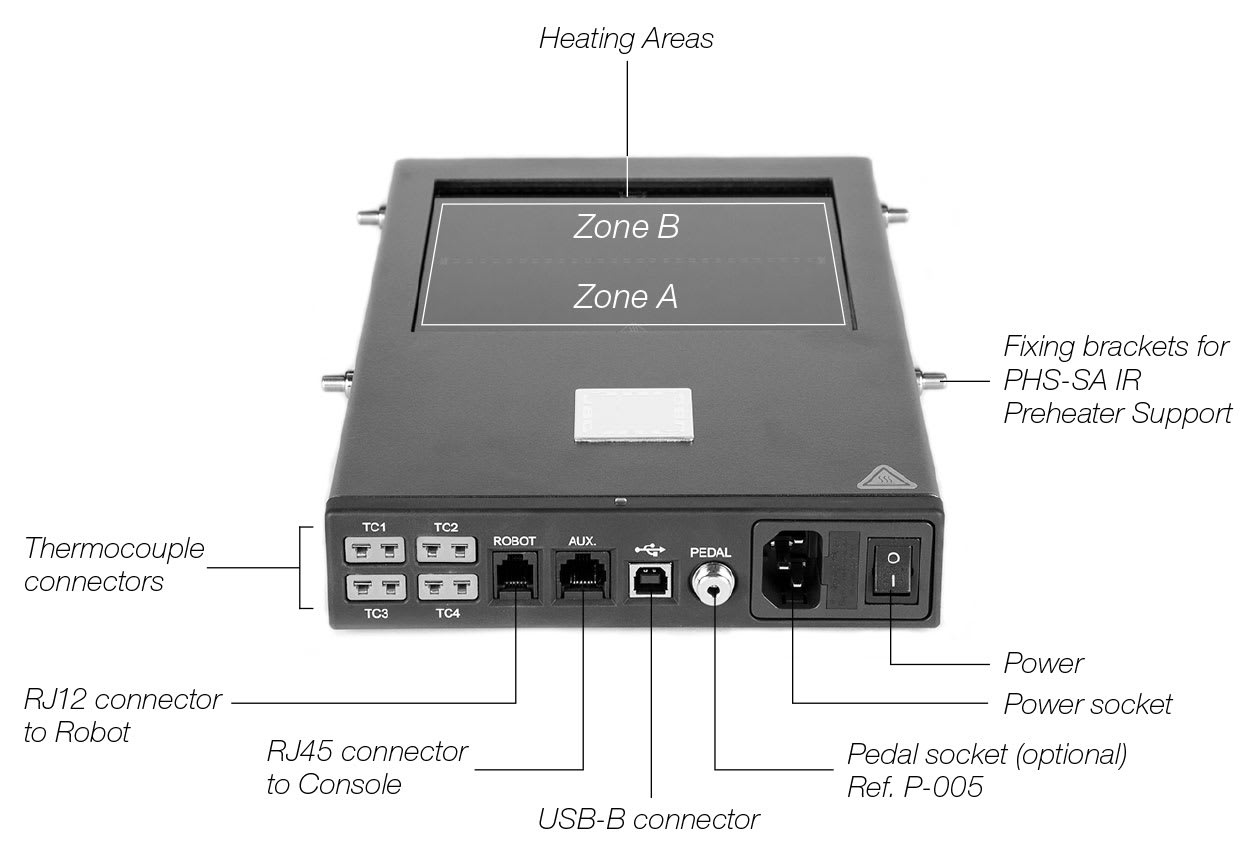

Up to four thermocouples can be connected which enable the operator to work in any of the three work modes. The PHSE has two independent work zones which define a heating area of 2.56 x 5.31 or 5.12 x 5.31 inches. With the JBCSuite software program, the preheater can be synchronized with other JBC hot-air, soldering as well as fume extractor equipment in order for them to work jointly and to perform your rework process optimally.

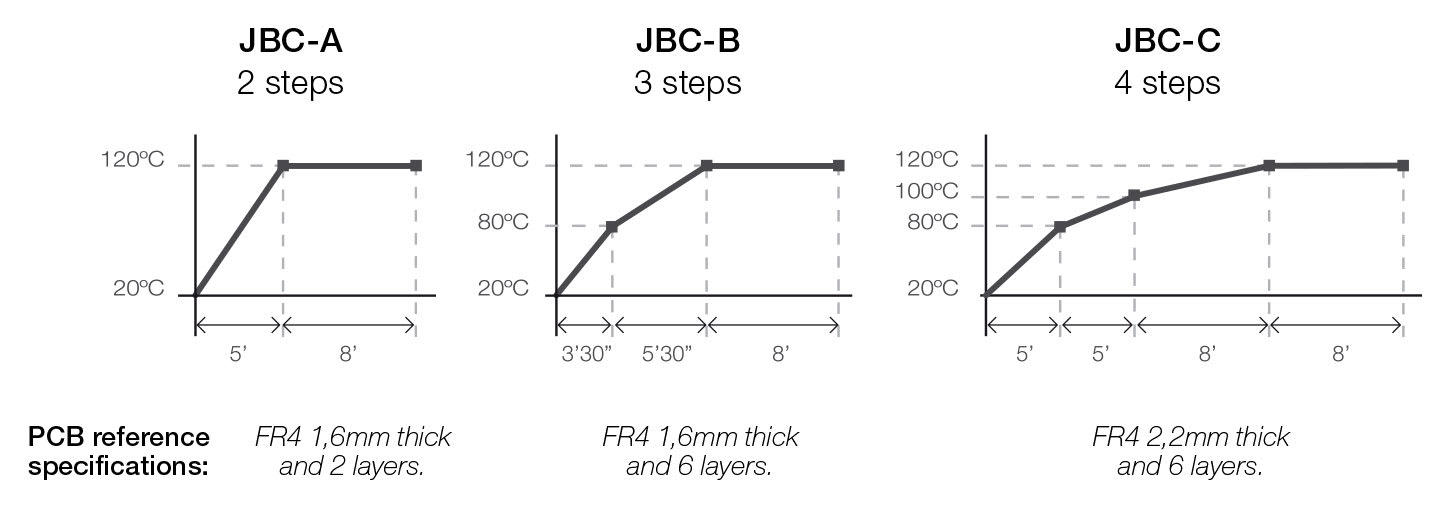

There are 3 profiles predefined by JBC: A, B and C. The difference between them is the number of steps: 2, 3 or 4. The thicker your PCB is and the more layers it contains, the more steps are needed to obtain a gradual warming. These profiles are not modifiable but can be used as a template to create your own profiles.
