• 230-VOLT VERSION - NOT FOR USE IN THE UNITED STATES
• For users in the US, please see PHNE-1A
• Ideal for rework on small PCBs
• Reduces the risk of thermal shock while reworking
• Matchless reliability in temperature accuracy and control of the PCBA so that no component is damaged

The JBC PHNE-2A Nano preheater set is the best solution for rework on small circuits, featuring a heating area of 4.25 x 2.75 inches. It reduces the risk of thermal shock while reworking and offers matches reliability in temperature accuracy so that no component is damaged.

The preheater contains two thermocouple connections and is easily operated by the included console.

Please note, the PHNE-2A is a 230-volt version and not for use in the United States. If you are in the US, please see PHNE-1A.

The PHNE-2A features three work modes:

In this mode, the heater unit maintains the selected power as long as the thermocouples do not reach the control/protection temperature limit.

In this mode, the heater unit maintains the selected temperature for the TC1 thermocouple as long as the other TCs do not reach the control/protection temperature limit.

In this mode the heater unit regulates the temperature of the TC1 thermocouple according to the selected profile as long as the other TCs do not reach the control/protection temperature limit.

The Profile editor can be opened from the main menu or from the Profiles mode work screen. In this mode, you can edit as many as 25 profiles of temperature.

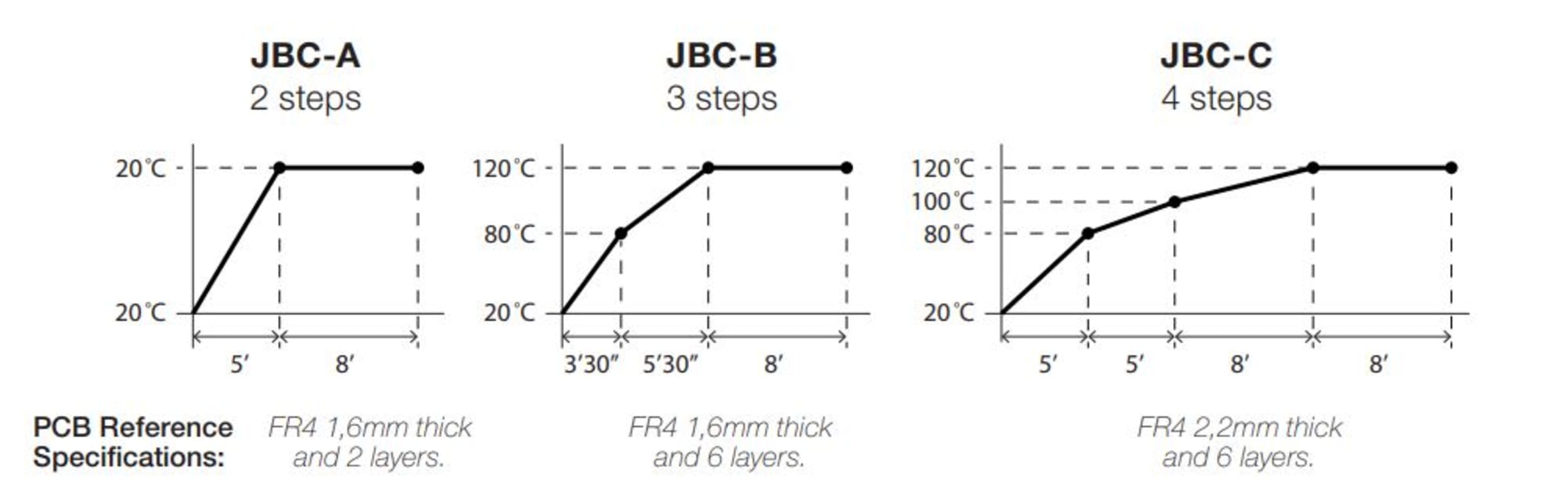

There are 3 profiles predefined by JBC: A, B and C. The difference between them is the number of steps: 2, 3 or 4. The thicker your PCB is and the more layers it contains, the more steps are needed to obtain gradual warming.

These profiles are not modifiable but can be used as a template to create your own profiles.
