JBC ND27S6 - 27G Stainless Steel Dispensing Needle

0 reviews | Catalog: ND27S6 | UPC: 8427327501133 | Model: JBC ND27S6

Compare

27G Stainless Steel Needles

Recommended for solder paste Type 5
Supplied in boxes of 10 units

View Product Details

List Price: $8.00

Your Price: $7.20

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	JBC ND27S6 27G Stainless Steel Needles	JBC ND-KS Set Dispenser Steel Needles	JBC ND18S6 18G Stainless Steel Needles	JBC ND20S6 20G Stainless Steel Needles	JBC ND21S6 21G Stainless Steel Needles	JBC ND22S6 22G Stainless Steel Needles	JBC ND23S6 23G Stainless Steel Needles	JBC ND25S6 25G Stainless Steel Needles	JBC ND30S6 30G Stainless Steel Needles	JBC ND-KP Tapered Tips Set Case	JBC ND18P 18GA Tapered Tips	JBC ND20P 20GA Tapered Tips	JBC ND22P 22GA Tapered Tips	JBC ND25P 25GA Tapered Tips	JBC ND27P 27GA Tapered Tips
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

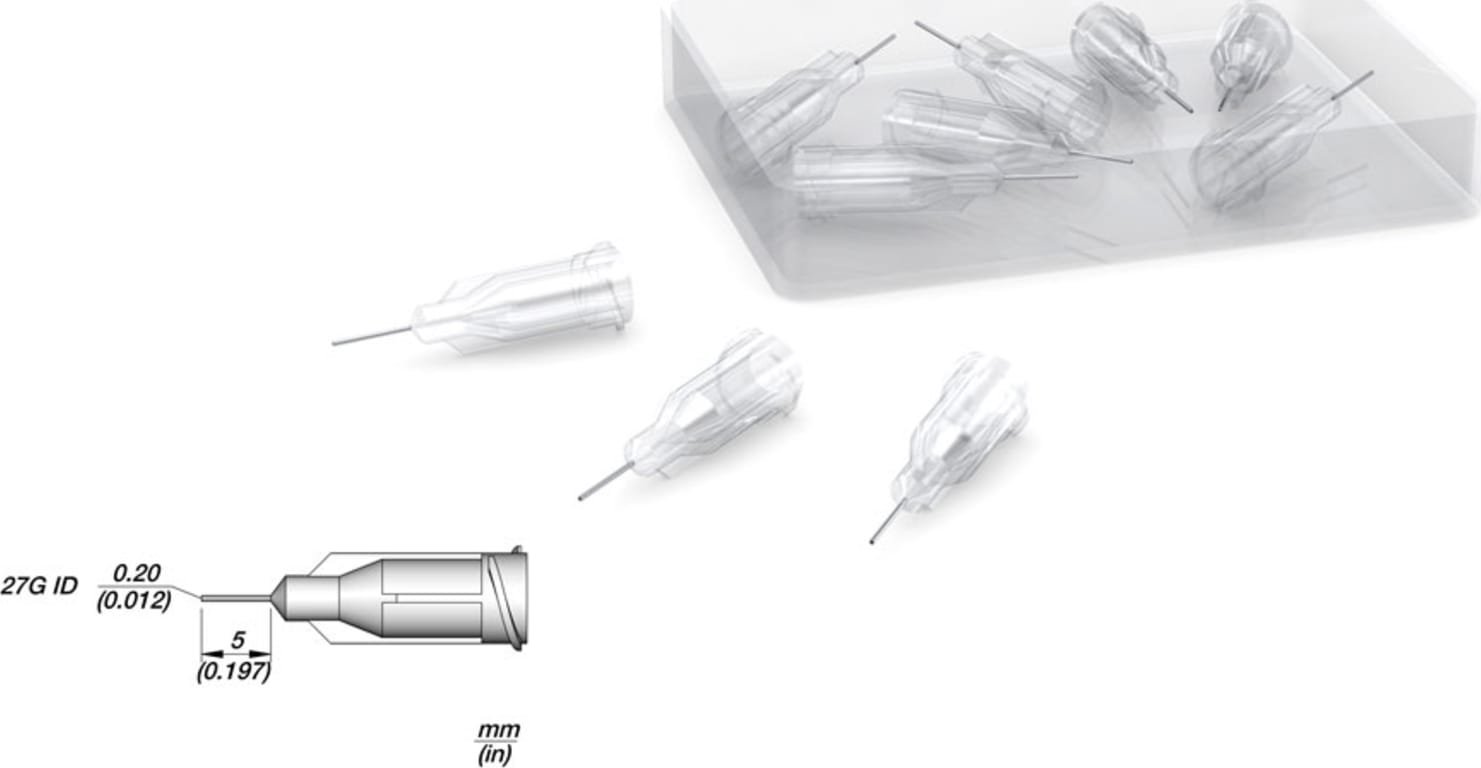

JBC ND27S6 - 27G Stainless Steel Dispensing Needle

JBC offers several varieties of stainless steel needles and tapered tips. The charts below provide an overview of part numbers and additional information for both types.

There are also variety packs for each type - ND-KS is the stainless steel needle package, ND-KP is the tapered tip package.

Stainless Steel Needles

Ref.	COLOR	SOLDER PASTE	GAUGE
ND18S6	Green	Type 2	18
ND20S6	Pink	Type 3	20
ND21S6	Purple	Type 3	21
ND22S6	Blue	Type 3	22
ND23S6	Orange	Type 3	23
ND25S6	Plan Red	Type 4	25
ND27S6	Clear	Type 5	27
ND30S6	Lavender	Type 6	30

Tapered Tips

Ref.	COLOR	SOLDER PASTE	GAUGE
ND18P	Green	Type 2	18
ND20P	Pink	Type 3	20
ND22P	Blue	Type 3	22
ND25P	Red	Type 4	25
ND27P	Orange	Type 5	27

General Specifications
Total length	24 mm / 0.94 in
Needle Length	6 mm / 0.236 in
Inner Diameter	Gauge 27 0.20 mm / 0.008 in
Dimensions and Weight
Unit dimension	24 x 8 x 8 mm / 0.01 kg. 0.94 x 0.31 x 0.31 in / 0.02 lb.
Package	90 x 55 x 40 mm / 0.05 kg. 3.54 x 2.17 x 1.57 in / 0.11 lb.
