JBC FAE1-1B - Fume Extractor (Hoses / Nozzles Sold Separately)

0 reviews | Catalog: FAE1-1B | UPC: 094308461298 | Model: JBC FAE1-1B

Compare

Fume Extractor -1 wbench- 120V

Fume extraction system
Nozzles / hoses sold separately
Four flow rates - low, medium, high, custom
Four operation modes - automatic, continuous, pedal, RS-232 control
106 CFM flow rate
0.46 PSI maximum vacuum
55db sound level

View Product Details

List Price: $1,770.00

Your Price: $1,593.00

Sign-in for GSA Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

JBC FAE1-1B Accessories

Choose a Category

for the JBC FAE1-1B

JBC 0019101 Cap Replac.for FAE030 and FAE040

Catalog: 19101

(0)

In Stock!

Add to Cart

JBC FAE1-100 FAE1 H13 + Carbon + M5 Filter

Catalog: FAE1-100

(0)

In Stock!

Add to Cart

JBC FAE1-110 Pre-filter for FAE1 Fume Extractor

Catalog: FAE1-110

(0)

In Stock!

Add to Cart

JBC FAE010 Diameter 50 mm Flexible Hose

Catalog: FAE010

(0)

In Stock!

Add to Cart

JBC FAE020 Diameter 50 mm Flexible Arm

Catalog: FAE020

(0)

In Stock!

Add to Cart

JBC FAE030 Accessory for Stand Aspiration

Catalog: FAE030

(0)

In Stock!

Add to Cart

JBC FAE040 Acc. for Stand Aspir. + Clamp

Catalog: FAE040

(0)

In Stock!

Add to Cart

JBC FAE050 Fume Inlet Duct for Mod. Stand

Catalog: FAE050

(0)

In Stock!

Add to Cart

JBC FAE060 Fume Inlet Duct Compact St.

Catalog: FAE060

(0)

In Stock!

Add to Cart

JBC FAE070 Diameter 50 mm Flexible Arm + Clamp

Catalog: FAE070

(0)

In Stock!

Add to Cart

JBC FAE080 Rectangular Nozzle for FAE

Catalog: FAE080

(0)

In Stock!

Add to Cart

JBC FAE081 Round Nozzle for FAE

Catalog: FAE081

(0)

In Stock!

Add to Cart

JBC P-005 Pedal + Adapter Kit

Catalog: P-005

(0)

In Stock!

Add to Cart

JBC P-405 Pedal for Nano Rework Station

Catalog: P-405

(0)

In Stock!

Add to Cart

JBC FAE1-1B - Fume Extractor (Hoses / Nozzles Sold Separately)

The JBC FAE1-1B is versatile fume extraction system, offering users a high level of control and functionality. The FAE1-1B can be set up in several different configurations with multiple compatible hose and nozzles styles. Please note, hoses and nozzles are sold separately.

High level of control

The FAE1-1B enables users to customize the machine to their specific application. It is capable of four different flow rates - low, medium, high and custom.

It also offers four operation modes:

Automatic - the FAE1-1B will turn on and off automatically as soldering starts and stops. Certain stations will also require the QSC-A
Continuous - the machine is turned on and operates until it is turned off
Pedal - users can control the machine with a P-005 foot pedal
RS-232 remote control

Can be used in many configurations

The JBC FAE1-1B can be set up in a variety of different manners and is compatible with several different styles of fume extraction hoses. Please note, hoses and nozzles are sold separately.

The image below shows the different ways it is possible to configure the FAE1-1B. You can click on each part number for more information about that specific item.

Ø 50 mm Flexible Arm (Ref. FAE020 or FAE070)

Ref. FAE020
Completely flexible arm to be adjusted to your workbench (hole drilling required). Length: 0,94 m - 37 in (compressed).

Ref. FAE070
Flexible arm + clamp to fix it to the table. Length: 0,94 m - 37 in (compressed).

Ø 50 mm Flexible Hose

Ref. FAE010
Connect the Fume Extractor to Flexible Arm. Length: 1,5 m - 59 in (unfolded).

Fume Extractor

100 V / 120 V - Ref. FAE1-1A
230 V - Ref. FAE1-2A

*Stations with only a USB-B communication port require a QSC controller in order to be connected to FAE fume extractors.

See more detailed information in the next link: QSC-A

Accessory for Stand Aspiration (Ref. FAE030 or FAE040)

Ref. FAE030
Accessory for stand aspiration. Connect up to 4 stands (hole drilling required).

Ref. FAE040
Accessory for stand aspiration (up to 4 stands) + clamp to fix it to the table.

Stand Aspiration Ducts (Ref. FAE050 or FAE060)

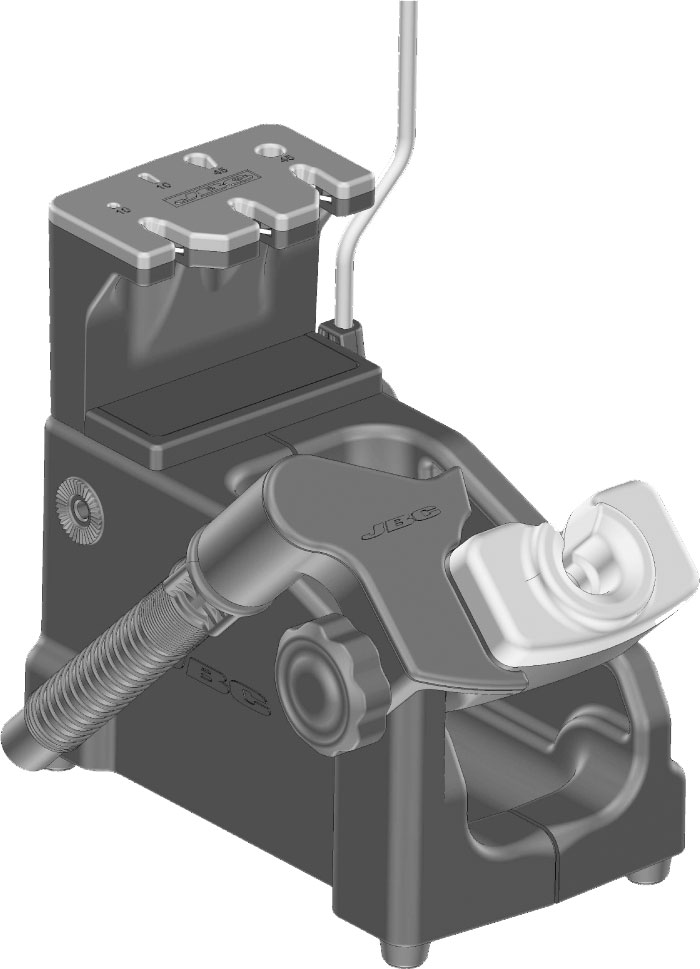

Ref. FAE050
Fume Inlet Duct for Modular Stands (SD version) Connect the Accessory for stand aspiration to stands. Length: 106 mm (4.17 in). stand-3D

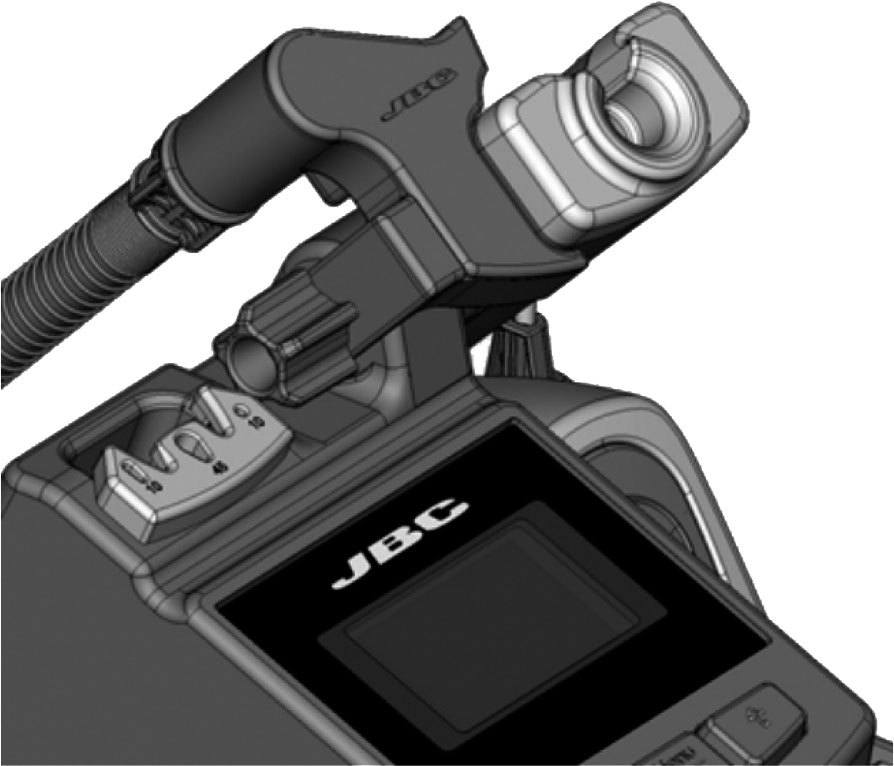

Ref. FAE060
Fume Inlet Duct for Compact stations. Connect the Accessory for stand aspiration to Compact stations. Length: 106 mm (4.17 in). conexio-compact

Specifications
Selectable parameters
Aspiration flow rate	Low / Medium / High / Custom
Operation modes	Automatic (JBC Stations) Continuous Pedal RS-232 remote control
Others
Blower type	Brushless
Max. flow rate	180m3/h (106 CFM)
Max. vacuum	3.2 KPa (0.46 psi)
Work areas	1
Noise Level	55 dB @ 1m
Filters
Pre-filter	Medium dust filter M5 (EN 779)
2 Stages Main Filter	1st stage H13 filter for solid particles (EN 1822) 2nd stage Carbon filter for gases depuration
Connectivity
USB-B	Firmware update
Station 1-4 (RJ12)	Direct connection for 4 Stations
Robot (RJ12)	RS-232 remote control
Aux (RJ45)	Peripheral expansion
Pedal	Optional tool control through Pedal P-005
ESD/EOS
ESD safe
Power supply
Peak power	110 W (120 V)
Ambient operating temp.	10 to 40 °C / 50 to 104 °F
Dimensions and weight
Unit	380 x 340 x 475 mm / 10.50 kg. 14.96 x 13.39 x 18.70 in / 23.15 lb.
Package	425 x 425 x 545 mm / 12.76 kg. 16.73 x 16.73 x 21.46 in / 28.12 lb.

Test Equipment General Attributes
HTS/Schedule B Number	85086000
Country of Origin	Spain
