JBC DMSE-2QA - DME Station with T245 and DR560 (230 VOLT VERSION)

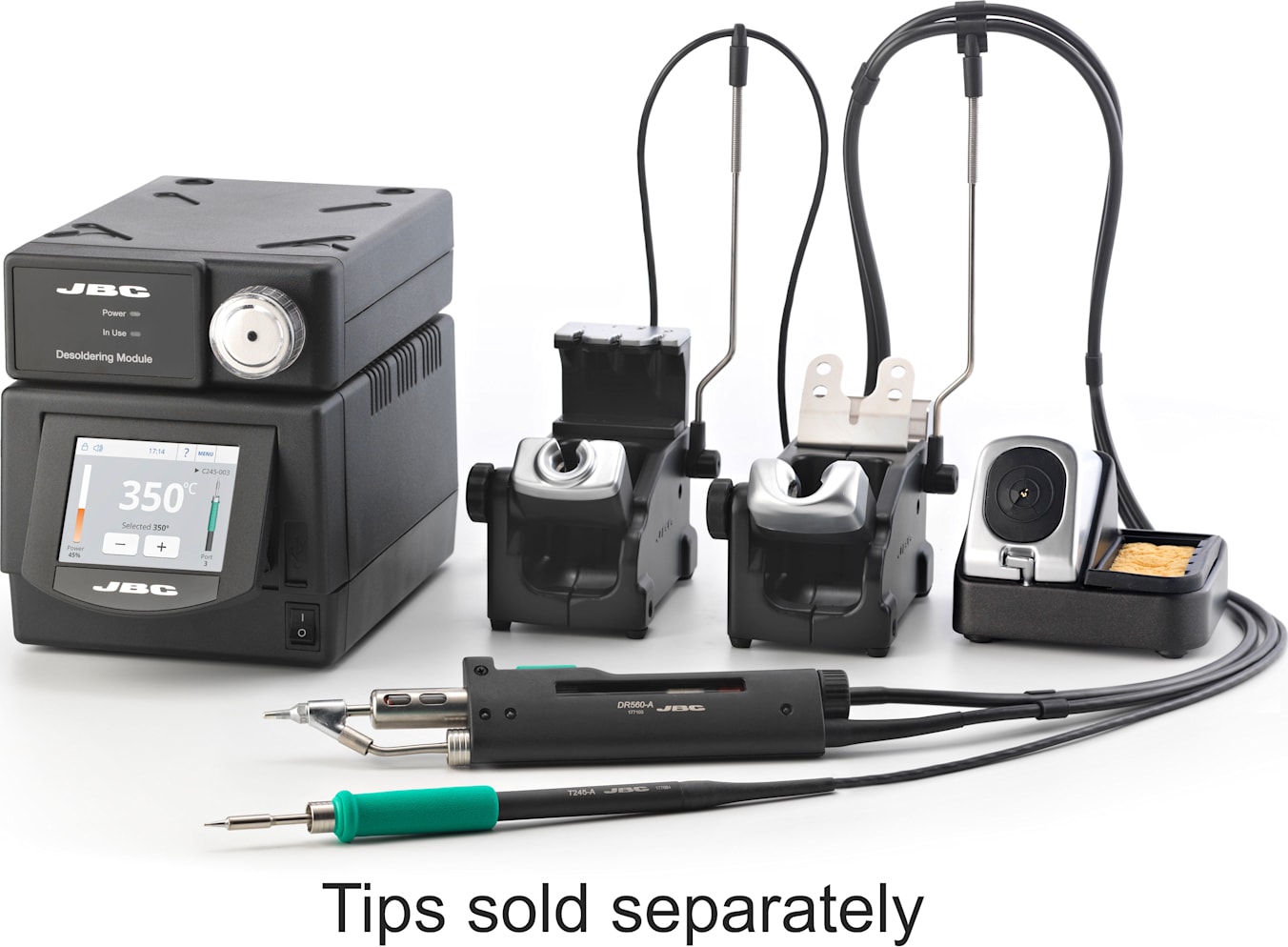

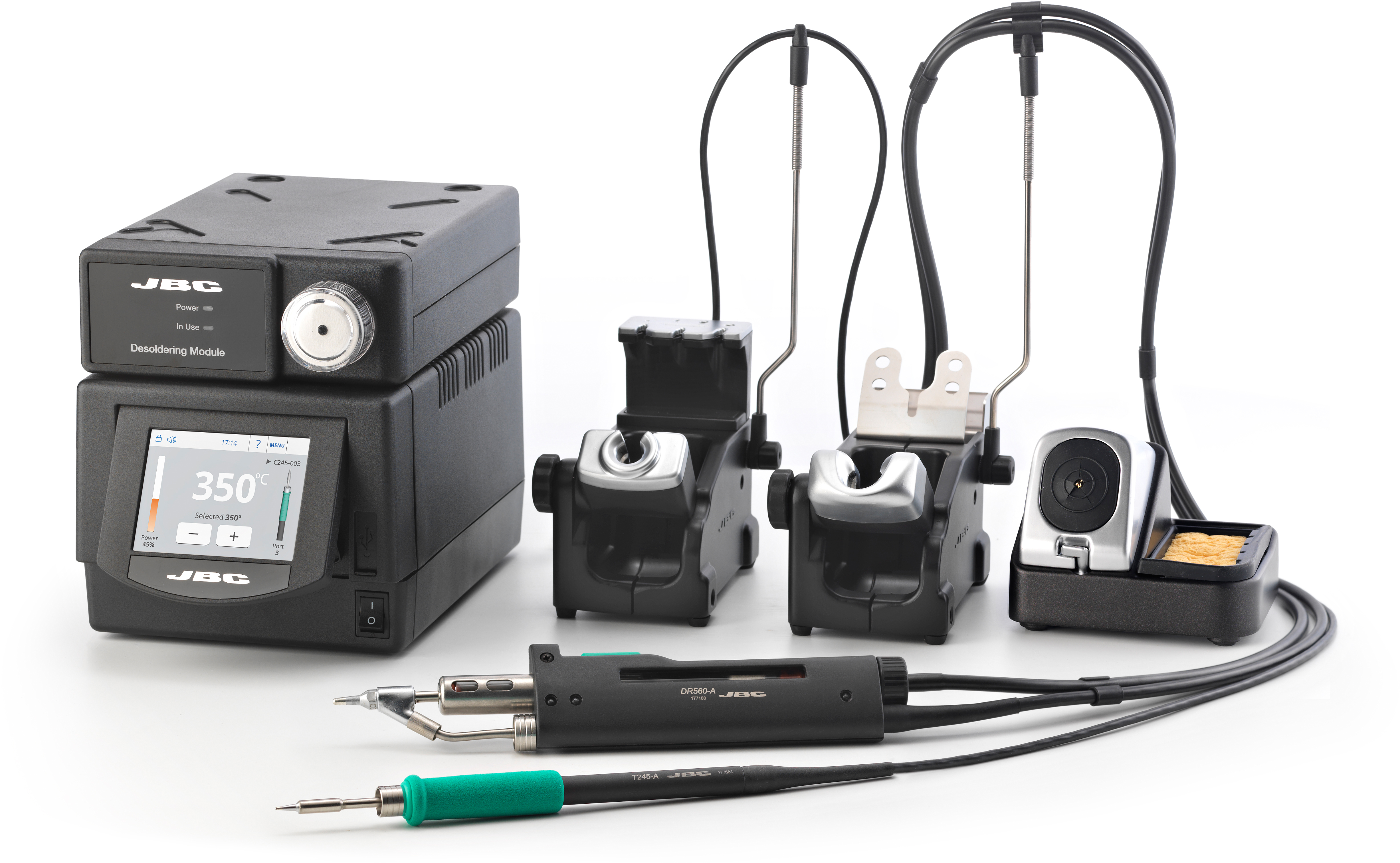

The JBC DMSE-2QA is a four channel rework system. The DMSE-2QA includes the includes the T245-A general purpose iron, DR560-A desoldering iron, as well as the MSE-A electric desoldering module. Since this system has an electric pump, the DMSE-2QA does NOT require an external source of compressed air. For a full list of included components, please see the tab labeled "What's In the Box". Please note, tips are sold separately.
Compatible Tools
The DMSE-2QA is very versatile, and can be used with a wide variety of tools. Please note, certain instruments, such as desoldering irons and solder feeders, will require additional modules to operate.
JBC Excellence Range
More functions, better quality in soldering
The incorporation of the new functions and the possibility to modify more parameters means you can get the best quality results in the soldering joints with graphics in real time, partial counters, tool port monitoring... |
From customizing to total control
Our soldering and rework equipment has a great capacity to suit your needs.
You can manage and monitor groups of stations remotely thanks to their multiple connections: USB, LAN, Robot and peripheral modules.
It can also store settings which can be easily exported. |
The best support to your work
Use our innovative applications to complement your work such as the microscope, file storage, unit converter, calculator, video and even a station help to assist you at anytime. |
Touch Sensitive Screen
This station is a JBC Excellence range product, offering benefits such as station customization, full control of soldering processes and remote work management. Everything can be accessed through the intuitive, 3.5 inch color touch screen.
The Most Efficient Soldering System
The system recovers tip temperature extremely quickly. This increases work efficiency and lowers the soldering temperature.
JBC heating system principles
- The compact element optimizes heat transfer by reducing the thermal barriers.
- The fully integrated thermal sensor to the heater ensures an extremely quick temperature recovery.
- The intelligent algorithm used in the heating control system increases performance
JBC system can reach 350°C (662°F) in only 2 seconds, while others need between 10 and 90 seconds. |
|
JBC, the most efficient soldering process
- This innovative technology allows a reduction of the temperature by at least 50°C.
- Lowering the temperature reduces the risk of damaging components and improves the quality of soldering and desoldering.
JBC stations only drop 20°C (68°F) where others drop as much as 70°C (158°F) |
|
The Intelligent Heat Management
Thanks to automatic detection of the tool in the stand, JBC Soldering and Rework Stations are able to make the tools entering in Sleep & Hibernation mode when not being used.
As a result, tip life lasts up to 5 times longer than with conventional systems.
Sleep Mode
Sleep mode automatically lowers tip temperature below solder melting point when the tool rests in the stand. It prevents the dissolution of tips iron coating into molten solder.
Hibernation Mode
After a configurable period of tool inactivity in the stand (10 min factory default), the tool enters in Hibernation mode. It cuts off power supply making the tip to reach room temperature thus preventing oxidation and saving energy. |
|
Longer Tip life
Tip life increases exponentially by using a lower tempearture for a shorter time, as shown in the graph.
JBC tips last 5 times longer than other brands thanks to the Exclusive Heating System and the Intelligent Heat Management: Sleep & Hibernation functions. |
|
Rework components with Dynamic Soldering Profile
JBC Soldering introduces the final solution for reworking thermal shock sensitive components like MLCC capacitors: Dynamic Soldering Profiles for hand soldering tools.
Available for the upcoming new soldering stations range, this new functionality allows using dynamic profiles in order to control the temperature of the component during all the phases of the soldering process (preheating, soak, reflow), in accordance with IPC J-STD-001G Section 4.6, emulating the heating process in a reflow oven.
|
|
Now, by combining the new Dynamic Temperature Profile functionality with the most precise JBC rework tools, it is possible to reliably rework MLCC capacitors as small as 008004 and other thermal shock sensitive components individually eliminating the risk of disturbing nearby components. |
Along with JBC Net, the first smart system to optimize traceability and resources in hand soldering, JBC soldering makes possible the rework of high-reliability PCBs for industries such as Military, Aerospace, Automotive as well as Medical.
