JBC DME-1A - Four Channel Control Unit without Tools
The JBC DME-1A is a four channel soldering station with 3.5 inch touch screen. Compatible with a wide variety of tools, the DME-1A offers a peak power of 160 watts per device, and channels which can be used simultaneously.

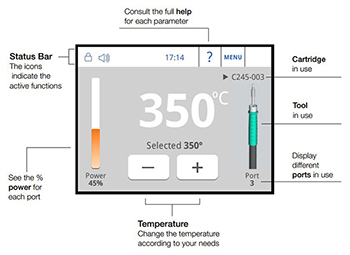

Touch Sensitive Screen

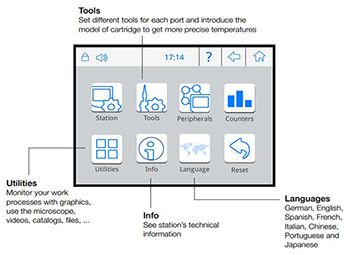

This station is a JBC Excellence range product, offering benefits such as station customization, full control of soldering processes and remote work management. Everything can be accessed through the intuitive, 3.5 inch color touch screen.
JBC Exclusive Heating System
The DME-1A utilizes the JBC exclusive heating system - tip temperature recovers extremely fast, which increases efficiency while lowering temperatures.
JBC heating system principles
- The compact element optimizes heat transfer by reducing the thermal barriers.
- The fully integrated thermal sensor to the heater ensures an extremely quick temperature recovery.
- The intelligent algorithm used in the heating control system increases performance.
JBC system can reach 350ºC (662ºF) in only 2 seconds, while others need between 10 and 90 seconds.
JBC, the most efficient soldering process
This innovative technology allows a reduction of the temperature by at least 50ºC.
Lowering the temperature reduces the risk of damaging components and improves the quality of soldering and desoldering.
JBC stations only drop 35ºC (95ºF) where others drop as much as 70ºC (158ºF)
Intelligent Sleep and Hibernation Mode
The DME-1A also features an intelligent sleep and hibernation mode. The station recognizes when tools have been placed in or removed from the stand, and raises or lowers temperature accordingly. This not only saves power, but also extends tip life.
Sleep & Hibernation functions
The Sleep function automatically reduces tip temperature to 180ºC when the iron is in the stand.
The station automatically goes into Hibernation when the set time in Sleep mode is finished. The power supply is cut off and tip remains at room temperature.
The tool must be in the stand for the Sleep & Hibernation functions to work.
Longer Tip life
Tip life increases exponentially by using a lower temperature for a shorter time, as shown in the graph.
JBC tips last 5 times longer than other brands thanks to the Exclusive Heating System and the Intelligent Heat Management: Sleep & Hibernation functions.
Compatible Tools
The DME-1A is very versatile, and can be used with a wide variety of tools. Please note, certain instruments, such as desoldering irons and solder feeders, will require additional modules to operate.
