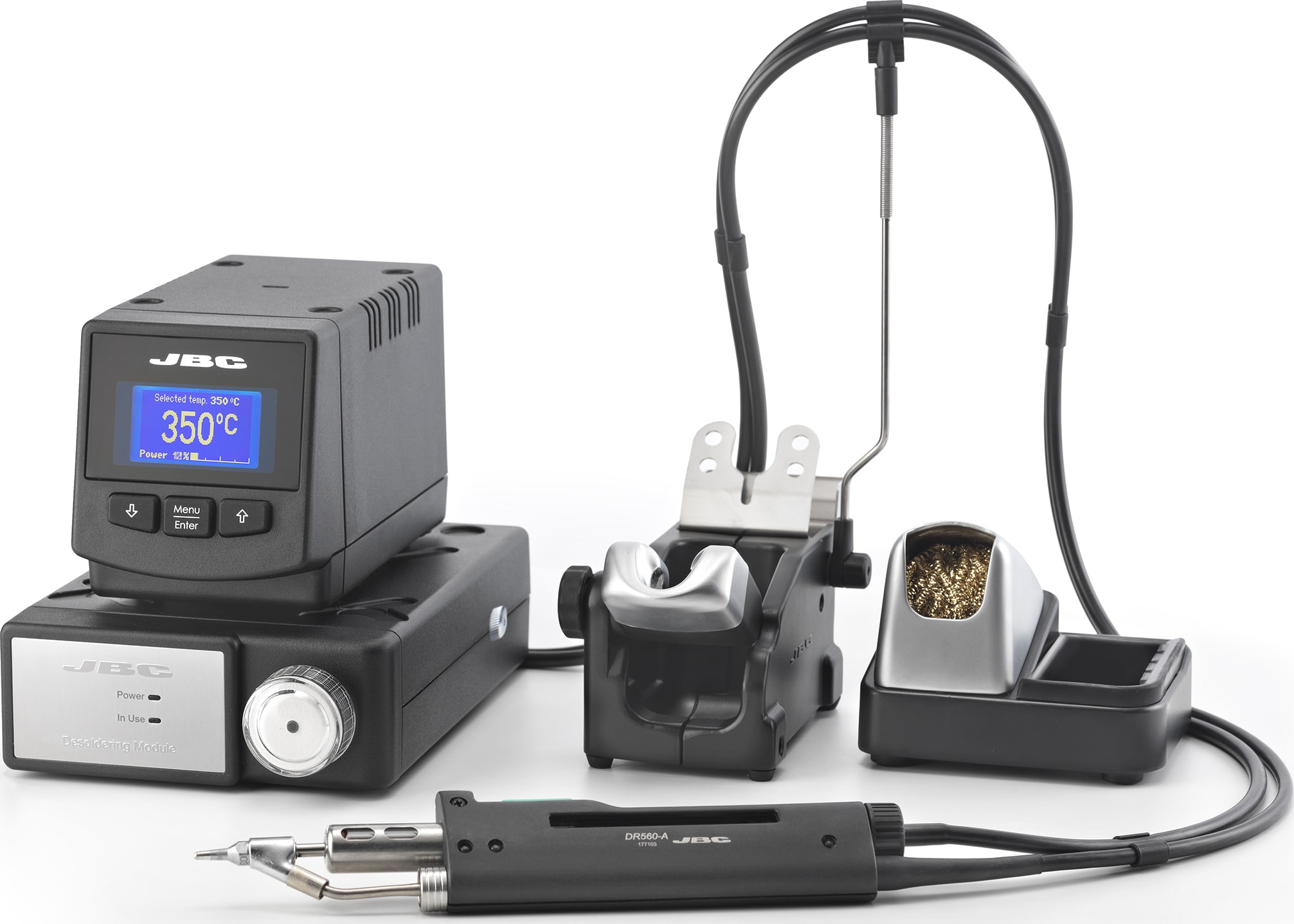

JBC DIV-2D - Desoldering Station with Pneumatic Pump (230 Volt Version)
The JBC DIV-2D enables you to desolder through hole and surface mount components with ease - the DI Control Unit and the MV Electric Suction Module guarantee a quick and safe desoldering process. This system requires an external compressed air source.
The DIV-2D works with the JBC Exclusive Heating System, and features an automatic sleep and hibernation mode to extend tip life and save power. Through the onscreen menu, users can personalize over 20 parameters to manage the soldering process, including pre-set temperatures, sleep temperature, hibernation timing and more. The DIV-2D also features a USB port for connection to a PC, so that users can create graphs, update software, and manage settings from a computer.
The DIV-2D is compatible with a variety of tools and modules, including:
- MS-A desoldering module
- MV-A desoldering module
- T210 precision handle
- T245 general purpose handle
- T470 heavy duty handle
- PA120-A micro tweezer
- HT420-A tweezer
- DS360-A micro desoldering iron
- DS560-A desoldering iron
- AP250-A solder feed iron
| Basic working system |
Peripherals |
| Control Unit |
Stand |
Tool |
Cartridge Range |
MS-A
MV-A |
MN-A |
FS500-1A
FS500-2A |
P-005 |
| DI-D |
AD-SD |
T210-A |
C210 |
|
|
● |
● |
| T245-A |
C245 |
|
|
● |
● |
| T470-A |
C245 |
|
|
● |
● |
| DN-SE |
T210-NA* |
C210 |
|
● |
|
● |
| T245-NA* |
C245 |
| T470-NA* |
| AP-SD |
AP250-A |
C250 |
|
|
● |
● |
| PA-SD |
PA120-A |
C120 |
|
|
● |
● |
| HT-SD |
HT420-A |
C420 |
|
|
● |
● |
| DS-SD |
DS360-A |
C360 |
● |
|
|
● |
| DR-SD |
DR560-A |
C560 |
● |
|
|
● |
* The
MN-A Nitrogen Flow Regulator is required.
