JBC DDSE-2B - Rework Station with Electric Pump (230 Volt Version)

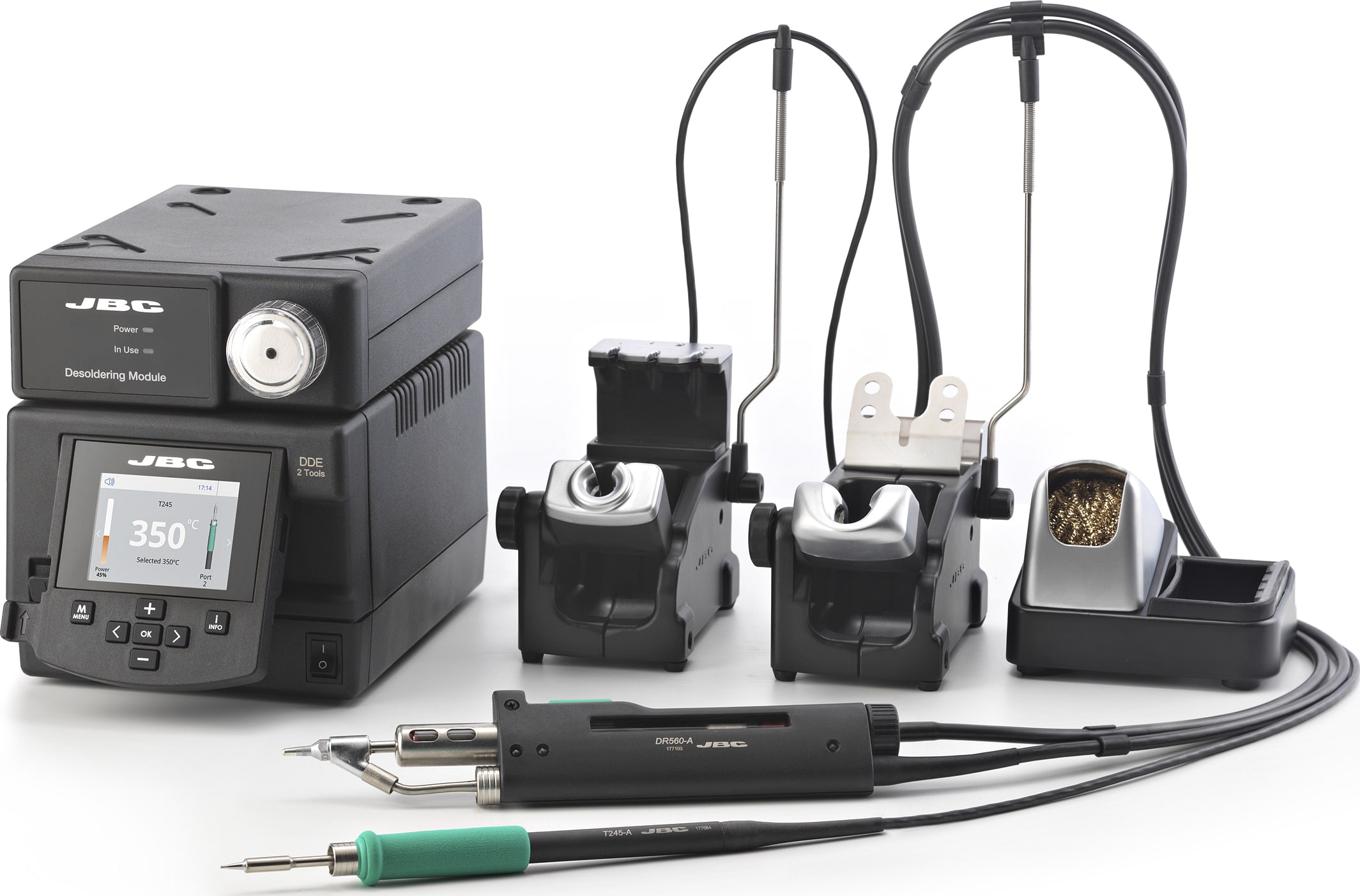

The JBC DDSE-2B is a two channel rework system. This system operates at 230 volts and is not intended for use in the United States. The DDSE-2B includes the T245-A general purpose iron, DR560-A desoldering iron, as well as the MSE-A electric desoldering module. Since this system has an electric pump, the DDSE-2B does NOT require an external source of compressed air. For a full list of included components, please see the tab labeled "What's In the Box".
JBC Exclusive Heating System
The DDSE-2B utilizes the JBC exclusive heating system - tip temperature recovers extremely fast, which increases efficiency while lowering temperatures.
JBC heating system principles
- The compact element optimizes heat transfer by reducing the thermal barriers.
- The fully integrated thermal sensor to the heater ensures an extremely quick temperature recovery.
- The intelligent algorithm used in the heating control system increases performance.
JBC system can reach 350ºC (662ºF) in only 2 seconds, while others need between 10 and 90 seconds.
JBC, the most efficient soldering process
This innovative technology allows a reduction of the temperature by at least 50ºC.
Lowering the temperature reduces the risk of damaging components and improves the quality of soldering and desoldering.
JBC stations only drop 35ºC (95ºF) where others drop as much as 70ºC (158ºF)
Intelligent Sleep and Hibernation Mode
The DDSE-2B also features an intelligent sleep and hibernation mode. The station recognizes when tools have been placed in or removed from the stand, and raises or lowers temperature accordingly. This not only saves power, but also extends tip life.
Sleep & Hibernation functions
The Sleep function automatically reduces tip temperature to 180ºC when the iron is in the stand.
The station automatically goes into Hibernation when the set time in Sleep mode is finished. The power supply is cut off and tip remains at room temperature.
The tool must be in the stand for the Sleep & Hibernation functions to work.
Longer Tip life
Tip life increases exponentially by using a lower temperature for a shorter time, as shown in the graph.
JBC tips last 5 times longer than other brands thanks to the Exclusive Heating System and the Intelligent Heat Management: Sleep & Hibernation functions.
Compatible Tools
The DDSE-2B is very versatile, and can be used with a wide variety of tools.
