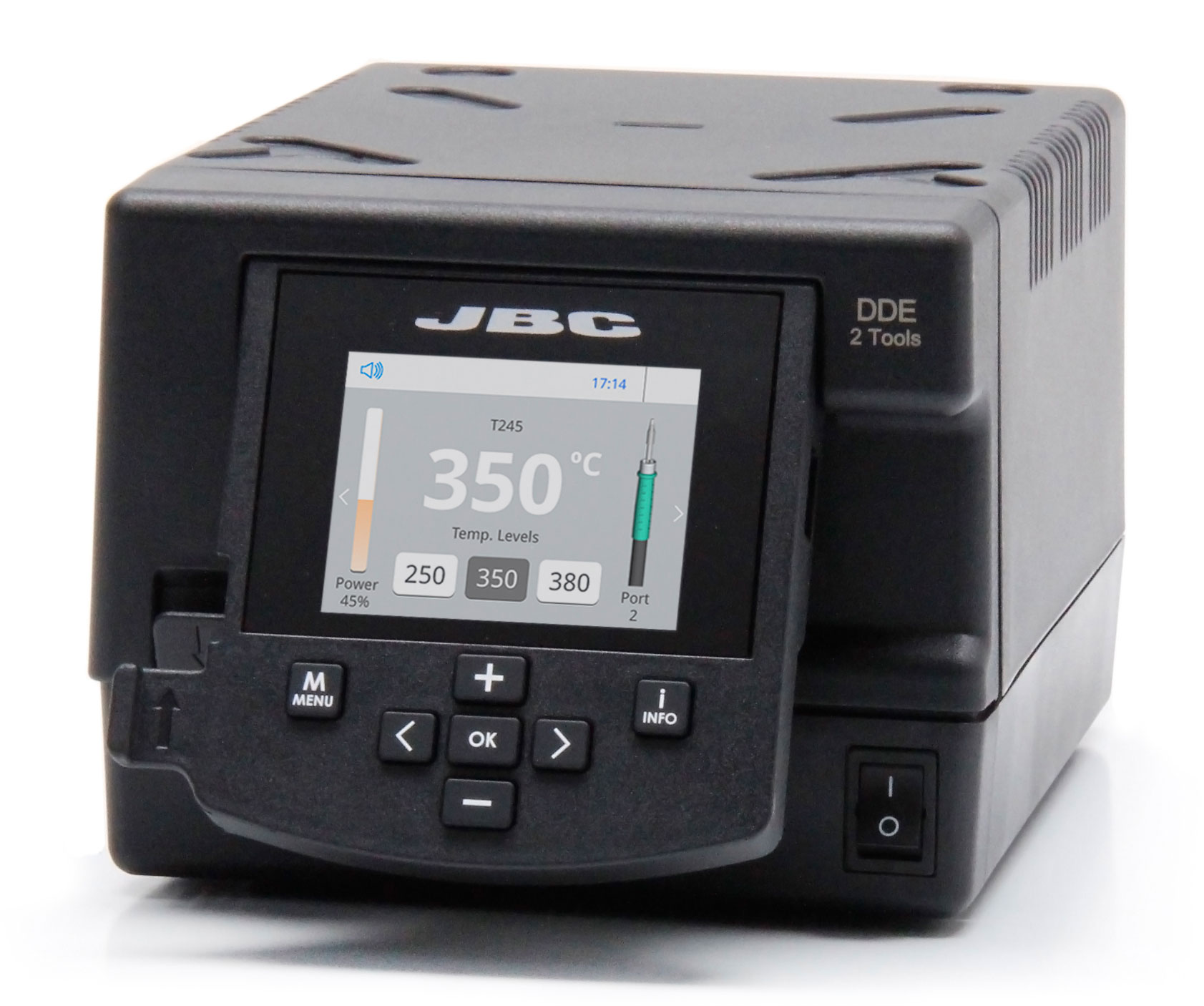

JBC DDE-1C - Two Tool Control Unit (Tools Sold Separately)
The JBC DDE-1C is a two channel soldering station. Compatible with a wide variety of tools, the DDE-1C offers a peak power of 150 watts, and channels which can be used simultaneously. This station is a JBC Excellence range product, offering benefits such as station customization, full control of soldering processes and remote work management.
The Most Efficient Soldering System
The system recovers tip temperature extremely quickly. This increases work efficiency and lowers the soldering temperature.
JBC heating system principles
- The compact element optimizes heat transfer by reducing the thermal barriers.
- The fully integrated thermal sensor to the heater ensures an extremely quick temperature recovery.
- The intelligent algorithm used in the heating control system increases performance

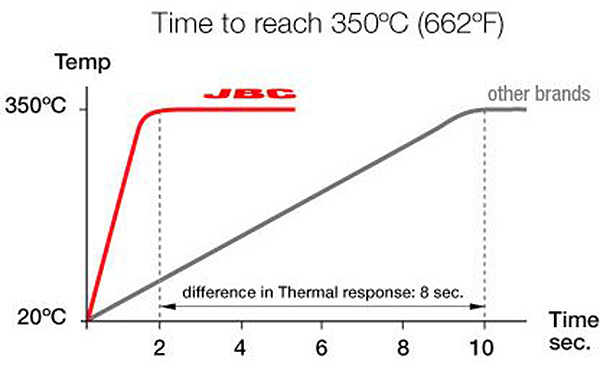

JBC system can reach 350°C (662°F) in only 2 seconds, while others need between 10 and 90 seconds. |
|

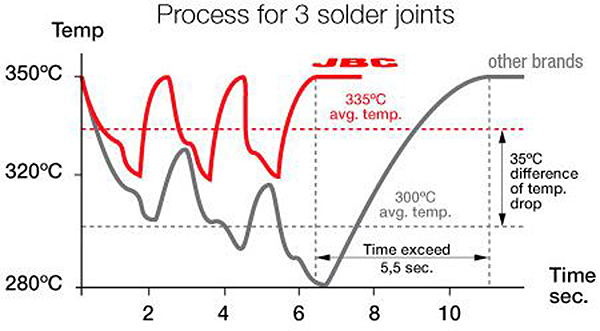

JBC, the most efficient soldering process
- This innovative technology allows a reduction of the temperature by at least 50°C.
- Lowering the temperature reduces the risk of damaging components and improves the quality of soldering and desoldering.
JBC stations only drop 20°C (68°F) where others drop as much as 70°C (158°F) |
|
The Intelligent Heat Management
Thanks to automatic detection of the tool in the stand, JBC Soldering and Rework Stations are able to make the tools entering in Sleep & Hibernation mode when not being used.
As a result, tip life lasts up to 5 times longer than with conventional systems.

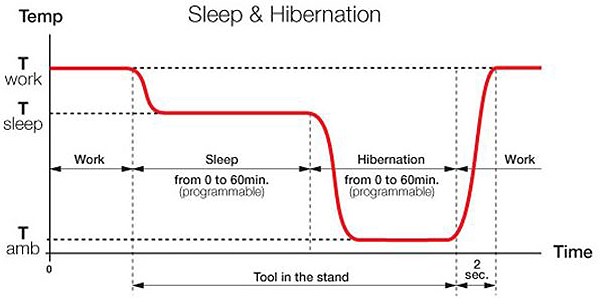

Sleep Mode
Sleep mode automatically lowers tip temperature below solder melting point when the tool rests in the stand. It prevents the dissolution of tips iron coating into molten solder.
Hibernation Mode
After a configurable period of tool inactivity in the stand (10 min factory default), the tool enters in Hibernation mode. It cuts off power supply making the tip to reach room temperature thus preventing oxidation and saving energy. |
|
Longer Tip life

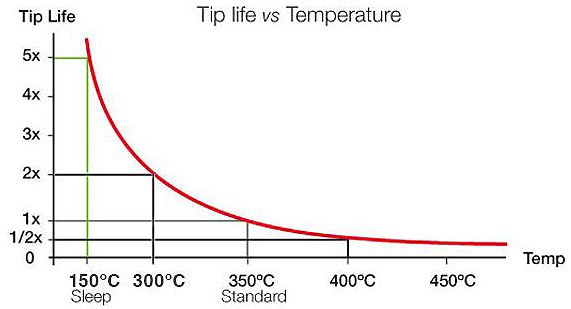

Tip life increases exponentially by using a lower tempearture for a shorter time, as shown in the graph.
JBC tips last 5 times longer than other brands thanks to the Exclusive Heating System and the Intelligent Heat Management: Sleep & Hibernation functions. |
|

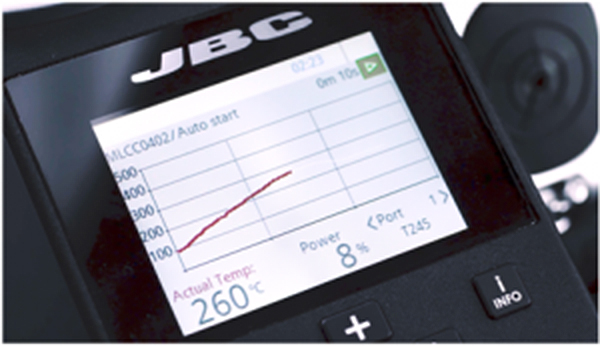

Rework components with Dynamic Soldering Profile
JBC Soldering introduces the final solution for reworking thermal shock sensitive components like MLCC capacitors: Dynamic Soldering Profiles for hand soldering tools.
Available for the upcoming new soldering stations range, this new functionality allows using dynamic profiles in order to control the temperature of the component during all the phases of the soldering process (preheating, soak, reflow), in accordance with IPC J-STD-001G Section 4.6, emulating the heating process in a reflow oven.
|
|
Now, by combining the new Dynamic Temperature Profile functionality with the most precise JBC rework tools, it is possible to reliably rework MLCC capacitors as small as 008004 and other thermal shock sensitive components individually eliminating the risk of disturbing nearby components. |
Along with JBC Net, the first smart system to optimize traceability and resources in hand soldering, JBC soldering makes possible the rework of high-reliability PCBs for industries such as Military, Aerospace, Automotive as well as Medical.
JBC Excellence Range
More functions, better quality in soldering
The incorporation of the new functions and the possibility to modify more parameters means you can get the best quality results in the soldering joints with graphics in real time, partial counters, tool port monitoring... |
From customizing to total control
Our soldering and rework equipment has a great capacity to suit your needs.
You can manage and monitor groups of stations remotely thanks to their multiple connections: USB, LAN, Robot and peripheral modules.
It can also store settings which can be easily exported. |
The best support to your work
Use our innovative applications to complement your work such as the microscope, file storage, unit converter, calculator, video and even a station help to assist you at anytime. |

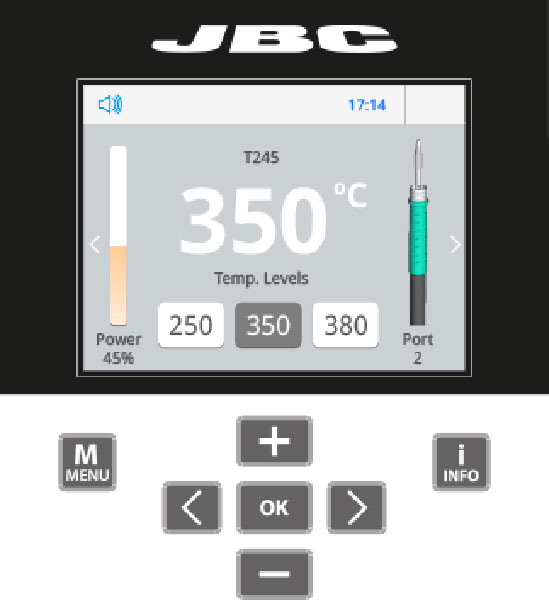

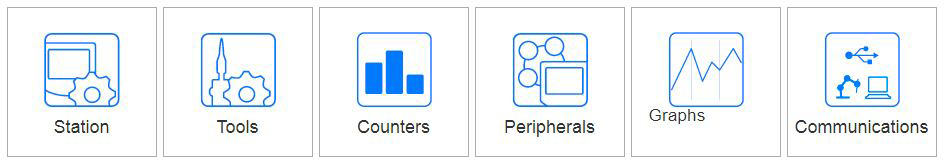

Easy-to-use Menu
The TFT Screen facilitates user interaction and its interface provides fast access to the station settings
The Intuitive Menu makes work a more comfortable process |
|
![DDE-1C-1]() |
![275_station]()

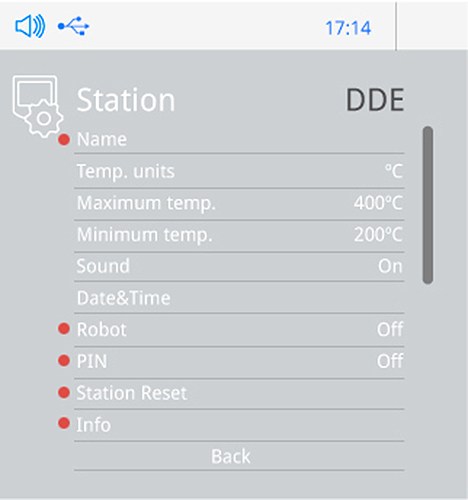

Station Configuration
Set the station parameters according to your work needs and personalize the new functions |
![275_capacitiva_station]() |
![277_tools]()

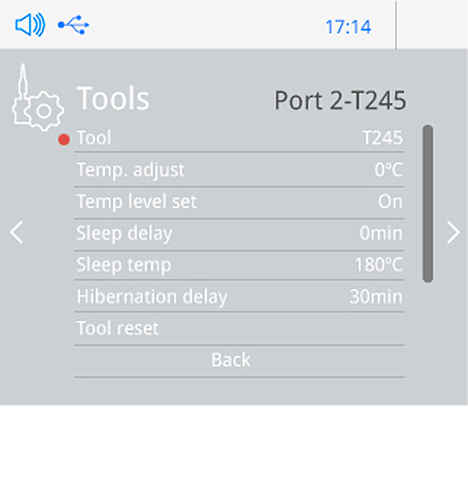

Tools Preset
Set the tool configuration.
The settings are independent for each tool type and Port |
![277_capacitiva_tools]() |
![278_counters]()

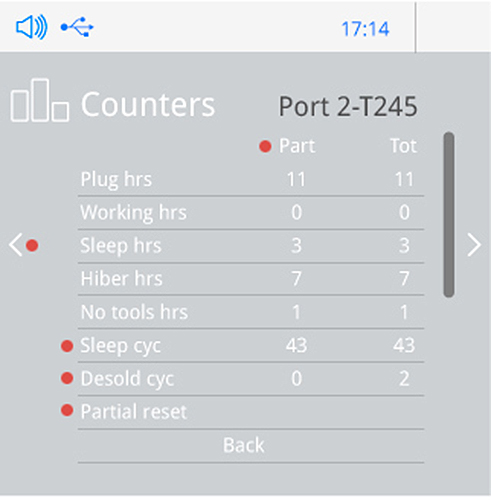

Partial Counters
Display the hours worked in each cycle |
![278_capacitiva_counters]() |
![279_graphics]()

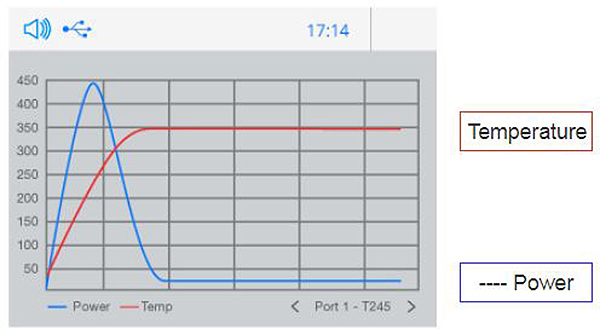

Graphics
Monitor your work with power and temperature data
in real time |
Analysis of the soldering process
It helps you select the best tip for your work and see the quality of each soldering joint |
![279_capacitiva_graphics]() |
![280_USB]()

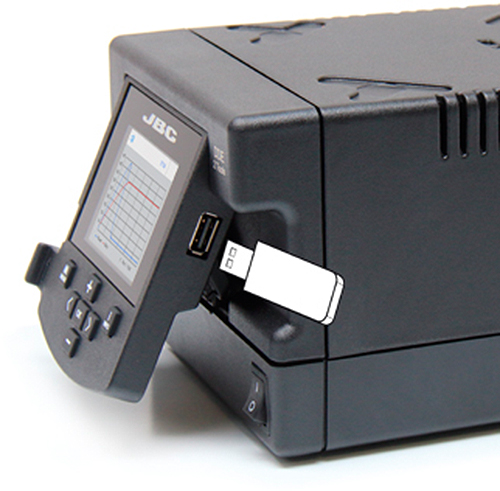

Communication Station - PC
USB-A
Software Updating
Insert a USB Flash drive with the station's latest version.
Update station software
www.jbctools.com/software.html |
![280_capacitiva_USB]() |
Export Graphics
Insert a USB flash drive into a USB-A connector before starting the graphics and data will be copied in CSV format

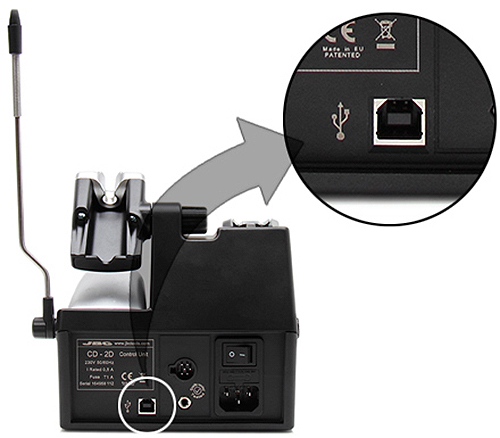

USB-B
The incorporation of a USB Connector on all stations and Control units allow you to manage your job remotely from a PC.
The most innovative technology to take your work beyond the station.
Manage and monitor parameters via PC
www.jbctools.com/manager.html |
![217_back_USB]() |
