JBC CLMU-PA - Universal Tip Cleaner (Non-Metal Brushes)

5 (1 Review) | Catalog: CLMU-PA | UPC: 8427327487970 | Model: JBC CLMU-PA

Compare

Universal Tip Cleaner Non-Metal

Universal tip cleaner with non-metal brushes
Cleans the tip in 1 second
Cleaned tips have better heat transfer capacity
Fine bristle metal brushes provide a thorough and intensive tip cleaning
Two working modes: sensor and continuous
Designed to keep work area free of foreign object debris (FOD)

View Product Details

List Price: $545.00

In Stock:

View Payment Options

Recommended for you

JBC CLMU-PA - Universal Tip Cleaner (Non-Metal Brushes)

The JBC CLMU-PA is a universal tip cleaner with non-metal brushes. The CLMU-PA cleans the tip in only 1 second, which increases its heat transfer capacity to maximize soldering quality.

For best cleaning results, it is recommended to place the tip between the two brushes for just 1 second. Longer exposure time would lead to dewetting of tip surface causing oxidation.

If excessive pressure is applied with the tool against any of the brushes, the cleaner stops automatically in order to protect the motors. Putting the tool out of the sensor detection area automatically reactivates the cleaner.

Specifications CLMU-PA
Selectable Parameters
Operating modes	Proximity Sensor mode / Continuous mode
Special Features
Fast, thorough and gentle tip cleaning	The 50 mm (1.97") diameter brushes (available with metal or plastic bristles) thoroughly clean the soldering tip in just 1 second increasing its heat transfer capacity.
Silent operation	Thanks to the brushless motors driving the cleaning brushes, the CLMU operation is extremely silent.
High capacity solder collector tray	The high solder residue capacity tray allows extending maintenance intervals increasing the productivity.
Vertical position	The cleaning unit allows vertical position for ergonomic use of the cleaner when working in a standing position.
Connectivity

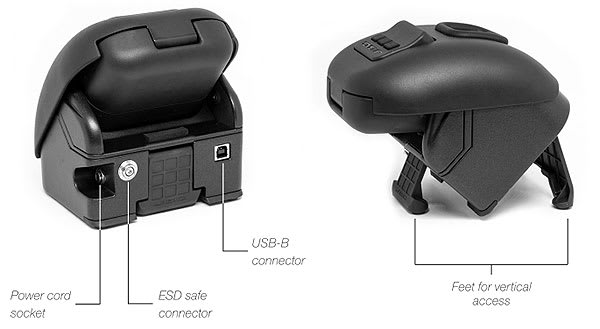

USB-B	PC connectivity for traceability purposes / Firmware update
Equipotential bonding
ESD/EOS
ESD safe
Power Supply
Voltage (AC)	100 V to 240 V
Ambient operating temp.	10 to 40 ºC / 50 to 104 ºF
Dimensions and Weight
Cleaning unit with brushes	128 x 131 x 137 mm / 2.1 kg 5.0 x 5.2 x 5.4 in / 4.63 lb
Package	213 x 220 x 160 mm / 2.6 kg 8.4 x 8.7 x 6.3 in / 5.73 lb

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

Recommend to a Friend

Necessary Companion to Solder Workstation

5.0

Regardless of whose soldering equipment you own, this tip cleaner is almost essential at a solder station. Fast. Perfect. I tried going a few months without one when Covid shut things down and it was not the same experience. This system improves the soldering process tremendously. If not to extend the lifetime of your tip purchase one for your time and sanity.

C Davis on Apr 19, 2021
