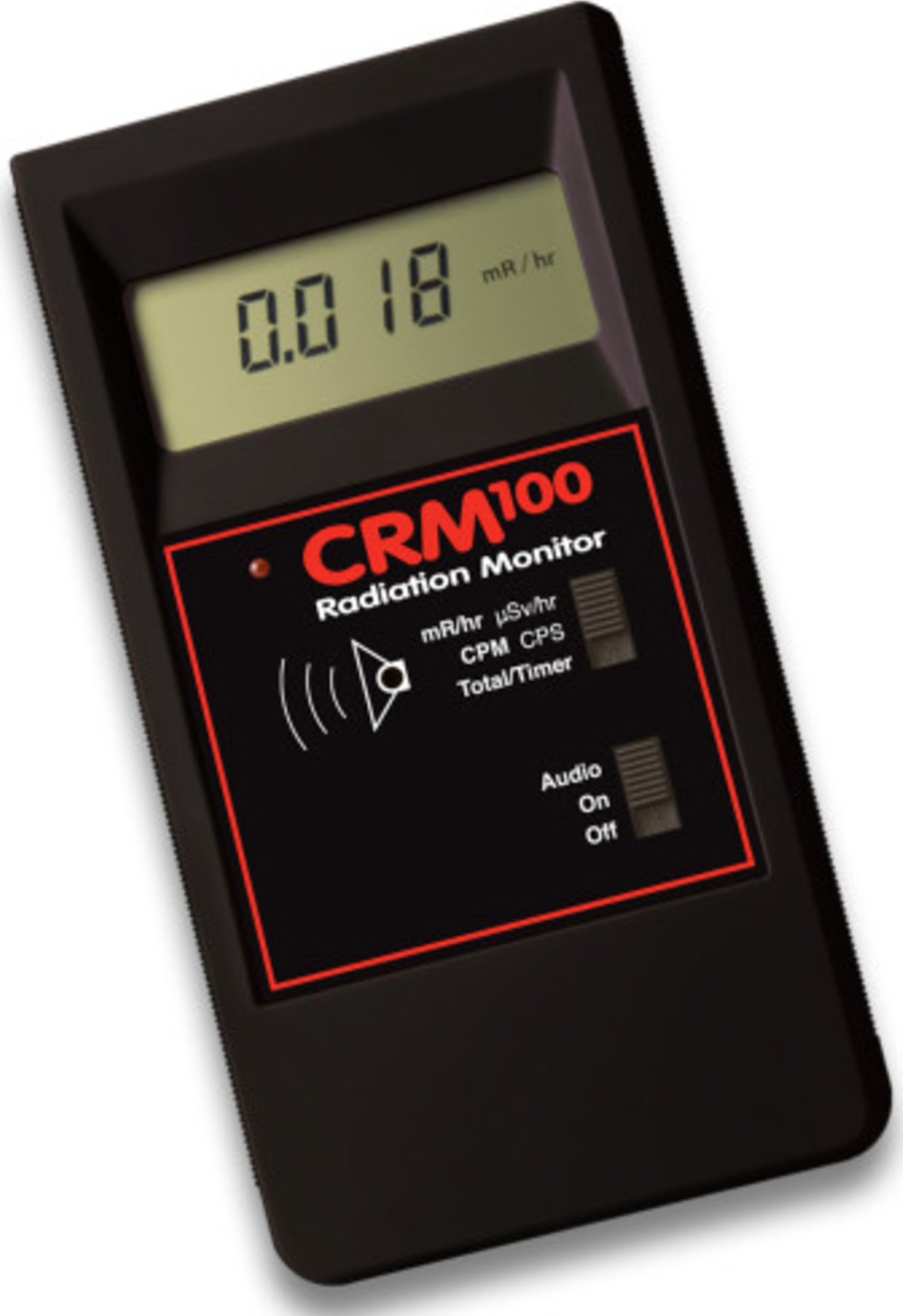

| Medcom CRM 100 Specifications |
| Sensor |
- Halogen-quenched Geiger-Mueller detector (LND712)
- Mica end window density is 1.5-2.0 mg/cm²
- Side wall is 0.012″ #446 stainless steel
- Detects Alpha, Beta, Gamma, and X-radiation
|
| Display |
4-digit liquid crystal display with mode indicators |
| Accuracy |
±10% typical; ±15% max. (mR/hr and µSv/hr modes) |
| Alert |
No Alert feature. If your intended application requires a user-adjustable Alert, we recommend the Radalert® 100X |
| Audio |
Beeper chirps for each count (can be muted) |
| Calibration |
Cesium 137 (gamma) |
| Certifications |
CE Certified, RoHS Compliant, and Meets WEEE standards |
| Count Light |
Red LED flashes with each count |
| Designed & Manufactured |
Designed in USA by IMI International Medcom, Inc. Manufactured in Thailand under ISO 9001:2001 & ISO 14001 Certification |
| Operating Range |
| mR/hr: .001-110 |
CPM: 0-350,000 |
| µSv/hr: .01-1,100 |
CPS: 0-3,500 |
| Total: 0-9,999,000 counts |
Timer: up to 40 hours |
|
| Total |
0-9,999,000 counts Timer: up to 40 hours |
| Options |
Computer cable and software |
| Ports |
- Output: Stereo 3.5 mm jack sends counts to computers, data loggers, other CMOS-compatible devices, and headphones
- Input: Mono 2.5 mm jack provides electronic calibration input
|
| Power |
One 9-volt alkaline battery; average battery life is 2,160 hours at normal background, 625 hours at 1 mR/hr with beeper off |
| Sensitivity |
1000 cpm/mR/hr referenced to Cs-137 |
| Size |
150 x 80 x 30 mm (5.9″ x 3.2″ x 1.2″) |
| Weight |
225 grams (8 oz) including battery |
