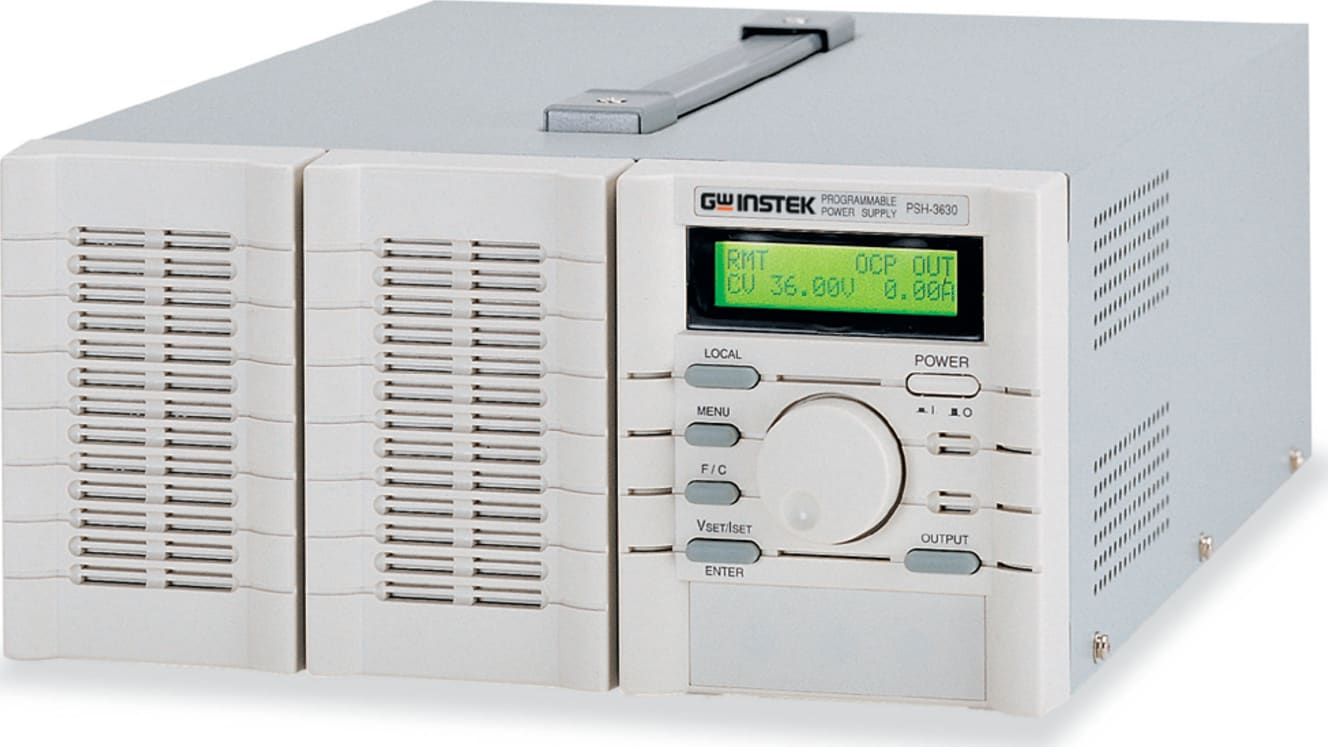

Instek PSH-3630 DC Power Supply

Name: Instek PSH-3630 DC Power Supply
Brand: Instek
SKU: InstekPSH-3630
Price: 1516.92 USD
Availability: InStock

0 reviews | Model: Instek PSH-3630

Compare

Programmable Switching DC Power Supply, 0-36V, 0-30A

Wide Input Range and High Power Factor (P.F)
High Efficiency and High Power Density
Constant Voltage and Constant Current Operation
Over-Voltage, Over-Current and Over-Heat Protection
Low Ripple and Noise
Standard: RS-232; Option: IEEE-488.2
Output ON / OFF Control
Self-Test and Software Calibration
LCD Display
Built-in Buzzer alarm

View Product Details

List Price: $1,740.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Power Supply Kits

for the Instek PSH-3630

Cal Test CT4041 Power Supply Accessory Kit ( rated for up to 20amps ) Get the most...

Catalog: CT4041

(24)

In Stock!

Add to Cart

The PSH-Series are single output from 360 to 1080W, programmable switching DC power supplies. OVP, OCP, and OTP protect the power supply and loads from unexpected conditions. Remote sensing adds an extra level of precision by compensating cable losses between loads. The bright LCD with simultaneous parameter outputs allows effortless operation. Self-test and software calibration features also reduce maintenance efforts. SCPI commands and LabVIEW driver access through the RS-232C or the optional GPIB interface allow remote control and ATE software development. Modular architecture, dedicated rear-panel output, and the 19 inch 4U rack mounting option ensure that the PSH-Series is optimized for large systems.

General Specifications
Output	10V	36A (PSH-1036)	70A (PSH-1070)	100A (PSH-10100)
	20V	18A (PSH-2018)	35A (PSH-2035)	50A (PSH-2050)
	36V	10A (PSH-3610)	20A (PSH-3620)	30A (PSH-3630)
	60V	6A (PSH-6006)	12A (PSH-6012)	18A (PSH-6018)
Regulation (CV)	Load	0.1% + 5mV	0.1% + 5mV	0.1% + 5mV
Regulation (CV)	Line	0.05% + 5mV	0.05% + 5mV	0.05% + 5mV
Regulation (CC)	Load	0.2% + 5mA	0.2% + 10mA	0.2% + 15mA
Regulation (CC)	Line	0.2% + 5mA	0.2% + 10mA	0.2% + 15mA
Ripple & Noise	Voltage (mVrms)	10 ~ 20mV	10 ~ 20mV	10 ~ 20mV
Ripple & Noise	Current (mArms)	0.2%	0.2% + 20mA	0.2% + 40mA
Resolution	Voltage < 36V	10mV	10mV	10mV
	Voltage > 36V	20mV	20mV	20mV
	Current 10V	10mA	20mA	30mA
	Current 20V	10mA	10mA	20mA
	Current 36V	10mA	10mA	10mA
	Current 60V	10mA	10mA	10mA
Program Accuracy	Voltage < 36V	0.05% + 25mV	0.05% + 25mV	0.05% + 25mV
	Voltage > 36V	0.05% + 50mV	0.05% + 50mV	0.05% + 50mV
	Current 10V	0.2% + 30mA	0.2% + 60mA	0.2% + 90mA
	Currnet 20V	0.2% + 30mA	0.2% + 30mA	0.2% + 60mA
	Current 36V	0.2% + 30mA	0.2% + 30mA	0.2% + 30mA
	Current 60V	0.2% + 30mA	0.2% + 30mA	0.2% + 30mA
Readback (METER)Resolution	Voltage	As Resolution	As Resolution	As Resolution
Readback (METER)Resolution	Current	As Resolution	As Resolution	As Resolution
Readback (METER)Accuracy	Voltage	As Program Accuracy	As Program Accuracy	As Program Accuracy
Readback (METER)Accuracy	Current	As Program Accuracy	As Program Accuracy	As Program Accuracy
Readback Temp. Coefficient	Voltage (25 + 5°C )	< 100ppm/°C	< 100ppm/°C	< 100ppm/°C
Response (Rise/Fall)Time	Voltage Up	< 150mS	< 150mS	< 150mS
Response (Rise/Fall)Time	Voltage Down	< 150mS	< 150mS	< 150mS
Recovery Time	CV Mode	< 500µS	< 500µS	< 500µS
Protection	OVP/OCP/OHP	-	-	-
Protection	Rush Current	-	-	-
Output On/Off Control		-	-	-
Display	LCD
Power Source	AC 85V ~ 250V, 50/60Hz
Accessories	Power cord x 1, Instruction Manual x 1
Dimensions & Weight		108(W) x 141(H) x 388(D)mm, 3.3kg	188(W) x 141(H) x 388(D)mm, 6.2kg	268(W) x 141(H) x 388(D)mm, 9.3kg
