Instek LCR-819R LCR Meter 12Hz-100kHz, factory installed RS-232, SPECIAL ORDER

Name: Instek LCR-819R LCR Meter 12Hz-100kHz, factory installed RS-232, SPECIAL ORDER
Brand: Instek
SKU: InstekLCR-819R
Price: 1874.36 USD
Availability: InStock

0 reviews | Model: Instek LCR-819R

Compare

LCR Meter 12Hz-100kHz; factory installed RS-232; SPECIAL ORDER

100 Setup Save/Recall Memories
R/Q, C/D, C/R, L/Q Test Modes
Absolute Value, DValue, and D% Measurement Display
Test Condition and Test Result Simultaneously Shown on Screen
12Hz~100kHz
0.05% High Measurement Accuracy
240 x 128 Dot Matrix LCD Display

View Product Details

List Price: $2,150.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Cables - Misc
LCR Test Fixtures

for the Instek LCR-819R

Instek GTL-232 RS-232 Cable, 9-Pin, F-F Type, Null Modem, 2000mm

Catalog: GTL-232

(0)

In Stock!

Add to Cart

Instek LCR-05 Test fixture Axial and Radial Leads for LCR-800 Series, LCR-6000 Series...

Catalog: LCR-05

(0)

In Stock!

Add to Cart

Instek LCR-07 Test Lead with Alligator Clip for LCR-800 Series, LCR-6000 Series or <1MHz

Catalog: LCR-07

(0)

In Stock!

Add to Cart

Instek LCR-08 Test Fixture Tweezer for SMD/Chip for LCR-800 Series, LCR-6000 Series or...

Catalog: LCR-08

(0)

In Stock!

Add to Cart

Instek LCR-09 Test Fixture for SMD/CHIP for LCR-8101G/8105G/8110G

Catalog: LCR-09

(1)

In Stock!

Add to Cart

Instek LCR-13 Test Fixture SMD/Chip Components for LCR-816/817/819/8218101G/8105G/8110G

Catalog: LCR-13

(0)

In Stock!

Add to Cart

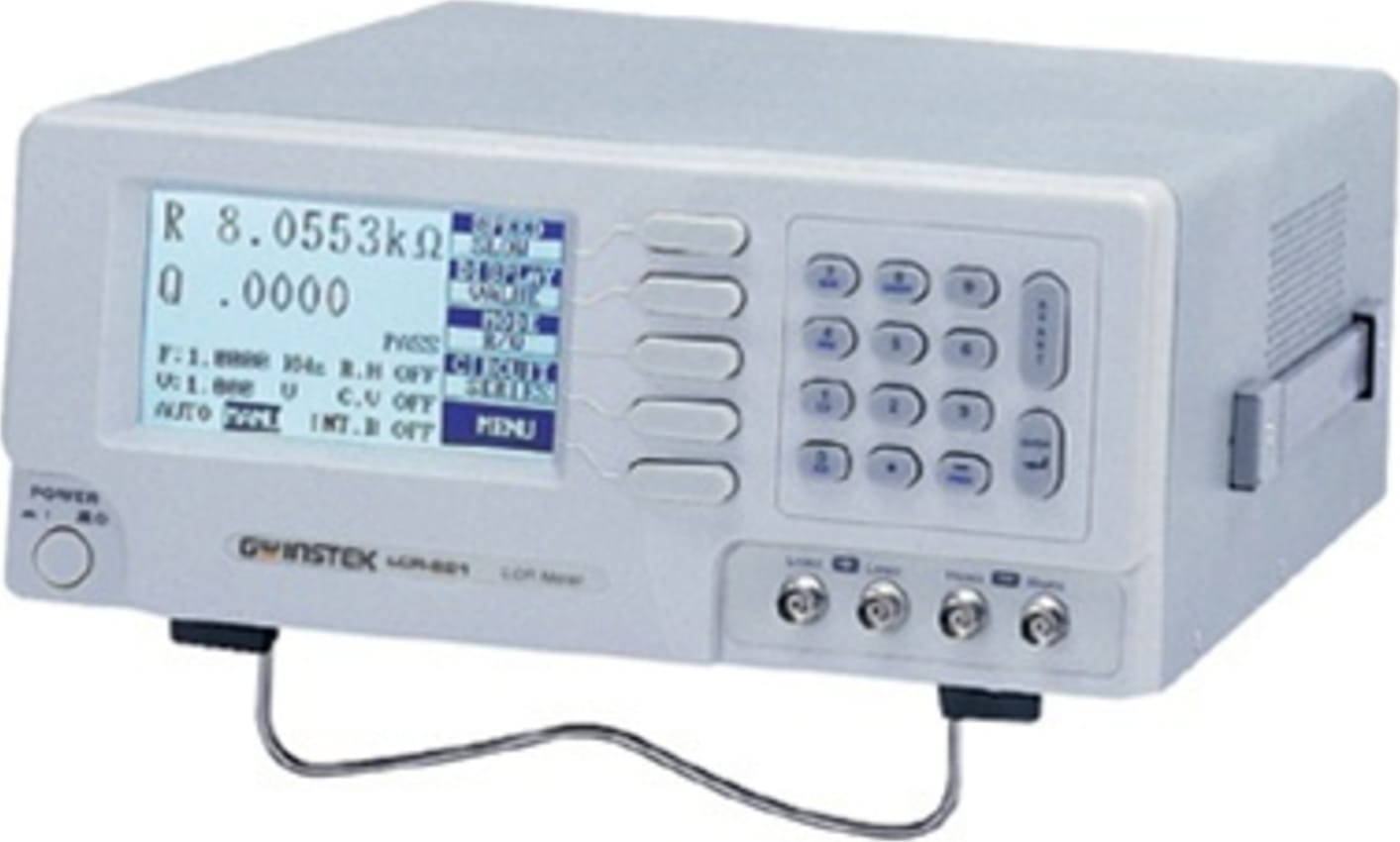

Instek LCR-819R LCR Meter 12Hz-100kHz, factory installed RS-232, SPECIAL ORDER

FEATURES

Automatic and manual measurements
Dual measurement display
Measurement in absolute values or as a deviation from a nominal value.
Precision four wire fixture
Component Sorting
Up to 30V DC external bias voltage
Internal memory
Large Dot matrix display, 240 x 128 resolution
Intuitive user interface, comprehensive measurement functions

LCR-800 Series Precision LCR Meter

The LCR-800 Series are high-end digital LCR meters for component/material measurements, applicable to various R&D activities and assembly lines. The large 240 x 128 dot matrix LCD display provides ample room for two measurement items and setup parameters, allowing you to grasp measurement results quickly. All test modes are able to measure supplementary factors, such as, R/Q, C/D, C/R, and L/Q. The LCR-821 also contains precise resistance measurements as a combination of absolute value and phase angle. 100 sets of measurement setup memory allow sharing a single unit among multiple testing conditions or sites. For a better viewing experience in a standard PC monitor, proprietary Windows based software is accessible via the RS-232C terminal. The handler interface is also a standard feature for LCR-826/827/829.

Instek LCR-800 Series Specifications
TEST FREQUENCY
	12Hz ~ 200kHz (504 steps) for LCR-821 12Hz ~ 100kHz(503 steps) for LCR-819/829 12Hz ~ 10kHz(489 steps) for LCR-817/827 100Hz ~2kHz (245 steps) for LCR-816/826
BASIC ACCURACY (*)
	0.05% for basic accuracy for LCR-821/819/817 0.1% for basic accuracy for LCR-829/827/826/816
TEST SPEED
	68ms for LCR-821/819/817/816, 34ms for LCR-829/827/826
TEST SIGNAL LEVELS
	5mV ~ 1.275Vrms ( 5mV/step ) for LCR-821/819/829/817/827 0.1V ~ 1.275Vrms ( 5mV/step )for LCR-816/826
DC BIAS
Internal	2V
External	0 ~ 35V for LCR-821; 0 ~ 30V for LCR-819/829/817/827/816/826
DISPLAY RANGE (**)
Resistance	R 0.00001Ω ~ 99999kΩ
Capacitance	C 0.00001pF ~ 99999uF
Inductance	L 0.00001mH ~ 99999H
Quality Factor	Q 0.0001 ~ 9999
Dissipation Factor	D 0.0001 ~ 9999
Impedance	\|Z\| 0.00001Ω ~ 99999kΩ for LCR-821
Phase Angle (Degree)	θ -180.00° ~ 180.00° for LCR-821
TEST MODE
	R/Q, C/D, C/R, L/Q, Z/θ, L/R for LCR-821 only
EQUIVALENT CIRCUIT
	Parallel or series selectable
MEMORY
	100 memory blocks total
AVERAGE
	1 to 255 times
AVERAGE
	1 to 255 times
TEST SPEED MODE
	SLOW, MEDIUM and FAST
DISPLAY MODE
	Value, △, △%
DISPLAY
	240 x 128 dot matrix C.C.F.L back light LCD
INTERFACE
	Standard : RS-232C for LCR-821 Standard : Handler Interface for LCR-829/827/826 Optional : RS-232C Interface for LCR-819/817/816 (Including LCR-Viewer Software for RS-232C interface)
POWER SOURCE
Line Voltage Range	100V - 240V, 47-63Hz/400Hz
DIMENSIONS & WEIGHT
	330(W) x 149(H) x 437(D)mm Approx. 5.5kg
()：Basic accuracy varies with the speed, frequency, AC signal level and impedance of the device under test. (*)：Display range refers to the range of measurement values that can be displayed on the screen. Please see the LCR-800 user manual for the effective measurement ranges.

LCR Meters / Impedance Measurement Products /LCR Meters Template
Type	Benchtop
Max Test Frequency	100 kHz
Max Capacitance	99999 uF (100.00 mF) Max Capacitance C 0.00001pF ~ 99999uF
Max Resistance	99999 K Ohms (100.00 M Ohms) Max Resistance R 0.00001O ~ 99999kO
Max Inductance	99999 H (99999000 mH) Max Inductance L 0.00001mH ~ 99999H
Measurements Parameters	Capacitance (C), Dissipation Factor (D), Impedance (Z), Inductance (L), Quality Factor (Q)
Auto Ranging	No
Graph Mode	No
Data Hold	No
In Circuit Testing	No
Test Equipment General Attributes
Unique Features	240 x 128 Dot Matrix LCD Display,R/Q, C/D, C/R, L/Q Test Modes,100 Setup Save/Recall Memories,0.05% High Measurement Accuracy,12Hz to 100kHz, 503 Continuously Variable Frequencies.
Interfaces I/O	RS-232
Product Weight	5 KILOS (11.02 LBS) Product Weight 5.5kg
Product Height	149 MM (5.87 IN)
Product Length	437 MM (17.20 IN)
Product Width	330 MM (12.99 IN)
Data Logging	No
Power Supply Voltage	240V Only
Shipping Height	9.90 IN
Shipping Length	22.15 IN
Shipping Width	17.40 IN
