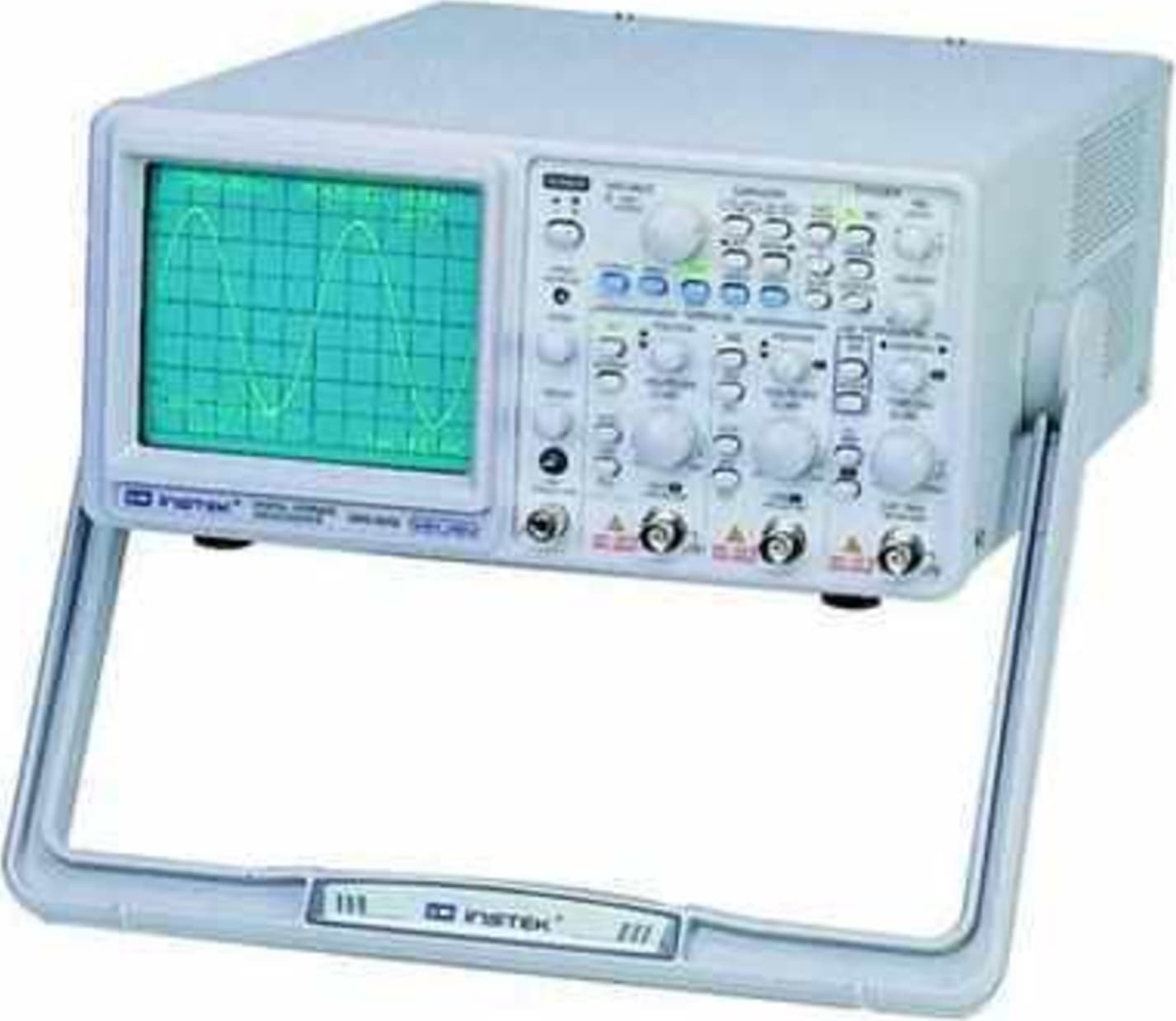

| CRT | Type | GRS-6052: 6-inch CRT 150CTB31, 10kV
GRS-6032: 6-inch CRT D14-363GY, 2kV |
| INTEN and FOCUS | Front panel control |
| Illumination | Front panel control |
| Z-axis Output | Sensitivity: at least 5V (TTL) |
| Polarity: positive going input decrease intensity |
| Max.input voltage: 30V (DC+AC peak) |
GRS-6052: Input impedance: approx. 47kΩ
GRS-6032: Input impedance: approx. 33kΩ |
|
| VERTICAL SYSTEM | Sensitivity and Accuracy | 1mV ~ 2mV/DIV±5%, 5mV ~ 20V/DIV±3%, 14 calibrated steps in 1-2-5 sequence |
| Variable Continuously | 2.5:1 ~ min. 50V/DIV |
| Bandwidth (-3dB) and Rise Time | | | | Bandwidth(-3dB) | Rise Time | | GRS-6052 | 5mV ~ 20V/DIV | DC ~ 50MHz | Approx. 7nS | | 1mV ~ 2mV/DIV | DC ~ 7MHz | Approx. 50nS | | GRS-6032 | 5mV ~ 20V/DIV | DC ~ 30MHz | Approx. 11.7nS | | 1mV ~ 2mV/DIV | DC ~ 7MHz | Approx. 50nS | |
| Vertical Mode | CH1, CH2, DUAL(ALT or CHOP) |
| Chopper Frequency | Approx. 250kHz |
| Sum or Difference | CH1+CH2, CH1-CH2 |
| Invert | CH2 |
| Input Impedance | Approx. 1MΩ±2% // approx. 25pF |
| Input Coupling | AC, DC, GND |
| Maximum Input Voltage | 400V (DC + AC peak) |
|
| HORIZONTAL SYSTEM | Sweep Time | 0.2µS/DIV ~ 0.5S/DIV, 20 steps selectable in 1-2-5 sequence |
| Variable Continuously | 2.5:1 UP TO 1.25s/DIV (uncal.) |
| Accuracy | ±3%, ±5% at x5, x10 MAG. ±8% at x20 MAG |
| Sweep Magnification | x5, x10, x20 |
| Max. Sweep Time | GRS-6052: 20nS/DIV (10nS/DIV are uncalibrated) |
| GRS-6032: 50nS/DIV (10nS/DIV ~ 40nS/DIV are uncalibrated) |
| ALT-MAG Function | YES |
| HOLD-OFF Time | Variable |
|
| TRIGGER SYSTEM | Trigger Modes | AUTO, NORM, TV |
| Trigger Source | VERT, CH1, CH2, LINE, EXT |
| Trigger Coupling | AC, HFR, LFR, TV-V(-), TV-H(-) |
| Trigger Slope | "+" or "-" polarity |
| ALT Trigger | YES |
| Trigger Sensitivity | | GRS-6052 | CH1,2 | VERT -MODE | EXT | | 20Hz ~ 5MHz | 0.5 DIV | 2.0 DIV | 200mV | | 5MHz ~ 40MHz | 1.5 DIV | 3.0 DIV | 800mV | | 40MHz ~ 50MHz | 2.0 DIV | 3.5 DIV | 1V | |
| GRS-6032 | CH1,2 | VERT -MODE | EXT | | 20Hz ~ 5MHz | 0.5 DIV | 2.0 DIV | 200mV | | 5MHz ~ 40MHz | 1.5 DIV | 3.0 DIV | 800mV | |
| TV sync pulse more than 1 DIV (CH1, CH2, VERT-MODE) or 200mV(EXT) |
| External Trigger Input | Input Impedance: Approx. 1MΩ // 25pF (AC coupling) |
| Max. input voltage: 400V (DC+AC peak) at 1kHz |
|
| X-Y OPERATION | Input | X-axis:CH1 ; Y-axis:CH2 |
| Sensitivity | 1mV/DIV ~ 20V/DIV |
| Bandwidth | X-axis: DC ~ 500kHz (-3dB) |
| Phase Difference | 3º or less from DC to 50kHz |
|
| DIGITAL STORAGE | Acquisition Memory
| 8 bit ADC x 2 |
| Maximum Sampling rate | 500MS/s for Equivalent time sampling
20MS/s for normal sampling |
| Storage Bandwidth | Single shot:DC~5MHz(-3dB)
Repetivivevent:
GRS-6052: DC~50MHz ±5DIV
GRS-6032: DC~30MHz ±5DIV |
| Dynamic Range | ±5DIV |
| Memory Length | Acquisition Memory: 2kW/CH*2, 1kW/CH(equivalent)
Save REF Memory: 1kW/CH*10 with back-up memory
Display memory: 1kW/CH*4 waveform (max.) |
| Sweep Time | Equivalent: 0.2µs/DIV~2µs/DIV
Normal: 5µs/DIV~0.1s/DIV
ROLL:0.2s/DIV~100s/DIV |
Sweep Magnification
| x5, x10, x20 |
Max. Sweep Time
| 10ns/DIV |
MAG Interpolation
| DOT, Linear |
ALT-MAG Function
| YES |
Operation Mode
| Auto, Norm, Single, Single-Roll, Roll, X-Y, Average(2~256), Run/Stop |
Smoothing Function
| Dot joint ON/OFF selectable |
Pre-Trigger
| 0~10DIV in 0.02DIV steps |
X-Y Operation
| X-axis: CH1, Y-axis: CH2
Storage Bandwidth:
GOS-6052: DC~50MHz(-3dB)
GOS-6032: DC~30MHz(-3dB) |
Display Resolution
| H:100points/DIV ; V:25 points/DIV
X-Y: 25*25 points/DIV |
Waveform SAVE/RECALL
| 10 sets (REF0~REF9) |
|
| CURSOR READOUT | Cursor Measurement
| ΔV, ΔT, 1/ΔT |
| Readout Intensity | Adjustable |
|
| OUTPUT SIGNAL |
|
|
| CH1 Signal Output | Voltage: approx. 20mV/DIV (with 50Ω terminated);
Bandwidth: 50Hz~5MHz |
| Calibrator Output | Voltage: 0.5V ±3%
Frequency: approx. 1kHz, Square wave |
|
INTERFACE
| RS-232C Interface |
|
| POWER SOURCE | AC 100V/120V/ 230V + 10%, 50/60Hz |
|
| ACCESSORIES | Power cord x 1, Instruction manual x 1, Probes(10:1/1:1) x 2 |
|
| DIMENSIONS & WEIGHT | 275(W) x 130(H) x 370(D) mm, Approx. 7.2kg |
