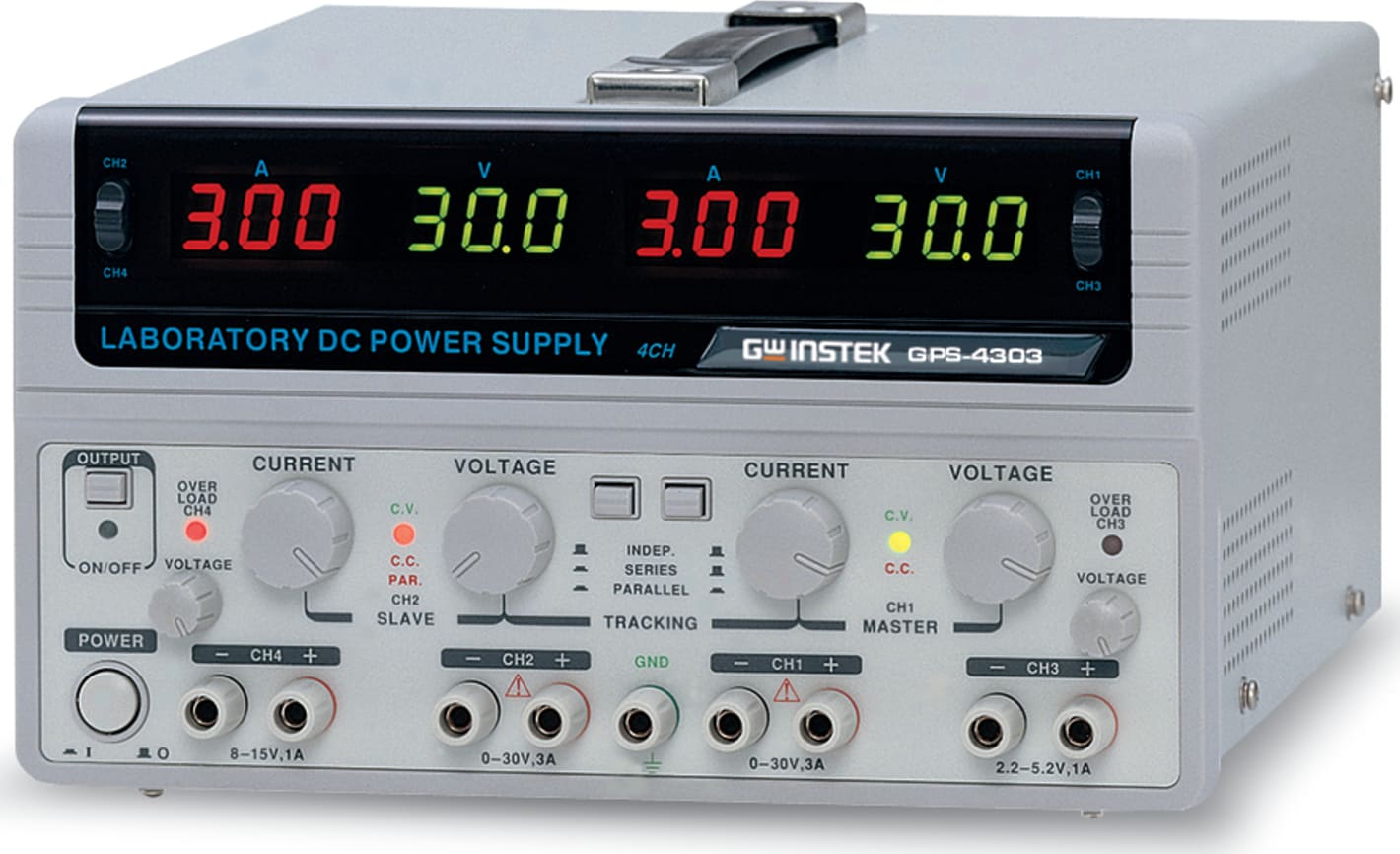

Instek GPS-4303 200W, 4-Channel, Linear D.C. Power Supply

Name: Instek GPS-4303 200W, 4-Channel, Linear D.C. Power Supply
Brand: Instek
SKU: InstekGPS-4303
Price: 424.80 USD
Availability: InStock
Rating: 4.91 (11 reviews)

5 (11 Reviews) | Model: Instek GPS-4303

Compare

0-30Vx2 ,0-3Ax2; 2.2-5.2V, 1A fixed;8-15V,1A fixed

4 Independent DC Output
Four LED Display with 3 digits, selectable for two sets output voltage and current display simultaneously
Auto Series, Parallel and Tracking Operation
Constant Voltage and Constant Current Operation
Low Ripple and Noise
Overload and Reverse Polarity Protection
Selectable for Continuous/Dynamic Load
Output Enable/Disable Control
Rotation speed of the fan is controlled by heatsink temperature

View Product Details

List Price: $472.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Instek GPS-4303

Instek GTL-105A (3A), for GPS/GPR/GPC/PPS/PPT/PST

Catalog: GTL-105A

(0)

In Stock!

Add to Cart

Instek GTL-104A (4A-10A), for GPS/GPR/GPC/PPS/PPT/PSP/PSM

Catalog: GTL-104A

(0)

In Stock!

Add to Cart

Instek GTL-201A Ground Lead GPS-X303 / PSM /GSP-Series

Catalog: GTL-201A

(0)

In Stock!

Add to Cart

Instek GTL-203A Test Lead Banana to Alligator (3A), for PSS/PST/GPD/GPS/SPS Series,...

Catalog: GTL-203A

(0)

In Stock!

Add to Cart

Instek GTL-204A Test Lead Banana to Alligator (10A), for...

Catalog: GTL-204A

(0)

In Stock!

Add to Cart

Cal Test CT4041 Power Supply Accessory Kit ( rated for up to 20amps ) Get the most...

Catalog: CT4041

(24)

In Stock!

Add to Cart

Instek GPS-4303 - 200W, 4-Channel, Linear D.C. Power Supply

The Instek GPS-4303 is an affordable high quality 4 output DC power supply. Having 4 outputs meets the increasing industry need for multiple output sources in testing and development. The blend of high accuracy, safety features, application flexibility, compact design and affordability makes the GPS-4303 the perfect power supply for nearly any user.

Steady & Clean Power
The GPS-4303 features an impressive 0.01% load and line regulation. Ripple & Noise comes in at just < 1mVrms , 5Hz ~ 1MHz under constant voltage operation. The output load is protected from accidental damage during changes through the use of the convenient on/off switch located on the front panel.

Flexible Output Range
The GPS-4303 provides users with a flexible solution to meet job requirements and still remain under budget. In addition to the tracking and auto Series/Parallel features, extend your application range up to a 60V/3A by series and 60V/3A by parallel without need to purchase another power supply.

Low Fan Noise
Instek has developed this power supply to be suitable for any application. In order to eliminate unnecessary fan noise, the GPS-4303 will automatically lower the fan speed under low or no load condition. This makes it appropriate for laboratory use.

Large Front Panel Display
The large front panel display on the GPS-4303 allows for two outputs (including both voltage and current) to be monitored concurrently

Output
Mode	CH1	CH2	CH3	CH4
Voltage	0 ~ 30V		2.2~5.2V	8~15V
Current	0 ~ 3A		1A Fixed	1A Fixed
Tracking Series Voltage	0 ~ 60V
Tracking Parallel Current	0 ~ 6A
CONSTANT VOLTAGE OPERATION (CH1, CH2)
Line Regulation	< 0.01% + 3mV
Load Regulation	< 0.01% + 3mV (rating current < 3A) < 0.02% + 5mV (rating current > 3A)
Ripple & Noise	< 1mVrms 5Hz ~ 1MHz
Recovery Time	< 100S (50% Load change, Minimum load 0.5A)
CONSTANT CURRENT OPERATION (CH1, CH2)
Line Regulation	< 0.2% + 3mA
Load Regulation	< 0.2% + 3mA
Ripple & Noise	< 3mArms
TRACKING OPERATION (CH1, CH2)
Tracking Error	< 0.5% + 3mV of the Master
Series Regulation	< 300mV
Load Regulation	< 0.01% + 3mV
Ripple & Noise	< 2mVrms 5Hz ~ 1MHz
GSP-4303 2.2V ~ 5.2V OUTPUT (CH3)
Line Regulation	< 5mV
Load Regulation	< 15mV
Ripple & Noise	< 2mVrms, 5Hz ~ 1MHz
Voltage Accuracy	+ 5% rdg
Current Output	GPS-4303/4302:3A,
GPS-4303 8V ~ 15V OUTPUT (CH4)
Line Regulation	< 5mV,
Load Regulation	< 10mV
Ripple & Noise	< 2mVrms, 5Hz ~ 1MHz
Voltage Accuracy	± 5% rdg
Current Output	1A
METER
Digital	3 digits 0.5" LED display GPS-4303 Out ON Accuracy ± (5% rdg + 2 digits) GPS-4303 Out OFF Accuracy ± (5% rdg + 8 digits)
INSULATION
Chassis and Terminal	>DC 500V / 20MΩ
Chassis and AC Cord	> DC 500V / 30MΩ
POWER SOURCE
	AC 100V/120V/220V/240V+10%, 50/60Hz
ACCESSORIES
	Instruction manual x 1, Power cord x 1, GPS-4303: Test lead GTL-104 x 2, GTL-105 x 2 or GTL-203 x 2, GTL-204 x 2
DIMENSIONS & WEIGHT
	255(W) x 145(H) x 265(D) mm, Approx. 7 kg

Tech Specs

Power Supplies/DC Power Supplies Template
Outputs	Quad
Voltage Output 1	Variable
Max Voltage Output 1	30 V
Programmable	No
Current Output 1	Variable
Max Current Output 1	3 A
Voltage Output 2	Variable
Max Voltage Output 2	30 V
Current Output 2	Variable
Max Current Output 2	3 A
Voltage Output 3	Variable
Max Voltage Output 3	5.2 V
Current Output 3	Fixed
Max Current Output 3	1 A
Voltage Output 4	Variable
Max Voltage Output 4	15 V
Current Output 4	Fixed
Max Current Output 4	1 A
Meter Type	Digital
Switching	No
Linear/Switching	Linear
Constant current/voltage	Yes
Test Equipment General Attributes
Unique Features	4 Independent Isolated Output Four "3 Digits" LED Displays 0.01% Load and Line Regulation Low Ripple and Noise Tracking Operation and Auto Series/Parallel Operation Output ON/OFF Switch Output Voltage and Current Setting When Output Disable Fan Speed Control Circuit to Minimize Fan Noise Over Load and Reverse Polarity Protection
Warranty	2 YEARS
Additional Info/Comments	Tracking Information: TRACKING OPERATION (CH1, CH2) Tracking Error ?0.5% + 10mV of CH1 Series Regulation ?0.01% + 5mV Load Regulation ?300mV Ripple & Noise ?2mVrms, 5Hz ~ 1MHz CH3 OPERATION (for GPS-3303/4303) CH3 Voltage 2.2V ~ 5.2V Line Regulation ?5mV Load Regulation ?15mV Ripple & Noise ?2mVrms 5Hz ~ 1MHz Current Output 1A CH4 OPERATION (for GPS-4303) CH4 VOLTAGE 8V ~ 5V Line Regulation ?5mV Load Regulation ?10mV Ripple & Noise ?2mVrms 5Hz ~ 1MHz Recovery Time 1A
Product Weight	7 KILOS (15.43 LBS)
Product Height	265 MM (10.43 IN)
Product Length	255 MM (10.04 IN)
Product Width	145 MM (5.71 IN)
Data Logging	No
ECCN Number	EAR99
Calibration Included	Factory Calibration
Power Supply Voltage	120V/220V Universal
Country of Origin	China
Shipping Height	10.00 IN
Shipping Length	15.00 IN
Shipping Width	14.25 IN

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 11 reviews

Most Helpful First | Newest First

Recommend to a Friend

Old fashion User Interface but

5.0

Awesome performance, easy and straightforward to use, reliable...

Verified Purchase Mason on May 01, 2019

Recommend to a Friend

Great Supply

5.0

Wonderful and very versatile supply for the money. 4-channels plus the ability to put 2 in series for up to 60V means you can pretty much develop any application for embedded or telecom electronics. Key piece of equipment on my bench.

Verified Purchase Anonymous on Nov 04, 2014

Recommend to a Friend

Best Benchtop Supply for the Money

5.0

I have purchased about 7 of these power supplies for my company and am happy with everyone. We have been using them daily for over five years without any problems. One of the best features is the current limiting adjustment. It makes it possible for the two main channels to work as a current source as well as a voltage source. The dual display (current and voltage) is awesome.
Highly recommend!
Best benchtop power supply for the money!!

Kevin W on Sep 11, 2014

Recommend to a Friend

BioMed

5.0

We are changing over all our 14 tech to the INSTEK GPS-4303 we all love them. The 4 channel design is very versatile. Some of our tech still had Heath Kit single channel supplies. They are in Heaven

Steve on Sep 11, 2014

Recommend to a Friend

Great device for the price

4.0

As the title says, it's a great piece of equipment for the price. The only reason it did not get 5 stars is because the knobs are a bit too touchy, and the channel selection switches are a bit confusing at first.

ulrich on Sep 11, 2014

Recommend to a Friend

BIOMED U OF U Hospital

5.0

We are very happy with the power supplies we received. We really like the product and the price we received.

Thanks

Anonymous on Sep 11, 2014

Recommend to a Friend

Instek GPS-4303 sis reliable Power Supply

5.0

I got this power supply for a thesis project. It is very reliable. I wanted to use it to drive few power hungry electronic devices which were used in an experimental system. Very good unit, accurate, It did what it supposed to! ... I recommend it!

emectronex on Sep 11, 2014

Recommend to a Friend

Great Power Supply

5.0

Great power supply. Used as a daily work horse in our test department. Have not had any issues with it.

Kim on Sep 11, 2014

Recommend to a Friend

Great supply!

5.0

Absolutely recommended. A great workbench power supply. No faults, just works when you need it. Totally accurate.

Matt on Sep 11, 2014

Recommend to a Friend

It works

5.0

Product was delivered quickly and was accurate and fully functional.

Verified Purchase Anonymous on Apr 16, 2014

Recommend to a Friend

Great Power Supply!

5.0

This is a nice power supply. The four outputs come in handy for my small hobbyist projects. CC/CV modes, what more could I ask for? Well worth the money and great customer service.

Verified Purchase S. Martinez on Apr 07, 2014
