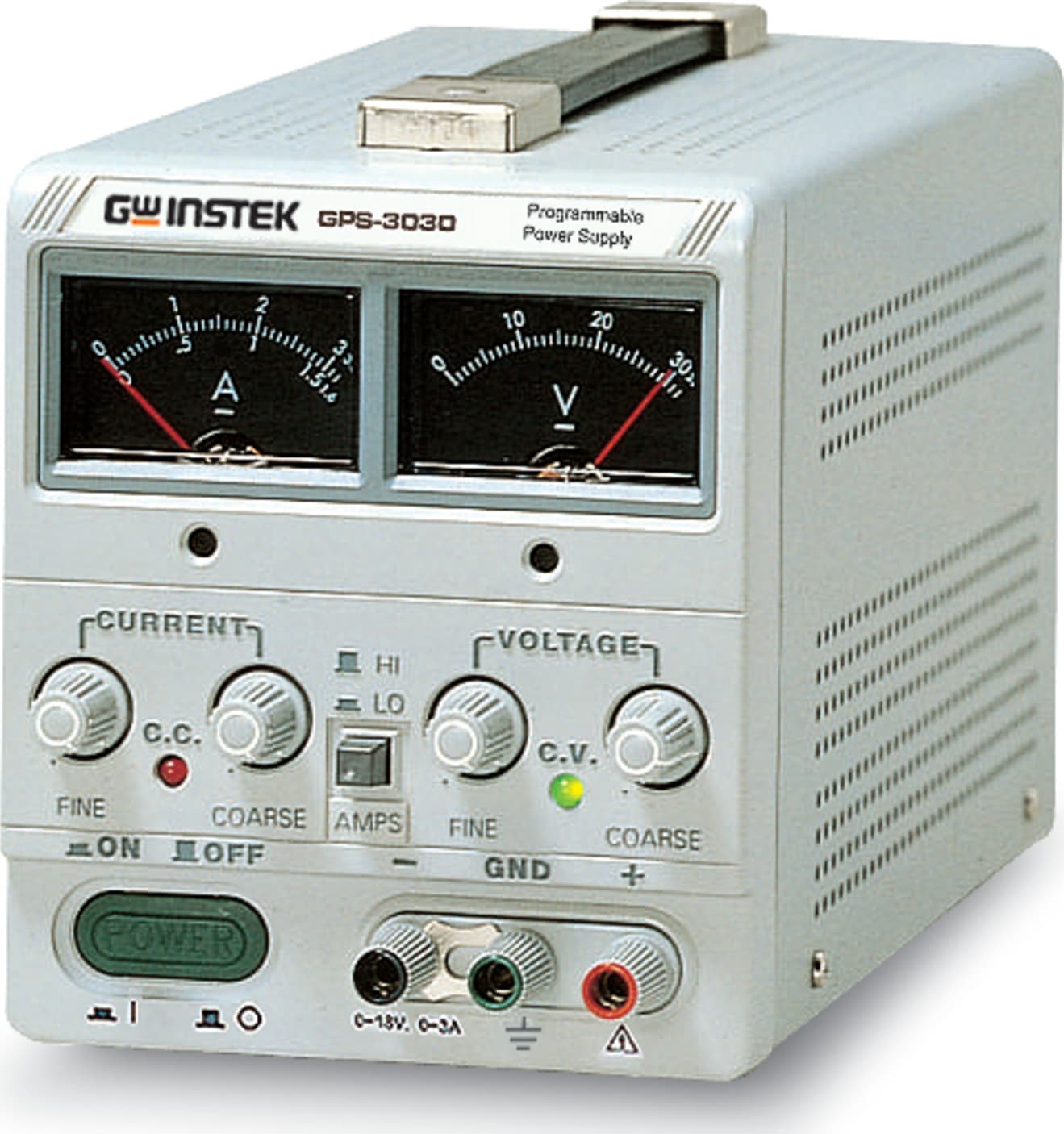

Instek GPS-3030 0-30V, 0-3A Power Supply

Name: Instek GPS-3030 0-30V, 0-3A Power Supply
Brand: Instek
SKU: InstekGPS-3030
Availability: InStock

0 reviews | Model: Instek GPS-3030

Compare

0-30V, 0-3A

Light and Compact Design
0.01% High Resolution
Constant Voltage and Constant Current Operation
Series or Parallel Operation
Low Ripple and Noise
Overload and Reverse Polarity Protection
Separate Analogue Displays for Voltage and Current Readings

Model	Output Volts (V)	Output Amps (A)
GPS-3030	0 ~ 30	0 ~ 3

View Product Details

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Power Supply Kits

for the Instek GPS-3030

Cal Test CT4041 Power Supply Accessory Kit ( rated for up to 20amps ) Get the most...

Catalog: CT4041

(24)

In Stock!

Add to Cart

The GPS-Series are single output, 54 to 90W, linear DC power supplies. The GPS-Series include both analog and digital display meters with varying power outputs. The GPS-Series feature Overload and reverse polarity protection as well as high regulation and low ripple / noise that are maintained at 0.01% and < 1mVrms, respectively. Continuous or dynamic internal load selection accommodates applications such as pulsed current. Remote control terminals offer programming and operation from an external device.

Constant Voltage Operation	Line Regulation:	£0.01% +3mV
	Load Regulation:	£0.01% +3mV (rating current £3A) £0.01% +5mV (rating current >3A)
	Ripple and Noise:	£0.5mVrms 5Hz ~ 1MHz (rating current £3A) £1mVrms 5Hz ~ 1MHz (rating current >3A)
	Recovery Time:	£100µs (50% load change, minimum load 0.5A)
	Temperature Coefficient:	£300 ppm/°C
	Output Range:	GPS-1830 and GPS-1850: 0V to 18V, continuously adjustable GPS-3030: 0V to 30V, continuously adjustable GPS-6010: 0V to 60V, continuously adjustable
Constant Current Operation	Line Regulation:	£0.2% +3mA
	Load Regulation:	£0.2% +3mA
	Ripple Current:	£3mArms
	Output Range:	GPS-1830 and GPS-3030: 0A to 3A, continuously adjustable GPS-1850: 0A to 5A, continuously adjustable GPS-6010: 0A to 1A, continuously adjustable (HI/LO range switchable)
Meter	Meter Type:	Analogue voltmeter and analogue ammeter 2.5 class
Meter	Meter Size:	Each meter 50mm x 50mm
Insulation	Chassis and Terminal:	20MW or above (500V DC)
Insulation	Chassis and AC Cord:	font-family: Arial;">0MW or above (500V DC)
Other Details	Power Source:	AC 100V/120V/220V/240V ±10%, 50/60Hz
	Accessories:	Power cord x 1, Instruction manual x 1, Test lead (type GTL-105, type GTL-104 with GPS-1850) x 1
	Dimensions:	128mm (w) x 145mm (h) x 285mm (d)
	Weight:	5kg (4kg for GPS-1830)
