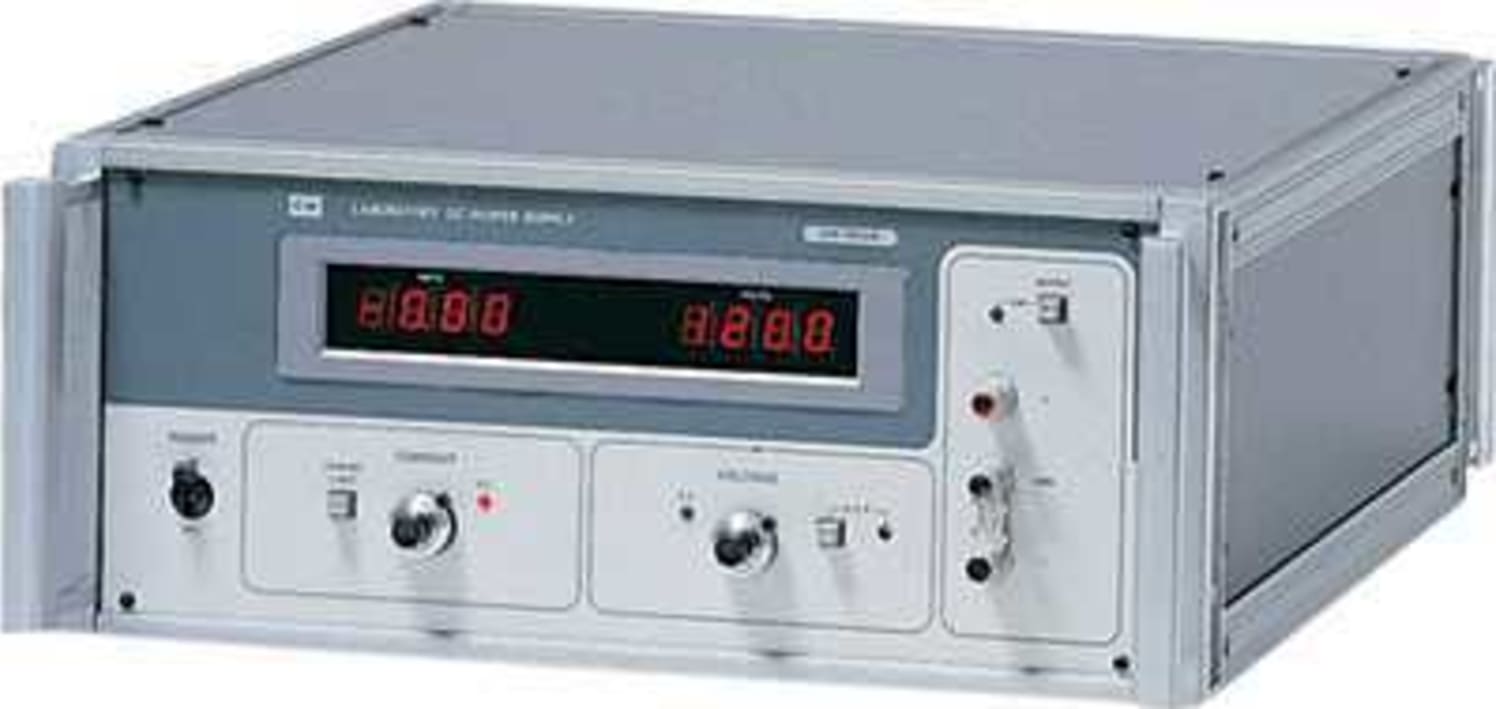

Instek GPR-16H50D Power Supply

Name: Instek GPR-16H50D Power Supply
Brand: Instek
SKU: InstekGPR-16H50D
Price: 1547.44 USD
Availability: InStock

0 reviews | Model: Instek GPR-16H50D

Compare

0-160V, 0-5A digital display

Model	Output Volts (V)	Output Amps (A)
GPR-16H50D	0 ~ 160	0 ~ 5

View Product Details

List Price: $1,775.00

In Stock:

Recommended for you

Choose a Category

(24)

In Stock!

Add to Cart

Constant Voltage Operation	Line Regulation:	£0.01% +3mV
	Load Regulation:	£0.01% +5mV (rating current <10A) £0.02% +5mV (rating current ³10A)
	Ripple and Noise:	£2mVrms 5Hz ~ 1MHz
	Recovery Time:	£100µs (50% load change, minimum load 0.5A)
	Output Range:	0V to rated voltage, continuously adjustable
Constant Current Operation	Line Regulation:	£0.2% +3mA
	Load Regulation:	£0.2% +3mA
	Ripple Current:	£5mArms (£20A), £20mArms (£50A), £100mArms (£100A)
	Output Range:	0A to rated current, continuously adjustable
Meter	Meter Type:	Dual 3½ digit 0.5" LED display
Meter	Accuracy:	±(0.5% of reading + 2 digits)
Insulation	Chassis and Terminal:	100MW or above (1000V DC)
Insulation	Chassis and AC Cord:	100MW or above (1000V DC)
Other Details	Power Source:	AC 120V or 220V or 240V (specify when ordering) ±10%, 50/60Hz
	Accessories:	Power cord x 1, Instruction manual x 1, Test lead (type GTL-105 with units rated to 3A, type GTL-104 with units rated to 10A, not supplied with units rated over 10A) x 1
	Dimensions:	430mm (w) x 178mm (h) x 572mm (d)
	Weight:	30kg approx
