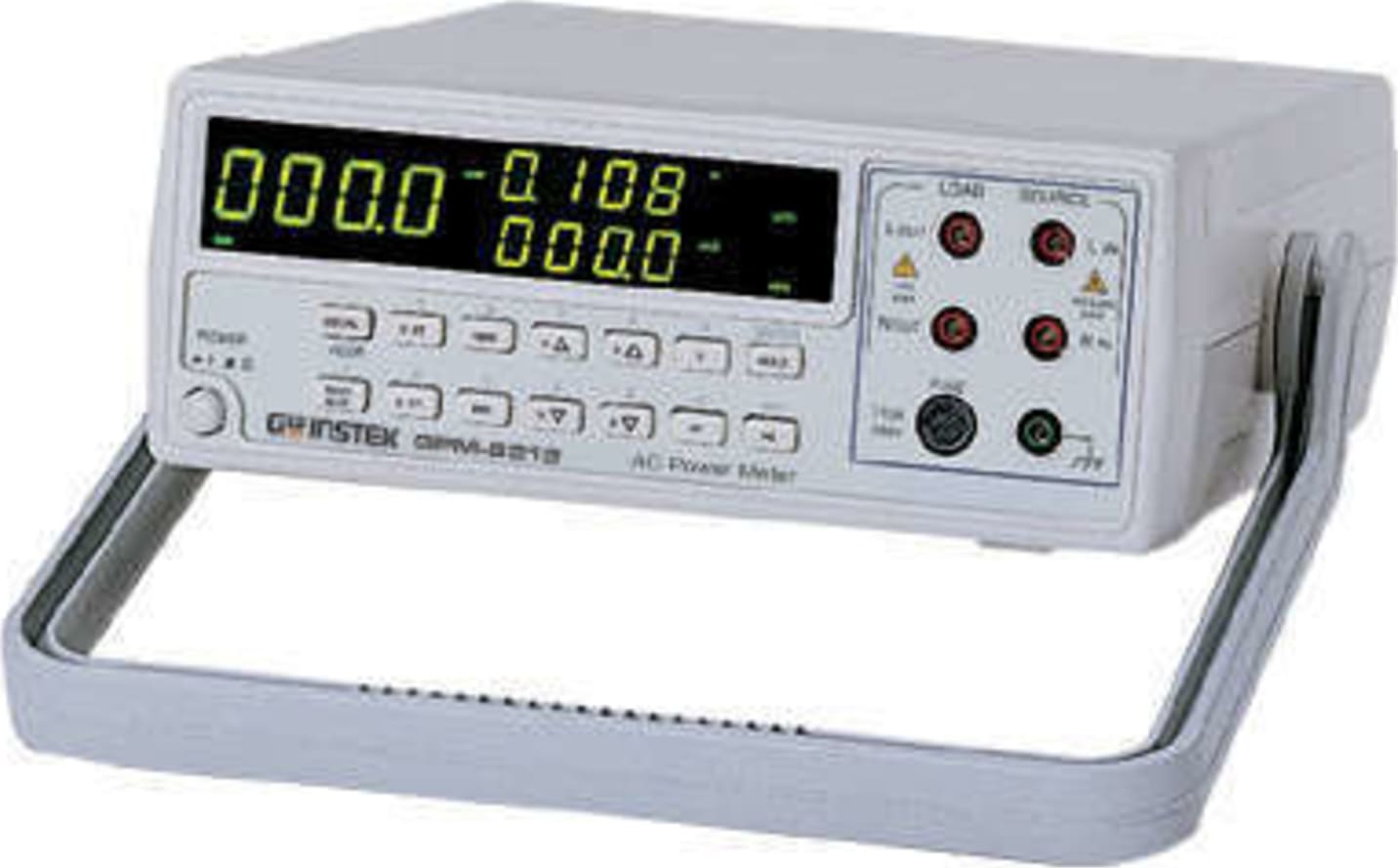

Instek GPM-8212 Discontinued Products

Name: Instek GPM-8212 Discontinued Products
Brand: Instek
SKU: InstekGPM-8212
Price: 610.26 USD
Availability: InStock

0 reviews | Model: Instek GPM-8212

Compare

AC Power Meter

View Product Details

List Price: $700.00

In Stock:

Recommended for you

Voltage	Range:	5V, 10V, 20V, 40V, 80V, 160V, 320V, 640V in 8 ranges, auto range or manual
	Measurement Type:	True RMS
	Input Resistance:	³1MW
	Maximum Input Voltage:	1000V (peak), 700V (RMS)
	PT Ratio Setting:	1 ~ 9999
	Accuracy:	±(0.1% of reading ±0.1% of range) at 23°C ±5°C (sine wave)
Current	Range:	160mA, 320mA, 640mA, 1.280A, 2.560A, 5.120A, 10.24A, 20.48A in 8 ranges, auto range or manual
	Measurement Type:	True RMS
	Input Resistance:	0.01W
	Maximum Input Current:	30A (peak), 20A (RMS)
	CT Ratio Setting:	1 ~ 9999
	Accuracy:	±(0.1% of reading ±0.1% of range) at 23°C ±5°C (sine wave)
Power	Measurement Range:	0.32mW ~ 13.10kW
	Measurement Type:	True RMS
	Accuracy:	±(0.2% of reading ±0.2% of range) at 23°C ±5°C (sine wave)
Power Factor	Range:	0.001 ~ 1.000
Power Factor	Computation:	W ÷ (V × A) = Power Factor (PF)
Frequency	Measurement Range:	40Hz ~ 400Hz
Frequency	Accuracy:	±0.2% of reading at 23°C ±5°C
Other Details	Display:	4 digit 0.56" LED display and two 4 digit 0.4" LED displays
	Minimum Input:	2% of range
	Response Time:	2 cycles/second
	Overload Indicator:	"O.L"
	Power Source:	AC 86V ~ 265V, 50/60Hz
	Accessories:	Power cord x 1, Instruction manual x 1
	Options:	RS-232/RS-485 Interface with Software
	Dimensions:	251mm (w) x 91mm (h) x 291mm (d)
	Weight:	1.6kg approx
