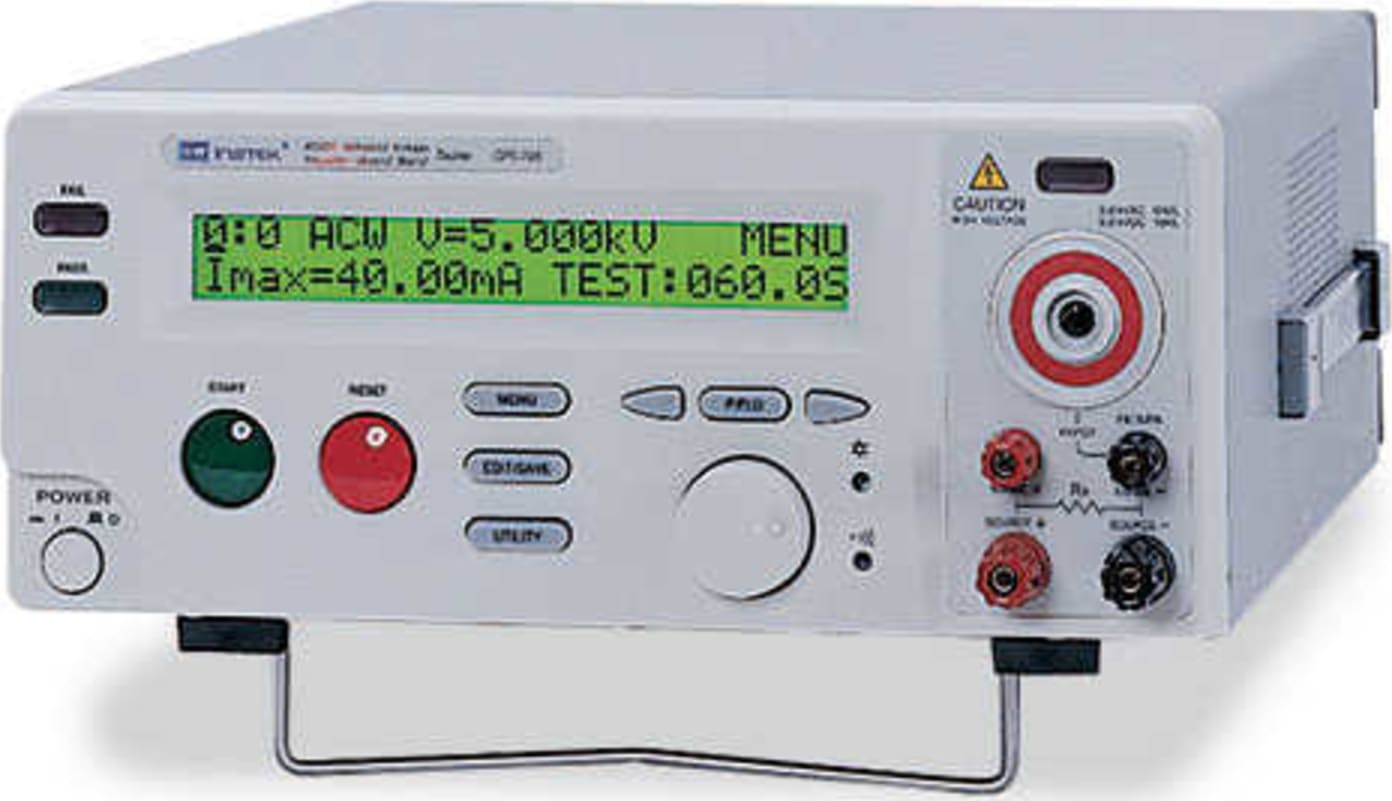

Instek GPI-725A 200VA AC Withstand Voltage Insulation Electrical Safety Tester

Name: Instek GPI-725A 200VA AC Withstand Voltage Insulation Electrical Safety Tester
Brand: Instek
SKU: InstekGPI-725A
Price: 1390.51 USD
Availability: InStock

0 reviews | Model: Instek GPI-725A

Compare

200VA AC Withstand Voltage Insulation Electrical Safety Tester

200VA AC Withstand Voltage Insulation Electrical Safety Tester
True RMS Cut-Off Current Measurement
Arc Detection
Zero Crossing Turn-On Operation Switch
Linear Amplifier with Feedback Control to Provider High Regulated Voltage Output
Controllable Ramp-Up Time
Output Voltage and Current Limit Could be set Without HV Output
Output Voltage Adjustable During Test Period
9 pins Remote Control for START, RESET, and Test Result Output
Automatic FAIL Indicator of Alarm Lamp and Buzzer
Scanner Box for Automatic Test (Option)

View Product Details

List Price: $1,595.00

In Stock:

View Payment Options

Recommended for you

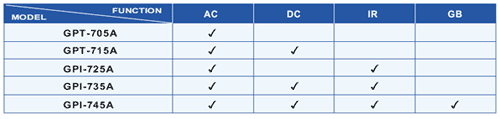

Selection Guide

AC HI-POT
Voltage Range	0.100kV ~ 5.000kV
Voltage Resolution Output	5V/step
Voltage Regulation (Line and Load)	1% + 5 V
Voltage Accuracy	±1% of reading ±10V
Current Sourcing	30 ~ 40mA(above 500V, test time max:180sec) 0.10 ~ 29.99mA(above 500V,continuous test) 0.10 ~ 10mA(below 500V, continuous test)
Current Limit	0.10 ~ 40mA, 0.02mA/step
Current Accuracy	±1% of reading ±80μA
DC HI-POT (GPT-715A/GPI-735A ONLY)
Voltage Range	0.100kV ~ 6.000kV
Voltage Resolution Output	5V/step
Voltage Regulation (Line and Load)	1% + 5 V
Voltage Accuracy	±1% of reading ±10V
Current Sourcing	0.10 ~ 10.00mA(above 500V,continuous test) 0.10 ~ 2mA( below 500V,continuous test) 0.10 ~ 10mA, 0.01mA/step
Current Accuracy	±1% of reading ±50μA
INSULATION RESISTANCE (GPI-725A)
DC Voltage	50V/100V/500V/1000V
Resistance Accuracy (50V/100V)	1~50MΩ: ±5% of reading ±1count 51~200MΩ: ±10% of reading ±1count 201~1990MΩ: ±20% of reading ±1count
Resistance Accuracy (500V/1000V)	1~500MΩ: ±5% of reading 1±count 501~2000MΩ: ±10% of reading ±1count 2001~9990MΩ: ±20% of reading ±1count
CONTINUITY CHECK
Output Current Range	0.1A
Compliance Voltage Range	10%
Current Resolution	0.1Ω @ 1Ω
ARC DETECT
Detect Current	40 level (1 ~ 40mA)
MEMORY
Groups	10
Steps Per Group	16
NTERFACE
Remote I/O	Standard
RS-232C	Standard
Scan	Standard
GPIB	Option
Real Panel Output	Option
Scanner Box	Option(HSB-001-1: 8ch HV + 8ch GB HSB-001-2: 16 ch HV)
GENERAL
Power Source	AC100V/120V/220V/230V ±10%, 50/60Hz
Accessories	Instruction manual x 1 ,Power cord x 1, GHT-105A x 1
Dimensions & Weight	330(W) x 149(H) x 446(D) mm, Approx. 14kg
