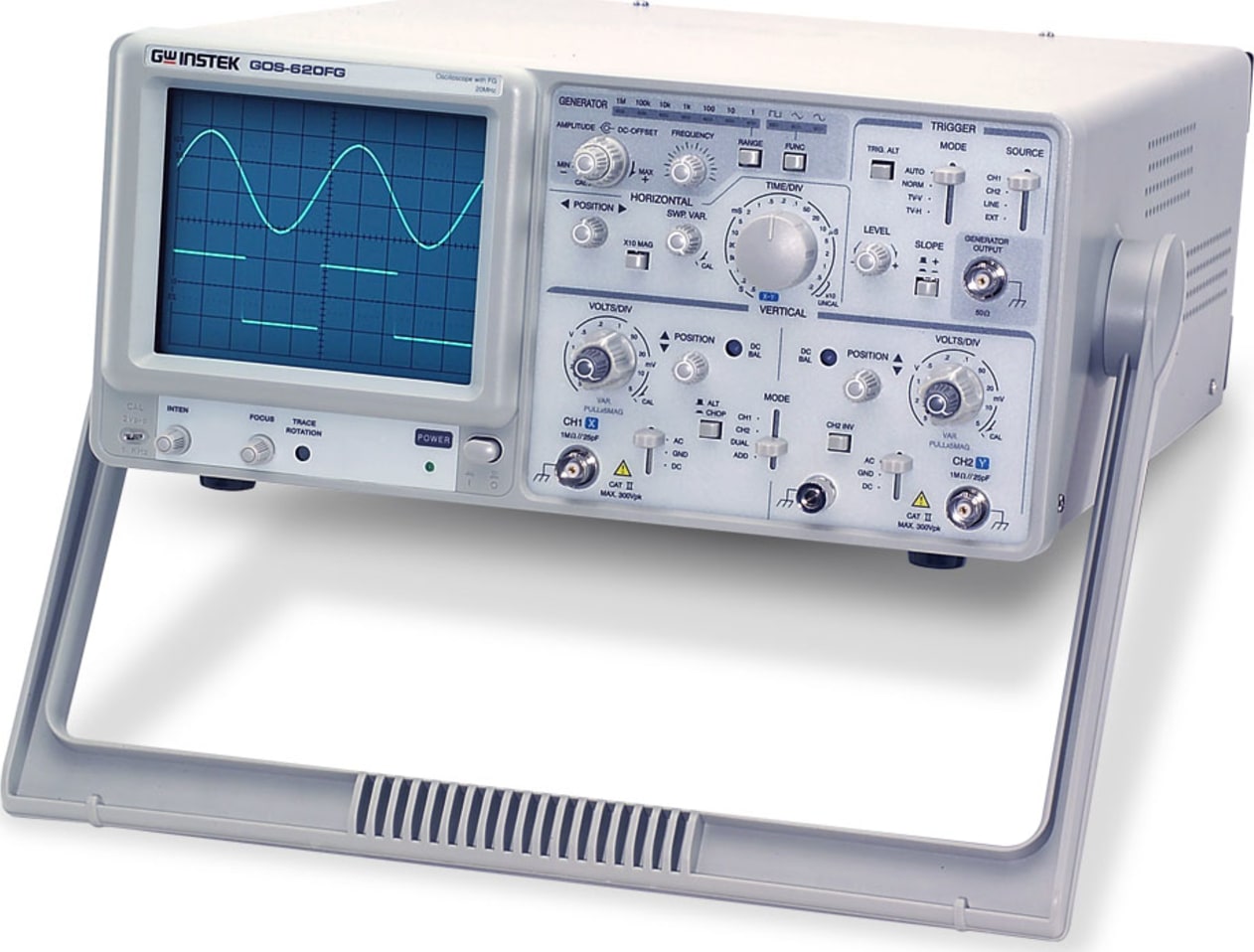

Instek GOS-620FG 20MHz Analog Oscilloscope with Function Generator

Name: Instek GOS-620FG 20MHz Analog Oscilloscope with Function Generator
Brand: Instek
SKU: InstekGOS-620FG
Price: 475.64 USD
Availability: InStock

0 reviews | Model: Instek GOS-620FG

Compare

20MHz Analog Oscilloscope with function generator

20MHz Bandwidth
Dual Channel
High Sensitivity 1mV/DIV
TV Synchronisation
Z-Axis Input
ALT Triggering Function
CH1 Output
Built-in 1MHz Function Generator

View Product Details

List Price: $530.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Instek GOS-620FG

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Instek GTL-110 Test Lead, BNC to BNC connector [1M]

Catalog: GTL-110

(0)

In Stock!

Add to Cart

Rigol ADP0150BNC 50 Ohm impedance adapter for oscilloscopes or generators

Catalog: ADP0150BNC

(30)

In Stock!

Add to Cart

Cal Test CT4042 Oscilloscope Accessory Kit. Get the most out of your scope with this...

Catalog: CT4042

(24)

In Stock!

Add to Cart

Aim-TTi Iprober 520 Positional Current/Field Probe DC-5MHz 5mA-20A

Catalog: 58250-0010

(5)

In Stock!

Add to Cart

Auburn P-20A 3GHz RF Probe BNC. (adaptor for SMA not included )

Catalog: P-20A

(3)

In Stock!

Add to Cart

Instek GOS-620FG 20MHz Analog Oscilloscope with Function Generator

High intensity CRT with high acceleration voltage
Wide bandwidth and sensitivity
Alternate triggering
TV sync triggering
CHI output
Intensity modulation capability permits time of frequency markers to be added.

The GOS-620FG oscilloscope + function generator is a portable-type, dual channel oscilloscope function generator. Its bandwidth of DC is up to 20MHz, and its maximum sensitivity is 1mV/DIV. The time base provides a maximum sweep time of 0.2uS/DIV. The sweep speed becomes 100nS/DIV after ,magnifying 10 times. The oscilloscope uses a 6-inch rectangular type cathode-ray tube with red internal graticule. The function generator generates triangle wave, sine wave, and square wave with the frequency range from 0.1Hz to 1MHz. The oscilloscope is sturdy, easy to operate and exhibits operational reliability.

CRT
Type	6-inch rectangular type with internal graticule 8 x 10 div (1div=1cm)
Accelerating Potential	2kV
Z-Axis InputSensitivity	Above 5Vp-p Max. input voltage: 30V (DC + AC peak) Bandwidth: DC ~ 2MHz
Polarity	Positive-going input decrease
Focus Control	Auto focus
FUNCTION GENERATOR
Frequency Range	0.1Hz ~ 1MHz (7 range)
Waveform	Sine Wave, Square Wave, Triangle Wave
Frequency Variable Range	10:1 or more
Output Impedance	50Ω±10%
Voltage	Over 14Vpp(open circuit) continuous conversion DC offset possible over ±6V when open
Sinewave Distortion	2% Max. (10Hz ~ 100kHz)
Squarewave Unsymmetry	±3% or less (in 1 kHz maximum)
Squarewave Rise/Fall Time	50Ω output: 120ns or less
VERTICAL SYSTEM
Sensitivity	5mV ~ 5V/div ±3%, 1mV ~ 1V/div ±5% (using x5MAG)
Bandwidth	DC to 20MHz (x 5MAG: DC to 7MHz)
Rise Time	Approx. 17.5ns (x 5MAG: Approx. 50ns)
Max. Input	300V (DC+ACpeak) at 1kHz
Input Coupling	AC, DC, GND
Input Impedance	Approx. 1MΩ // 25pF
Vertical Mode	CH1,CH2,DUAL(ALT,CHOP),ADD,CH2 INV
HORIZONTAL SYSTEM
Sweep Time	0.2μs ~ 0.5s/div ±3% (±5% at x10 MAG)
Max. Sweep Rate	100ns/div (20ns and 50ns/div are uncalibrated)
TRIGGER
Trigger Mode	AUTO, NORM, TV-V, TV-H
Trigger Source	CH1, CH2, ALT, LINE, EXT
Trigger Slope	"+" or "-"
X-Y OPERATION
Sensitivity	5mV ~ 5V/div ±4%
X-axis Bandwidth	DC ~ 500kHz
Phase Error	3° or less from DC ~ 50kHz
OUTPUT SIGNAL
Ch1 Signal Output	Voltage: approx. 20mV/div into 50Ω Bandwidth : 50Hz to 5MHz (-3dB) Impedance : Approx.50Ω
Calibrator Output	1kHz Square wave, 2Vpp±2%
POWER SOURCE
	AC 115/ 230V ±15%, 50Hz /60Hz
DIMENSIONS & WEIGHT
	310(W) x 150(H) x 455(D)mm; Approx. 8.5kg

Tech Specs

Oscilloscopes/Analog Oscilloscopes Template
Channels	2
Bandwidth	20 MHz
Screen Size	6 IN
Cursor Readout	No
Accelerating Voltage	2 kV
Screen Type (Oscilloscopes)	CRT
Test Equipment General Attributes
Unique Features	• 20MHz Bandwidth • Dual Channel • High Sensitivity 1mV/DIV • TV Synchronization • Z-Axis Input • ALT Triggering Function • CH1 Output • Built-in 1MHz Function Generator
Product Weight	8.5 KILOS (18.74 LBS)
Product Height	150 MM (5.91 IN)
Product Length	455 MM (17.91 IN)
Product Width	310 MM (12.20 IN)
Data Logging	No
Power Supply Voltage	120V/220V Universal
Country of Origin	Taiwan
Shipping Height	10.25 IN
Shipping Length	20.50 IN
Shipping Width	16.25 IN
