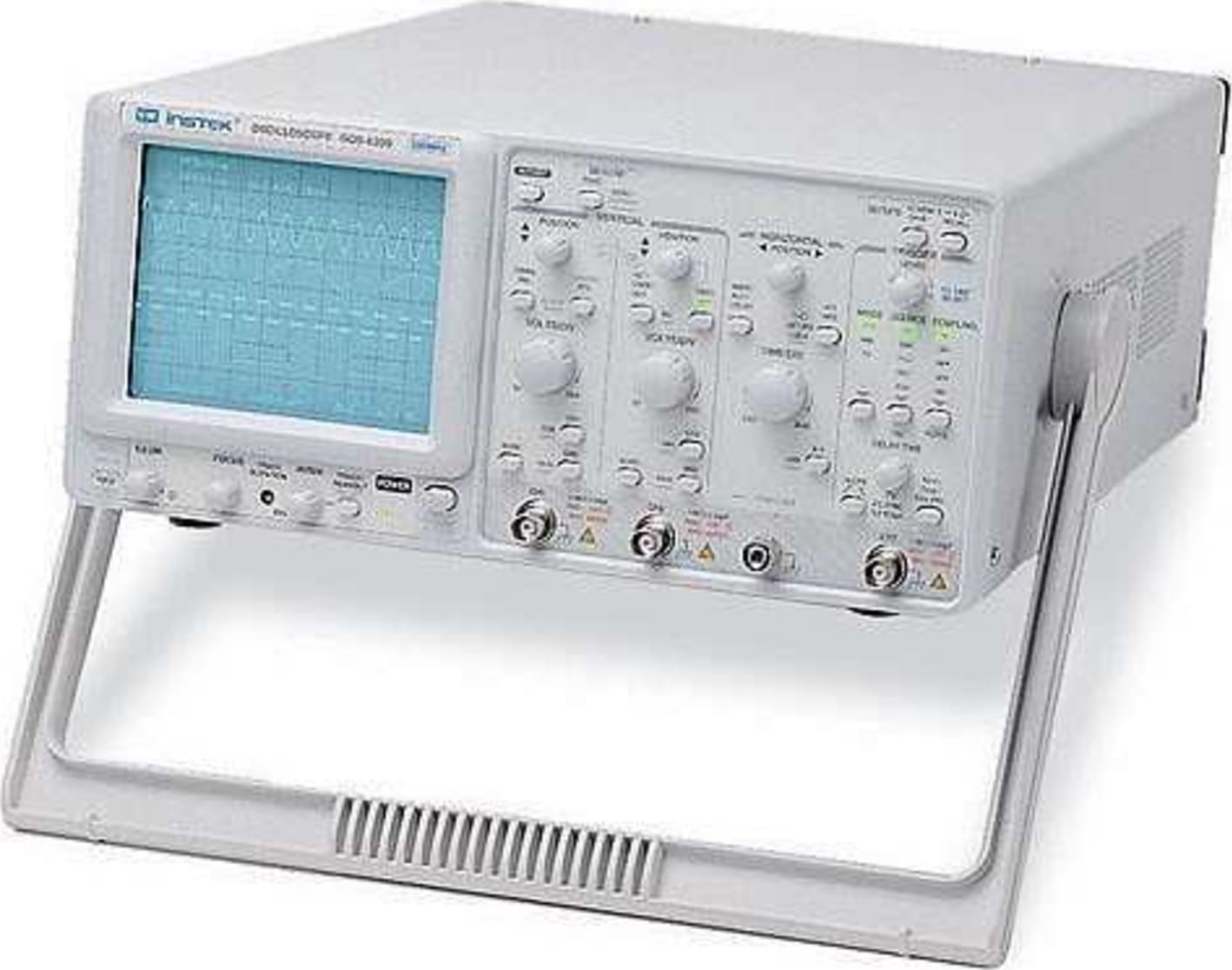

| CRT | Type: | 6-inch rectangular type with internal graticule; 0%, 10%, 90% and 100% markers; 8 x 10 DIV (1 DIV = 1 cm) |
| Phosphor: | P31 |
| Accelerating Potential: | 12kV approx |
| Illumination: | Continuously adjustable |
| Z-Axis Input: | Input impedance: approx 5kW
Sensitivity: above 3Vpp
Bandwidth: DC ~ 5MHz |
| Vertical System | Sensitivity: | 5mV ~ 5V/DIV ±3%; 1mV ~ 2mV/DIV ±5% |
| Bandwidth: | DC ~ 50MHz
DC ~ 15MHz at 1mV ~ 2mV/DIV |
| Rise Time: | 7ns (23.3ns at 1mV ~ 2mV/DIV) |
| Signal Delay: | Leading edge can be monitored |
| Input Impedance: | 1MW approx |
| Input Coupling: | AC, DC, GND |
| Vertical Mode: | CH1, CH2, DUAL (automatic switching CHOP and ALT), CH2 INV, ADD |
| Horizontal System | A (Main) Sweep Time: | 0.1µs ~ 0.5s/DIV ±3%, 100ns ~ 50ms/DIV ±5% (x 10 MAG), 10ns ~ 50ns/DIV ±8% (x 10 MAG) |
| B (Delay) Sweep Time: | 0.1µs ~ 0.5ms/DIV ±3%, 100ns ~ 50µs/DIV ±5% (x 10 MAG), 10ns ~ 50ns/DIV ±8% (x 10 MAG) |
| Delay Time: | 1µs ~ 5ms ±5% |
| Delay Time Jitter: | Better than 1:10000 |
| Trigger | Trigger Mode: | AUTO, NORM, SINGLE |
| Trigger Source: | CH1, CH2, ALT, LINE, EXT |
| Trigger Coupling: | AC, DC, HF REJ, TV |
| Trigger Slope: | "+" or "-" |
| X-Y Operation | Sensitivity: | 5mV ~ 5V/DIV ±4% |
| X-Axis Bandwidth: | DC ~ 2MHz |
| Phase Error: | 3º or less from DC ~ 100kHz |
| Output Signal | Trigger Signal Output: | Voltage: approx 25mV/DIV into 50W |
| Calibrator Output: | 1kHz square wave, 2Vpp ±2% |
| Cursor Readout Function | Cursor Measurement Function: | 7 functions: DV, DV%, DVdB, DT, 1/DT, DUTY, Dq |
| Cursor Resolution: | 1/25 DIV |
| Panel Setting Display: | Vertical: V/DIV, V-MODE, CHOP/ALT, ADD (SUB), INV, UNCAL, probe factor (x 1 / x 10)
Horizontal: S/DIV (MTB, DTB), UNCAL, MAG (x 10)
Other: TV-V/TV-H, X-Y |
| Effective Cursor Range: | Vertical: ±3 DIV; Horizontal: ±4 DIV |
| Other Details | Power Source: | AC 100V/120V/230V ±10%, 50/60Hz |
| Accessories: | Power cord x 1, Instruction manual x 1, Probe (10:1/1:1) x 2 |
| Dimensions: | 310mm (w) x 150mm (h) x 455mm (d) |
| Weight: | 8.2kg approx |
