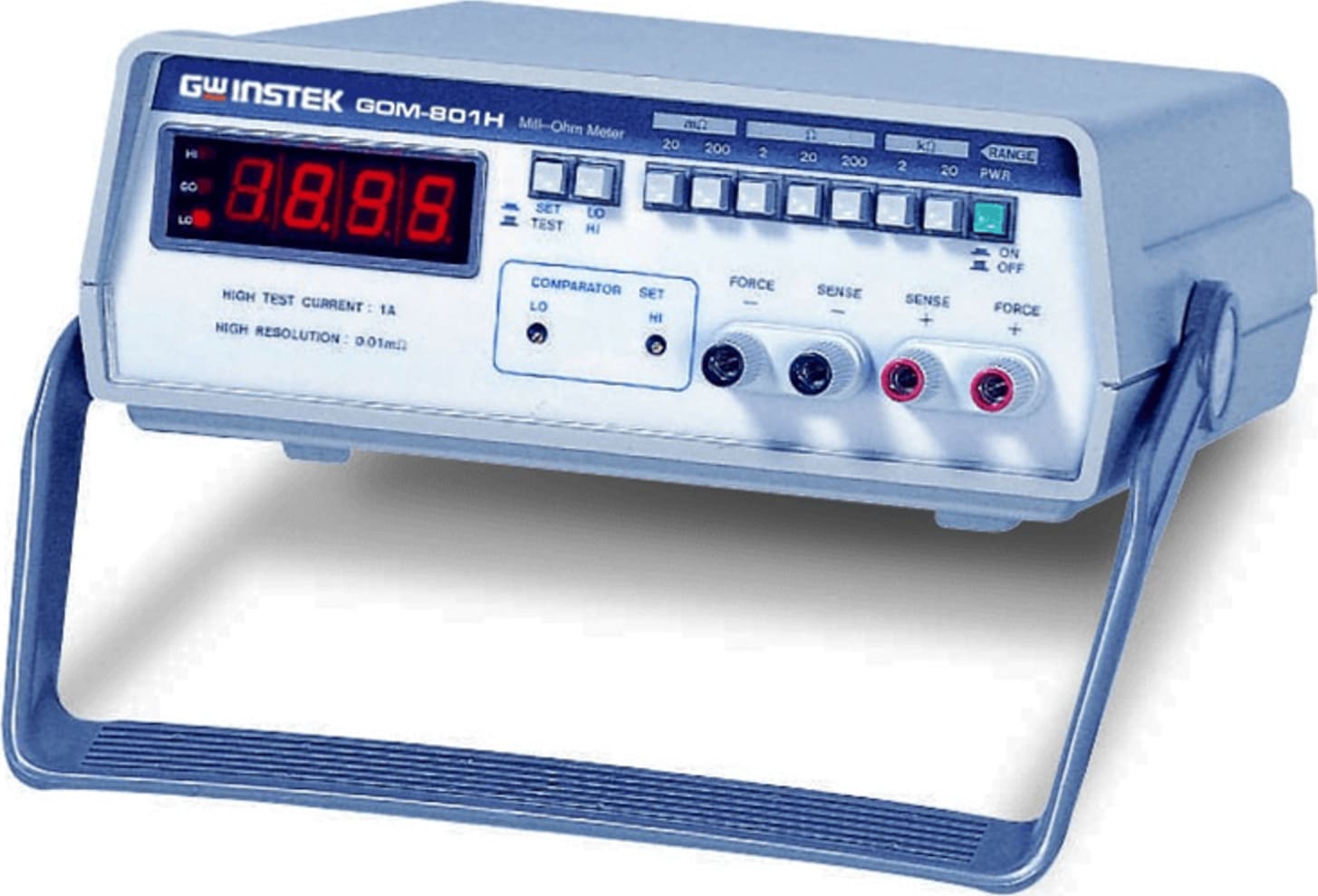

Instek GOM-801H 3 1/2 Digital D.C. Milli-Ohm Meter
- The main display is equipped with a 3 1/2 digit 0.5" red LED with comparator indicators.
- Measurable objects can cover cable joints, earth bonds, switches, motors, transformers and generators.
- The internal comparator is fully adjustable for the user settable Hi/Lo comparison indicator.
The Digital Milliohm Meter features with its accuracy and readability. The circuit of this instrument has equipped with the voltage regulator and temperature compensation in order for its accuracy not to be influenced by the unstable AC power source and the alternation of temperature.
The Digital Milliohm Meter is specially produced for the manufacturers of the low resistor, switch, relay, jacks, plugs, connectors sockets or the electrolytic capacitor for the QC or IQC purpose, it also can be applied to measure the initial contact resistance.
The GOM-801H milliohm meter is the ideal device for quick and precise component and material resistance measurements. The front panel features seven selectable test ranges, 20mΩ to 20kΩ. The GOM-801H is the best choice for an inexpensive, easy to use, yet reliable milliohm meter.
| No. |
Description |
Function |
| 1. |
Power Switch |
Power on/off switch. |
| 2. |
Range |
7 steps: 20, 200mΩ, 2, 20, 200Ω, 2 and 20kΩ. |
| 3. |
HI/LO |
Set the “SET/TEST” switch to “SET” position, then select HI/LO for high or low value setting. |
| 4. |
SET/TEST |
This button can be used for testing or HI/LO value setting. |
| 5. |
FORCE Terminal “+” |
Test terminal. |
| 6. |
SENSOR Terminal “+” |
Test terminal. |
| 7. |
SENSOR Terminal “-” |
Test terminal. |
| 8. |
FORCE Terminal “-” |
Test terminal. |
| 9. |
HI of Comparator Set |
For high value setting. |
| 10. |
LO of Comparator Set |
For low value setting. |
| 11. |
Panel Meter |
To indicate the test value. |
| 12. |
HI Indicator |
This indicator will be lighted up when the test value is higher than the setting of high value. |
| 13. |
GO Indicator |
This indicator will be lighted up when the test value between high and low setting. The buzzer will be sounded up 2~5 seconds when the GO indicator is on. |
| 14. |
LO Indicator |
This indicator will be lighted up when the test value is lower than the setting of low value. |
