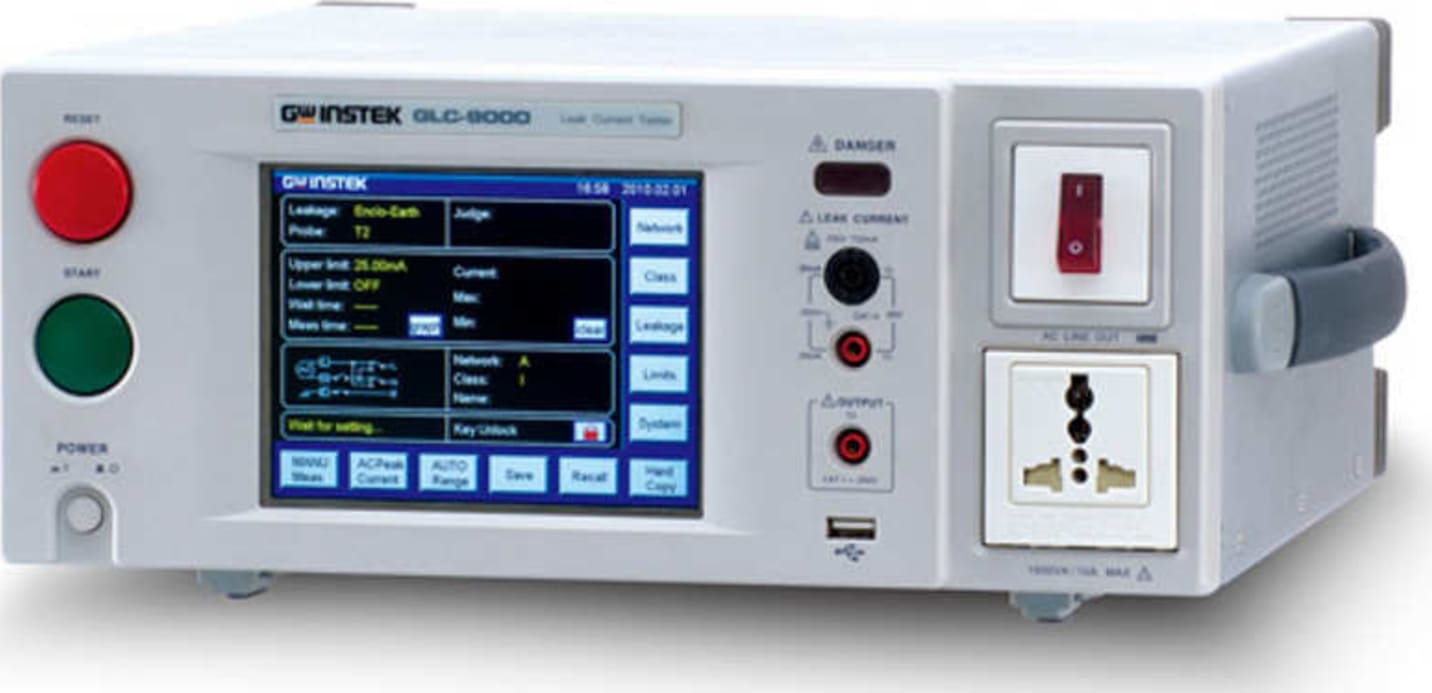

0 reviews | Model: Instek GLC-9000
Leakage Current Tester
List Price: $2,329.00
Your Price: $2,212.55
Sign-in for EDU Pricing!
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!
(1)
The GLC-9000 complies with IEC, UL, and other international electrical safety standards requiring leakage current measurement. Leakage current tests can be separated into 3 basic types:
The GLC-9000, leakage current tester, is used to perform leakage current (or called touch current) tests on medical electrical (IEC 60601-1) and general-purpose electric & electronic (IEC 60990) equipment. This tester engages with nine measurement networks (or called Measuring Device) to provide the simulation of the human body while the EUT (equipment under test) is taking a leakage current testing in compliance with the specific standards or regulations such as IEC, UL, JIS...etc. In order to provide a simple operation environment, the GLC-9000 equips with a large TFT LCD touch panel to configure the system as well as to present the measurement settings information and result simultaneously. Besides, there are 50 preset testing conditions, which conform to IEC60990 and other standards, for general electric equipment can be recalled to reduce the setting time. In addition, 30 sets of empty memory are available for user-defined settings. A Meter mode is also available for the GLC-9000, it uses the measurement terminal (T1/T2) to measure the voltage in the same way of the ordinary voltmeter. During the voltage measurement, the SELV function (safety extra-low voltage) is applicable to detect whether the voltage value between measuring points exceeds the SELV setting.
The color TFT touch screen makes operation intuitive and simple and also makes it easier to observe test result.
Nine Measurement Network are available for measuring the leakage current of electrical and medical equipment.
50 preset test conditions conforming to IEC 60990 for general electric equipment. Additional 30 sets empty memory for user defined setting.
The various practical interfaces are equipped as standard accessory, making control convenient and flexible.
