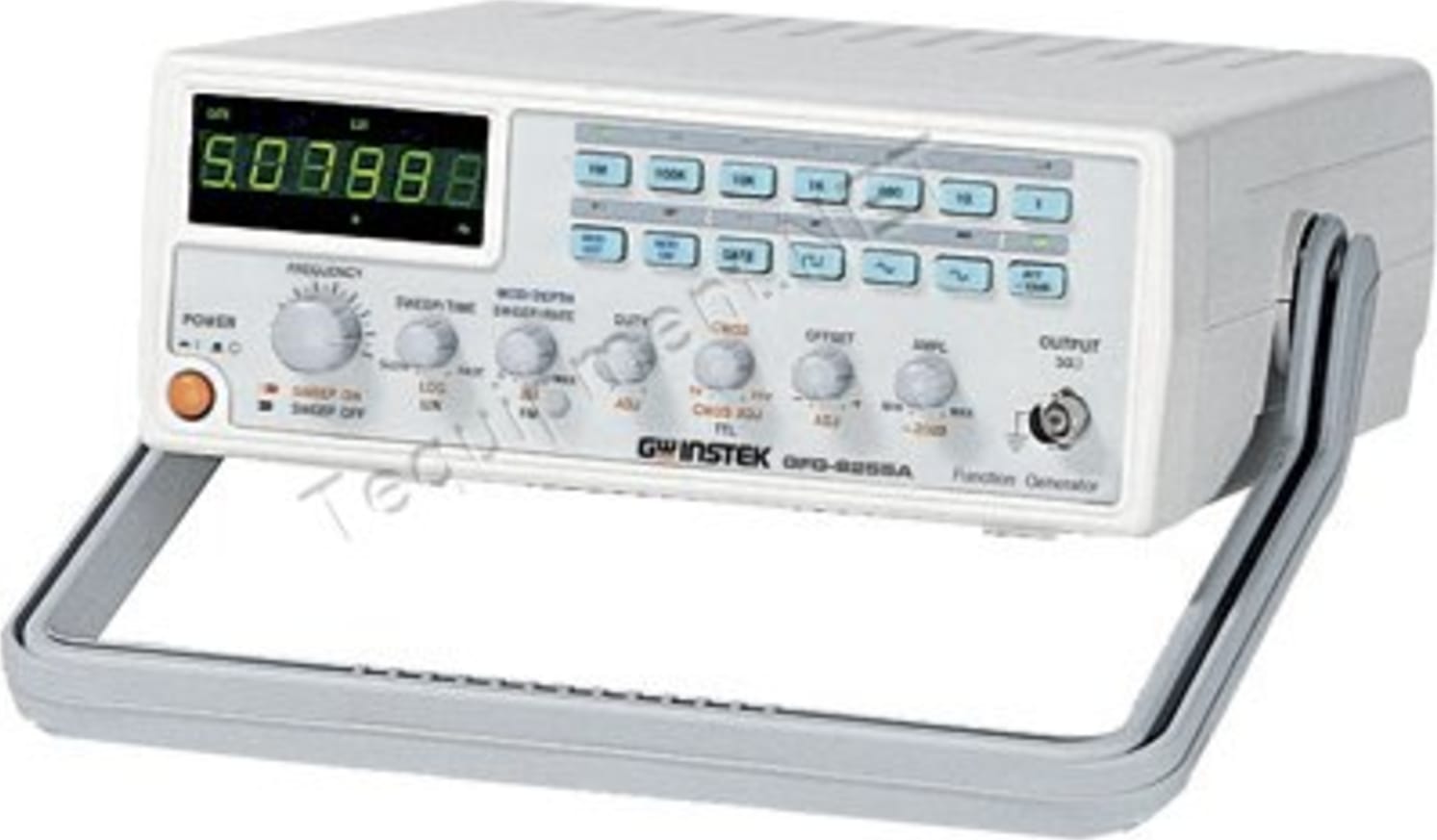

Instek GFG-8255A 5MHz Function Generator

Name: Instek GFG-8255A 5MHz Function Generator
Brand: Instek
SKU: InstekGFG-8255A
Price: 375.99 USD
Availability: InStock

0 reviews | Model: Instek GFG-8255A

Compare

5MHz Function Generator w/ Ext.counter, sweep, AM/FM

0.5Hz ~ 5MHz Frequency Range
Sine, Square, Triangle, Ramp, TTL and CMOS Output Waveforms
External Voltage Controlled Frequency (VCF) Function
Duty Cycle Control with Signal Inversion Capability
Variable DC Offset Control
Two Step (-20dB x 2) and Variable Attenuator
Built-in 6 Digit Counter with INT/EXT Function up to 150MHz
INT/EXT AM/FM Modulation
LIN/LOG Sweep Mode
Gate Controlled Voltage (GCV) Output for Synchronisation

View Product Details

List Price: $418.95

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Adapter Kits
Function Generator / Frequency Counter Kits

for the Instek GFG-8255A

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Cal Test CT4036 Function Generator And Freq. Counter Accessory Kit

Catalog: CT4036

(8)

In Stock!

Add to Cart

Instek GFG-8255A 5MHz Function Generator with Counter, Sweep Mode & AM/FM Modulation

The Function Generator series are stable low distortion instruments which generate signals in the frequency range up to 5MHz. Typical applications include a wide range of audio response testing applications, vibration testing, servo system evaluation, ultra sound applications, and etc.

These instruments include the following features: logarithmic and linear sweep capabilities, together with a built in frequency counter. The sweep capability simplifies the task of finding resonant points of speakers, filter networks and other networks/structures. An oscilloscope may be connected to this instrument for the response to be displayed. The counter can be switched to measure and display the frequency of an external signal up to 150MHz.

GFG-8200A Series ADDITIONAL FEATURES

Low distortion waveforms (sine, triangular and square) and ramp signal.
Signal output in seven decade stages, 0.5Hz to 5MHz for GFG-8250A/8255A, 0.3Hz to 3MHz for GFG-8215A/8216A/8217A/8219A.
Adjustable sweep time and sweep width both in linear and logarithmic modes.
Duty cycle control with signal inversion capability.
External Voltage controlled Frequency (VCF).
AM or FM modulation modes with internal or external modulation control.
A second output for TTL or adjustable CMOS pulses.
50 ohm main signal output with DC offset adjustment and 20dB attenuation capability.
Supplied with two BNC test leads and AC power cord set.

Main Output
Frequency Range	0.5Hz ~ 5MHz in 7 ranges
Amplitude	> 10Vpp (into 50W load)
Impedance	50W ±10%
Attenuator	-20dB ±1dB x 2
DC Offset	<-5V ~ >+5V (into 50W load)
Duty Control	80% : 20% : 80% to 1MHz continually variable
Display	6 digit LED display
Sine Wave
Distortion	£1%, 0.5Hz ~ 100kHz THD £ -30dB fundamental in all ranges (specification applied from MAX to 1/10 level)
Flatness	£0.3dB, below 500kHz
Triangle Wave
Linearity	³98% 0.5Hz to 100kHz ³95% 100kHz to 5MHz
Square Wave
Symmetry	±2% 1Hz ~ 100kHz
Rise/Fall Time	£50ns at maximum output (into 50W load)
CMOS Output
Level	4Vpp ±1Vpp ~ 14.5Vpp ±0.5Vpp adjustable
Rise/Fall Time	£120ns
TTL Output
Level	³3Vpp
Fan Out	20 TTL Loads
Rise/Fall Time	£25ns
VCF
Input Voltage	0V ~ 10V ±1V (100:1)
Input Impedance	10kW ±10%
GCV
Output Voltage	To set the voltage between 0V ~ 2V as per different frequency
Sweep Operation
Sweep/Manual	Switch selectable
Sweep Rate	100:1 ratio maximum adjustable
Sweep Time	0.5s ~ 30s adjustable
Sweep Mode	Lin/Log switch selectable
Amplitude Modulation
Depth	0 ~ 100%
MOD Frequency	400Hz (INT), DC ~ 1MHz (EXT)
Carrier Bandwidth	100Hz ~ 5MHz (-3dB)
EXT Sensitivity	£10Vpp for 100% modulation
Frequency Modulation
Deviation	0 ~ ±5%
MOD Frequency	400Hz (INT), DC ~ 20kHz (EXT)
EXT Sensitivity	£10Vpp for 10% modulation
Frequency Counter
INT/EXT	Switch selectable
Range	0.5Hz to 5MHz (EXT 5Hz ~ 150MHz)
Accuracy	Time base accuracy ±1 count
Time Base	±20ppm (23°C ±5°C) after 30 minutes warm up
Resolution	Maximum resolution is 100nHz for 1Hz and 1Hz for 100MHz
Input Impedance	1MW // 150pF
Sensitivity	£35mVrms (5Hz ~ 100MHz) £45mVrms (100MHz ~ 150MHz)
Other Details
Power Source	AC 115V/230V ±15%, 50/60Hz
Dimensions	251mm (w) x 91mm (h) x 291mm (d)
Weight	2.4kg approx

Tech Specs

Generators / Counters/Function Generator Template
Channels	1
Frequency Maximum	5 MHz
Frequency Minimum	0.5 Hz
Functions	CMOS, Pulse, Sine, Square, Sweep, Triangle, TTL
Max Amplitude Vpp @ 50 ohms	10 V
Arbitrary	No
Screen Type	LED
Color Screen	No
Triggering	No
Counter that displays frequency on screen.	Yes
Modulation Types	AM, FM
Graphical Display	No
Direct Digital Synthesis (DDS)	No
PC Based	No
Test Equipment General Attributes
Warranty	2 YEARS
Warranty Details	Instek test equipment is warranted against manufacturer defects in workmanship and materials for a period of two years.
Product Weight	6 LBS
Product Height	291 MM (11.46 IN)
Product Length	251 MM (9.88 IN)
Product Width	91 MM (3.58 IN)
Shipping Weight	8 LBS
Data Logging	No
ECCN Number	EAR99
Calibration Included	Factory Calibration
Power Supply Voltage	120V/220V Universal
Country of Origin	China
Shipping Height	6.00 IN
Shipping Length	15.00 IN
Shipping Width	11.00 IN
Other Information	Frequency Range: 0.5Hz ~ 5MHz in 7 ranges Amplitude: 10Vpp (into 50W load) Impedance: 50W ?10% Attenuator: -20dB ?1dB x 2 DC Offset: -5V ~ +5V (into 50W load) Duty Control: 80% : 20% : 80% to 1MHz continually variable Display: 6 digit LED display Distortion: ?1%, 0.5Hz ~ 100kHz THD ? -30dB fundamental in all ranges (specification applied from MAX to 1/10 level) Flatness: ?0.3dB, below 500kHz Linearity: ?98% 0.5Hz to 100kHz?95% 100kHz to 5MHz Symmetry: ?2% 1Hz ~ 100kHz Rise/Fall Time: ?50ns at maximum output (into 50W load) Level: 4Vpp ?1Vpp ~ 14.5Vpp ?0.5Vpp adjustable Rise/Fall Time: ?120ns Level: ?3Vpp Fan Out: 20 TTL Loads Rise/Fall Time: ?25ns Input Voltage: 0V ~ 10V ?1V (100:1) Input Impedance: 10kW ?10% Output Voltage: To set the voltage between 0V ~ 2V as per different frequency Sweep/Manual: Switch selectable Sweep Rate: 100:1 ratio maximum adjustable Sweep Time: 0.5s ~ 30s adjustable Sweep Mode: Lin/Log switch selectable Depth: 0 ~ 100% MOD Frequency: 400Hz (INT), DC ~ 1MHz (EXT) Carrier Bandwidth: 100Hz ~ 5MHz (-3dB) EXT Sensitivity: ?10Vpp for 100% modulation Deviation: 0 ~ ?5% MOD Frequency: 400Hz (INT), DC ~ 20kHz (EXT) EXT Sensitivity: ?10Vpp for 10% modulation INT/EXT: Switch selectable Range: 0.5Hz to 5MHz (EXT 5Hz ~ 150MHz) Accuracy: Time base accuracy ?1 count Time Base: ?20ppm (23?C ?5?C) after 30 minutes warm up Resolution: Maximum resolution is 100nHz for 1Hz and 1Hz for 100MHz Input Impedance: 1MW // 150pF Sensitivity: ?35mVrms (5Hz ~ 100MHz)?45mVrms (100MHz ~ 150MHz)
