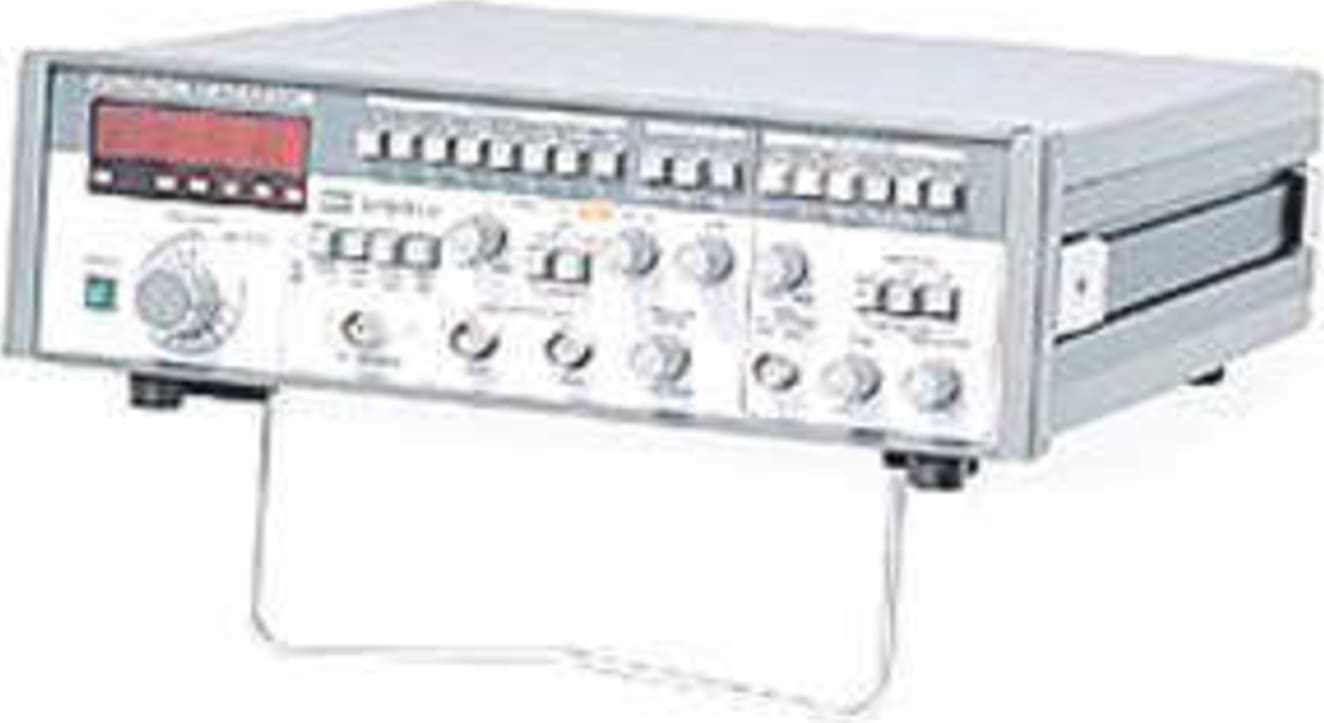

| Main Output | Waveforms: | Sine, Square, Triangle, ± Ramp, Pulse, AM, FM, Sweep, Triggered and Gated |
| Amplitude: | >20Vpp open circuit, >10Vpp into 50W load (at 1kHz) |
| Impedance: | 50W ±10% |
| Attenuator: | 1:1, 10:1, 100:1, 1000:1 and > 10:1 continuous control |
| DC Offset: | <-10V to >+10V, <-5V to >+5V (50W load) |
| Variable Symmetry: | 80:20:80 to 1MHz |
| Frequency Range: | 0.1Hz to 13MHz in 8 decade ranges |
| Sine Wave | Distortion: | <0.5% (-46dB) THD from 10Hz ~ 50kHz
>30dB below fundamental from 50kHz ~ 13MHz |
| Flatness: | <±3% from 10Hz ~ 100kHz, <±10% from 100kHz ~ 10MHz |
| Triangle Wave | Linearity Error: | <1% at 100Hz |
| Square Wave | Symmetry: | <2% 0.1Hz ~ 100kHz |
| Rise/Fall Time: | <20ns |
| Sync Output | Impedance: | 50W ±10% |
| Level: | >1Vpp open circuit |
| Modulation Characteristics | Types: | AM, FM, Sweep, Trigger, Gate or Burst (INT and EXT) |
| Wave Forms: | Sine, Square, Triangle, Ramp or Variable Symmetry Pulse |
| Frequency Range: | 0.01Hz ~ 10kHz in 3 ranges |
| Output Level: | >1Vpp into 10kW |
| Amplitude Modulation | Depth: | 0 ~ 100% |
| Modulation Frequency: | 0.01Hz ~ 10kHz (internal), DC ~ 1MHz (external) |
| Carrier Bandwidth: | <100Hz ~ >5MHz (-3dB) |
| External Sensitivity: | <10Vpp for 100% modulation |
| Frequency Modulation | Deviation: | 0 to ±5% (internal) |
| Modulation Frequency: | 0.01Hz ~ 10kHz (internal), DC ~ 50kHz (external) |
| Sweep Characteristics | Sweep Width: | >100:1 |
| Sweep Rate: | 0.01Hz ~ 10kHz, 90:10 ramp |
| Sweep Mode: | Linear sweep and symmetry control |
| Ramp Output: | 0 to > -4Vpp into 5kW |
| Gate Characteristics | Start/Stop Phase Range: | +90° to -80° |
| Frequency Range: | 0.1Hz ~ 1MHz (maximum to 10MHz) |
| Ext Gate Frequency Range: | DC to 1MHz, TTL compatible |
| VCF | Range: | 1000:1 (0 to -2V ±20%) |
| Input Linearity: | <0.5% to 1MHz, <5% to 10MHz (dial set at 10) |
| Input Impedance: | 2.8kW ±5% |
| GCV Output | Output Voltage: | 0 to +2V proportional to dial setting or sweep frequency |
| Frequency Counter | Display: | 6 digit 0.3" LED display |
| INT/EXT: | Switch selectable |
| Accuracy: | ±time base accuracy ±1 count |
| Time Base: | Oscillation frequency 10MHz ±10ppm (23°C ±5°C) |
| Resolution: | 0.1Hz, 1Hz, 10Hz, 100Hz, 1kHz |
| Range: | 0.1Hz to 13MHz (EXT 5Hz ~ 30MHz) |
| EXT Sensitivity: | <20mVrms |
| Other Details | Power Source: | AC 100V/120V/220V/240V ±10%, 50/60Hz |
| Accessories: | Power cord x 1, Instruction manual x 1, Test Lead (type GTL-101) x 2 |
| Dimensions: | 310mm (w) x 99mm (h) x 380mm (d) |
| Weight: | 7.2kg approx |
