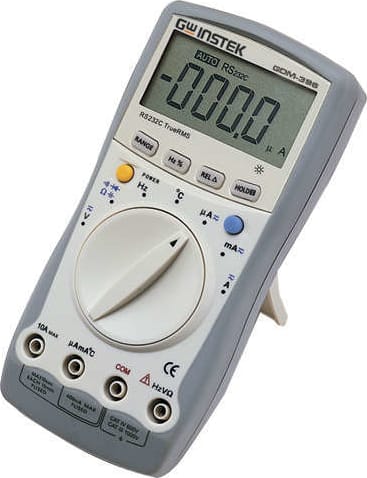

Instek GDM-396 3 3/4 digits Hand-Held Digital Multimeter

Name: Instek GDM-396 3 3/4 digits Hand-Held Digital Multimeter
Brand: Instek
SKU: InstekGDM-396
Price: 83.69 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | Model: Instek GDM-396

Compare

3 3/4 digits

3999 Counts Auto/Manual Ranging
Capacitance, Frequency Measurement
Continuity Beeper/Diode Test
High Energy Fuse for 10A Range
Data Hold/Relative Mode
True RMS/RS232C

View Product Details

List Price: $96.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

DMM Probe Kits

for the Instek GDM-396

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

Handheld Digital Multimeter - v3 3/4 digits

The GDM-300/400 Series Hand Held DMM are a compact, high precision, battery operated multimeter series designed to meet most of the daily needs for design engineers as well as service engineers. The GDM-300/400 series design is driven by mobile-oriented features, such as automatic power down to preserve battery life, a large backlight display for crisp viewing, a rotary selector switch and clear-cut push buttons to ease operation. The basic functions match the depth of bench-top multimeters: fuse-protected current input, true RMS for accurate AC measurements, Auto ranging, Duty cycle, and Relative mode. These compact, reliable, and economical devices are ideal for any engineer.

DC VOLTAGE
Range	400mV, 4V, 40V, 400V, 1000V
Best Accuracy	±(0.8%rdg + 1digit)
Input Impedance	10MΩ
AC VOLTAGE (50Hz ~ 400Hz)
Range	4V, 40V, 400V, 750V
Best Accuracy	±(1%rdg + 5 digits)
Input Impedance	10M Ω
DC CURRENT
Range	400uA, 4mA, 40mA, 400mA, 4A, 10A
Best Accuracy	±(1.5%rdg + 5 digits)
RESISTANCE
Range	400 Ω ~ 40M Ω 6 ranges
Best Accuracy	±(1%rdg + 2 digits)
GENERAL
Continuity Beeper	Buzzer sounds if conductance less than 70 Ω
Open Voltage Diode Test	3.0V typical
Special Function	Duty cycle, Auto Ranging
Display	3999 counts
Power Source	Single 9V battery (6F22)
Accessories	Test leads, Instruction manual, battery
Dimensions & Weight	85(W) x 177(H) x 40(D) mm , Approx.330g
CAPACITANCE
Range	40nF, 400nF, 4 μ F, 40 μ F,100uF
Best Accuracy	±(3%rdg + 5 digits)
FREQUENCY
Range	10Hz ~ 10MHz
Best Accuracy	±(0.1%rdg + 3digits)
Temperature(°C)
Range	-40°C~1000°C
Best Accuracy	±1%+3

Tech Specs

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	Yes
Measures DC A	Yes
True RMS	Yes
Maximum Voltage AC	750 V
Resolution AC Volts	1 mV
Maximum Voltage DC	100 V
Resolution DC Volts	1 mV
Maximum Current AC	10 A
Minimum Current AC	400 uA (0.4 mA)
Resolution AC Current	1 uA (0.001 mA)
Maximum Current DC	10 A
Minimum Current DC	400 uA (0.4 mA)
Resolution DC Current	1 mA
Basic Accuracy V DC	+ and - (0.8%rdg + 1digit)
# Digit Display	4
Counts	3999 .
Backlight	Yes
Manual/Autoranging	Both
Decibels	No
Resistance	Yes
Frequency	Yes
Capacitance	Yes
Temperature	Yes
Diode Testing	Yes
Intrinsically Safe	No
Peak Hold	Yes
Overload Protector	No
Wireless Display	No
Data Hold	Yes
Low-Pass Filter	No
Test Equipment General Attributes
Unique Features	TRMS feature
Product Height	177 IN
Product Length	40 IN
Product Width	85 IN
Shipping Height	2.50 IN
Shipping Length	8.00 IN
Shipping Width	6.00 IN
