Instek SPS-2415-OB DC Power Supplies / Lab Power Supplies - Outputs: Single, Voltage Output 1: Variable, Max Voltage Output 1: 24 V

Name: Instek SPS-2415-OB DC Power Supplies / Lab Power Supplies - Outputs: Single, Voltage Output 1: Variable, Max Voltage Output 1: 24 V
Brand: Instek
SKU: InstekSPS-2415-OB
Price: 387.60 USD
Availability: InStock

0 reviews | Model: Instek SPS-2415-OB

Compare

360W DC Switching Power Supply 0-24V, 0-15A - This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit.

This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit.
0-24V, 0-15A
Dual Measurement Display
0.01 % High Regulation
Constant Voltage and Constant Current Operation
High Efficiency
High Power Density
Over Voltage Protection
Remote Output ON/OFF Control

View Product Details

List Price: $408.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Power Supply Kits

for the Instek SPS-2415-OB

Cal Test CT4041 Power Supply Accessory Kit ( rated for up to 20amps ) Get the most...

Catalog: CT4041

(24)

In Stock!

Add to Cart

Instek SPS-2415 0-24V, 0-15A D.C. Switching Power Supply

With more extensive range of input voltage
With high frequency operation can reduce the size of power transformer
With small size, light weight and high density power
Entire efficiency rate higher up to 70%.
Auto control the voltage and current mode.
3 outputs with full Voltage control
Zero adjustment for the output of voltage and current

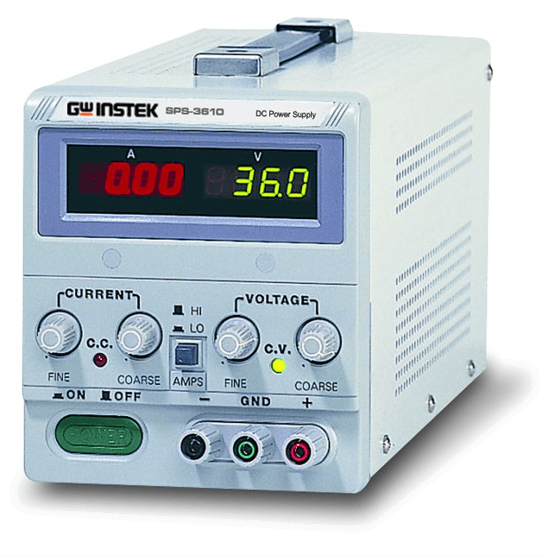

The SPS-Series are single output, 360W, switching DC power supply. OVP protects the SPS-Series and their load from unexpected conditions. High regulation is maintained at 0.01%. Remote sensing adds extra level of precision by compensating cable losses between loads. Turning the output On/Off from external device is available through Remote control terminals. The GPS-Series are an ideal solution for power-efficient bench-top or portable applications requiring high regulation.

The series of switching power supplies for measuring instrument have ruled out the inconvenience of big volume and heavyweight of a traditional power supply possess.
The output voltage and current is controlled by two variable resistors with coarse and fine regulation for more handy and precise adjustment.

	SPS-1230	SPS-1820	SPS-2415	SPS-3610	SPS-606
OUTPUT
Voltage	0~12V	0~18V	0~24V	0~36V	0~60V
Current	0~30A	0~20A	0~15A	0~10A	0~6A
CONSTANT VOLTAGE OPERATION
Line Regulation	≤ 5mV
Load Regulation	≤ 5mV
Ripple & Noise	≤5mVrms, 100mVp-p 20Hz ~ 20MHz
Recovery Time	≤500µS ( 50% Load change, Minimum load 0.5A )
Temp. Coefficient	≤100 ppm/°C
Output Range	0 to rating voltage continuously adjustable
CONSTANT CURRENT OPERATION
Line Regulation	≤3mA
Load Regulation	≤3mA
Ripple Current	≤3mArms (SPS-606) ≤5mArms (SPS-3610) ≤10mArms (SPS-2415) ≤10mArms (SPS-1820) ≤30mArms (SPS-1230)
Output Range	0 to rating current continuously adjustable (Hi/Lo range switchable)
METER
Type	3 1/2 Digit 0.39" LED Display
Accuracy	±( 0.5% of rdg + 2 digits )
INSULATION
Chassis and Terminal	20MΥ or above (DC 500V)
Chassis and AC Cord	30MΩ or above (DC 500V)
POWER SOURCE
	AC 115V/230V ±15%, 50/60Hz
DIMENSIONS & WEIGHT
	128(W) x 145(H) x 285(D)mm Approx. 3.2kg

Tech Specs

Power Supplies/DC Power Supplies Template
Outputs	Single
Voltage Output 1	Variable
Max Voltage Output 1	24 V
Programmable	No
Current Output 1	Variable
Max Current Output 1	15 A
Meter Type	Digital
Switching	Yes
Constant current/voltage	Yes
Remote Sensing	Yes
General Attributes
Product Weight	3 KILOS (6.61 LBS) Product Weight Approx. 3.2kg
Product Height	145 MM (5.71 IN)
Product Length	285 MM (11.22 IN)
Product Width	128 MM (5.04 IN)
Shipping Height	9.25 IN
Shipping Length	16.50 IN
Shipping Width	7.25 IN
Country of Origin	China
Test Equipment General Attributes
Unique Features	Compact, light weight, economic.
Calibration Included	Factory Calibration
Power Supply Voltage	120V 50/60 Hz, 220V Only
Other Information	Voltage: 24V Current: 15A Line Regulation: 5mV Load Regulation: 5mV Ripple & Noise: 5mVrms, 100mVp-p 20Hz ~ 20MHz Recovery Time: 500µS ( 50% Load change, Minimum load 0.5A ) Temp. Coefficient: 100 ppm/?C Output Range: 0 to rating voltage continuously adjustable Line Regulation: 3mA Load Regulation: 3mA Ripple Current: 10mArms Output Range: 0 to rating current continuously adjustable (Hi/Lo range switchable) Type: 3 1/2 Digit 0.39" LED Display Accuracy: ?( 0.5% of rdg + 2 digits ) Chassis and Terminal: 20MO or above (DC 500V) Chassis and AC Cord: 30MO or above (DC 500V)
