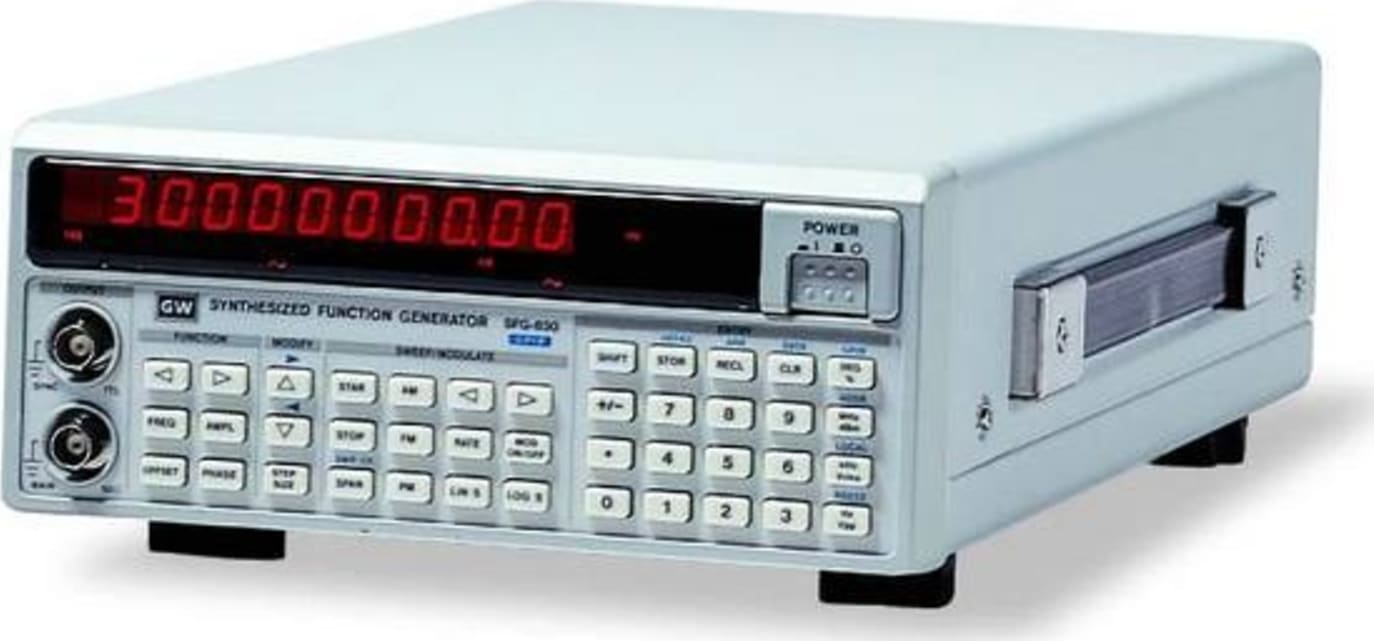

The SFG-830 Series 30MHz Arbitrary Function Generator is one of the most versatile and highly qualitative signal generators utilizing DDS techniques. They not only offer the standard generator functions but also provide accurate modulations, sweep, and arbitrary waveform generation. The free editing software allows professional users to obtain, edit, or create frequency and amplitude characteristics as desired through RS-232C interface or GPIB interface (SFG-830G). The SFG-830 Series is suited to simulate all signals encountered including both ideal and abnormal conditions. For applications, such as product design, manufacturing testing, automotive, and sensor stimulation, the SFG-830 Series is the best solution provider for generating arbitrary waveforms.

• The depth of AM modulation : 0% ~ 100%
• Sweep range : 10mHz ~ 1kHz
• With FM and PSK modulation functions, and the users can choose the modulation signal source among sine wave, square wave, triangle w ave, ramp wave, and arbitrary wave with modulation frequency up to 10kHz.
• The digital modulation and sweep functions provide you a stable and high - resolution (10mHz) modulation environment.
• SFG-830 has complete environment of computer interface, including standard RS232 and optional GPIB, to fulfill your requirement of automatic test and control
• The arbitrary waveform function offers 12000 × 12bits data length for free compiling. The user can compile not only with keys on the front panel, but also through a compiling software “Arbitrary Waveform Composer Software for Windows” (optional).
