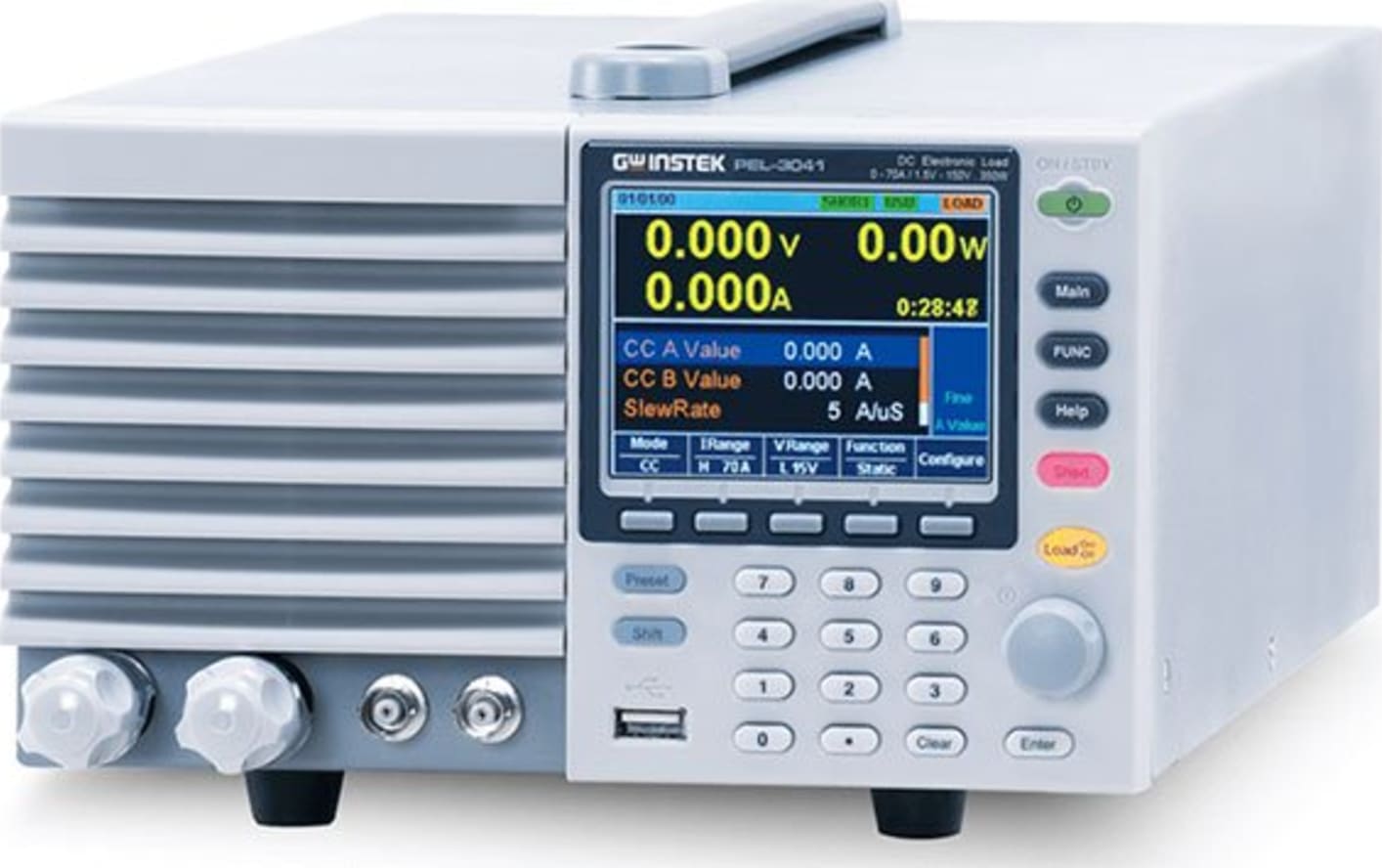

Instek PEL-3041 350W Programmable DC Electronic Load

0 reviews | Model: Instek PEL-3041


350W Programmable Electronic Load

  • 350W Programmable DC Electronic Load
  • Operating voltage (DC):1.5V~150V
  • Operating Mode : C.C / C.V / C.R / C.P / CC+CV / CR+CV / CP+CV
  • Parallel Connection of Inputs for Higher Capacity (Max : 9,450W)
  • Support of High Slew Rate:Max 16A/us
  • Run Program Function(GO/NO GO Test)
  • Sequence Function for High Efficient Load Simulations
  • Commands are compatible with Kikusui PLZ-4W model.
  • Dynamic(Switching) Function:0.0166Hz ~20kHz
  • Soft Start Function:Off / On(1~200ms, Res:1ms)
  • Adjustable OCP / OVP / OPP / UVP Setting
  • Short Circuit Function
  • Timer function : Elapsed Time of load on
  • Cut Off Time(Auto Load Off Timer ):1s to 999h 59min 59s or Off
  • External Channel Control / Monitoring via Analog Control Connector
  • Setup Memories:100 sets
  • 3.5 Inch TFT LCD Display
  • Multi Interface : USB 2.0 Device / Host , RS-232 , GPIB (Optional)
  • 2 Year Warranty
View Product Details

List Price: $3,528.00

Your Price: $3,175.20

Sign-in for GSA and EDU Pricing!

In Stock:
  • Free shipping over $99 - Code: FREESHIP
  • View Payment Options
Product Expert

Have a question? Ask an expert.


Items in This Series

Instek PEL-3041Instek PEL-3021Instek PEL-3111Instek PEL-3211
ProductInstek PEL-3041 350W Programmable Electronic LoadInstek PEL-3021 175W Programmable Electronic LoadInstek PEL-3111 1050W Programmable Electronic LoadInstek PEL-3211 2100 W Booster Unit [for use with PEL-3111 only]
Price
In Stock
Watts350 Watts175 Watts1050 Watts2100 Watts
Max Current70 A35 A210 A420 A
Max Voltage150 V150 V150 V150 V
