Performance
- Wide DC/AC voltage range (200mV ~ 600VAC/1000VDC)
- Wide AC/DC current range (30mA ~ 300A)
- Low drift at all ranges
- Low temperature coefficients
Features
- Shunts: 0.001Ω, 0.01Ω, 0.1Ω, 1Ω, 10Ω
- Current Meter (6 1/2 digits current meter)
- Voltage Meter (6 1/2 digits voltage meter)
- Current Monitor
- Voltage and current can be measured at the same time.
PCS-1000 Overview

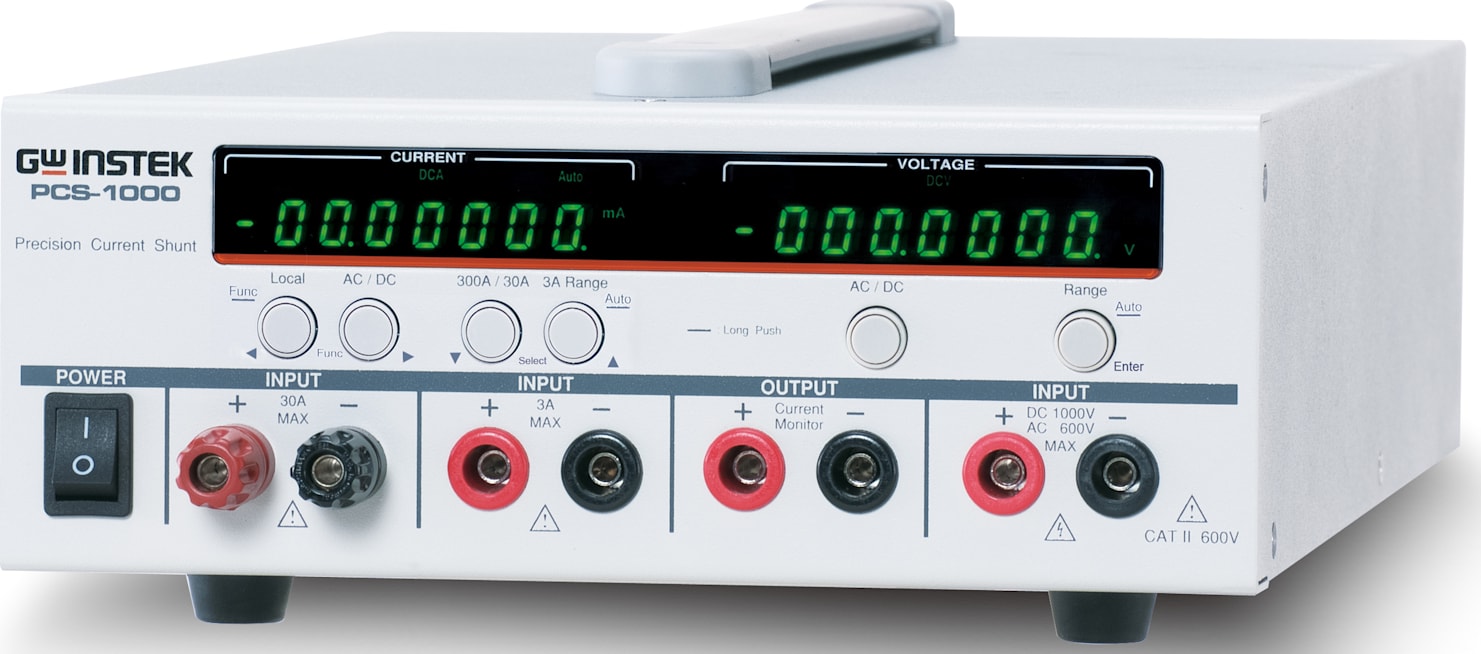

PCS-1000 is a High-Precision D.C. and A.C. Current Shunt Meter which carries built-in current shunts and high-accuracy current measurement circuits. PCS-1000 not only measures current in five current levels ─300A, 30A, 3A, 300mA and 30mA, but also measures voltage at 6 1/2-digit resolution simultaneously. This unique feature puts PCS-1000 in an unprecedented position among all the shunt meters available in the market today. After a long time operation, PCS-1000 is able to maintain high measurement accuracy in spite of the temperature variation.
This is due to its core design based on the high stability and low temperature coefficient shunts. PCS-1000, a verification-lab level current and voltage measurement equipment, is suitable for the R&D, quality verification and testing jobs of all power products such as power supply, communications system power, server power and electronic load. The maximum voltage/current measurement ranges of PCS-1000, including DC 1000V / AC 600V / AC 300A / DC 300A, meet all current and voltage measurement challenges of every power industry.*
*PCS I000 can measure A.C. voltage and current ' € simultaneously but it can't measure phase.
Therefore, it does not provide power measurement function.
Simultaneously Conduct Precision And Stable Current And Voltage Measurement
PCS-1000 High-Precision Current Shunt Meter can simultaneously measure current and voltage. Compared with the test of traditional models or meters in other brands, PCS-I 000 is easy-to-use in connection and there is no requirement of any additional instrument. The following diagram shows the connection method of measuring voltage on the load and measuring current simultaneously.
A.C./D.C. Voltage and Current Level Selection
PSC-1000 has five selectable voltage and current measurement levels to meet users‘ terminal measurement requirements by manual or automatic selection. In selecting current levels, users must, at the same time, select corresponding current input terminal. Please refer to respective current input terminals :
