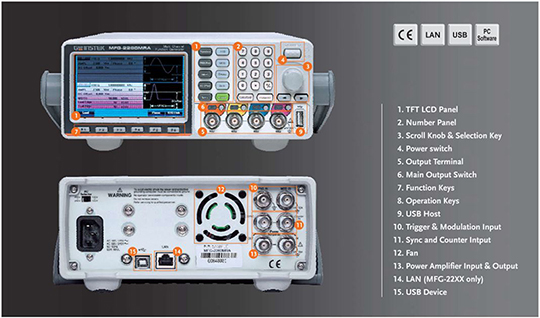

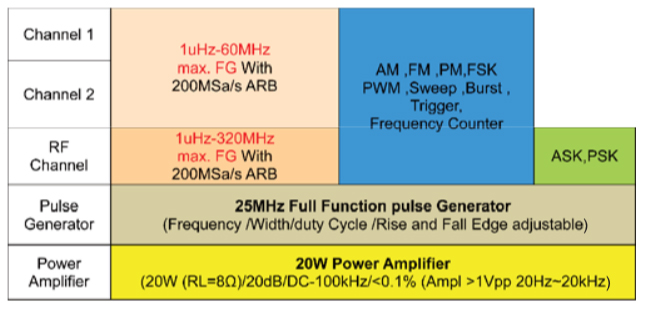

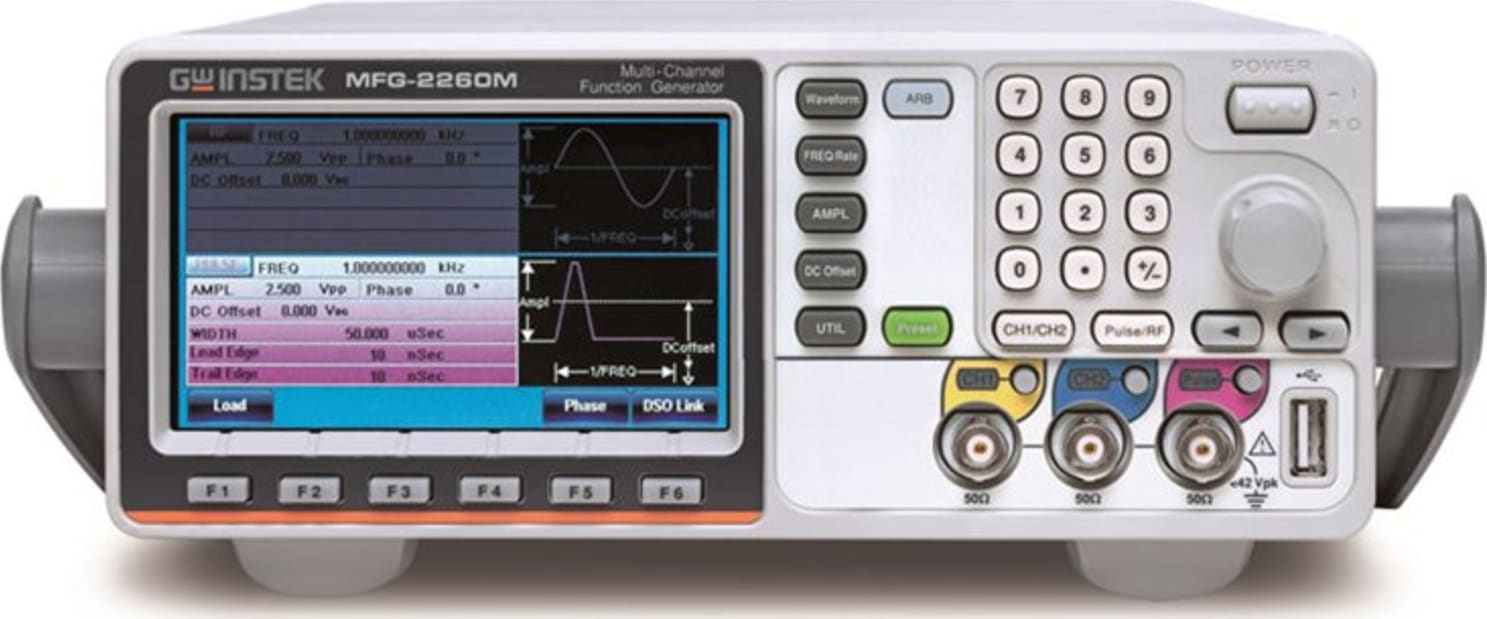

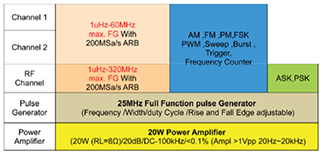

CH1/CH2 |
Arbitrary
Functions |
Arb Function
Sample Rate
Repetition Rate
Waveform Length
Amplitude Resolution
Non-volatile Memory
User-defined Output Section
User-defined Output Marker Section
Output Mode |
Built-in
200 MSa/s
100MHz
16k points
14 bits
10sets 16k points(1)
From point 2 ~ 16384 (userdefine)
From point 2 ~ 16384 (userdefine)
1~1048575 cycles or infinite mode |
Frequency
Characteristic |
Range
Resolution
Accuracy Stability
Aging
Tolerance |
Sine 60MHz(max)
Square 25MHz(max)
Triangle, Ramp 1MHz
1µHz
±20 ppm
±1 ppm, per 1 year
≤1µHz |
Output
Characteristics (2) |
Amplitude Range
Accuracy
Resolution
Flatness
Units |
1mVpp to 10 Vpp (into 50Ω)
2mVpp to 20 Vpp (open-circuit)
±2% of setting ±1 mVpp (at 1 kHz/into 50Ω without DC offset)
0.1mV or 4 digits
± 1% (0.1dB) ≤1MHz ; ± 3% (0.3dB) ≤50 MHz ;
± 10% (0.9dB) ≤160MHz ; ± 30% (3dB) ≤320MHz
(sinewave relative to 1 kHz/into 50Ω)
Vpp, Vrms, dBm |

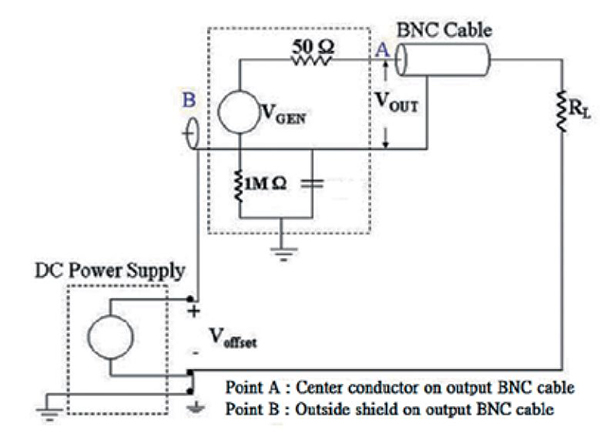

Offset |
Range
Accuracy |
±5 Vpk AC + DC (into 50Ω); ±10Vpk AC + DC (open circuit)
1% of setting + 5mV + 0.5% of amplitude |
Waveform
Output |
Impedance
Protection
Ground Isolation |
50Ω typical (fixed); >10MΩ (output disabled)
Short-circuit protected; Overload relay automatically disables main output
42Vpk max |
Sync Output |
Range
Impedance
Ground Isolation |
TTL-compatible into>1kΩ
50Ω standard
42Vpk max |
Sine Wave Characteristics (3) |
Harmonic
Distortion
Total Harmonic Distortion |
-60 dBc DC~200kHz, Ampl > 0.1 Vpp
-55 dBc 200kHz ~ 1 MHz, Ampl > 0.1 Vpp; >
-30 dBc 10MHz ~ 320MHz, Ampl > 0.1Vpp
-45 dBc 1MHz ~ 10 MHz, Ampl 0.1Vpp;
< 0.1% (Ampl>1Vpp) DC~100 kHz |
Square Wave Characteristics |
Rise/Fall Time
Overshoot
Asymmetry
Variable duty Cycle
Jitter |
<15ns
<5%
1% of period +5 ns
0.01% to 99.99% (limited by the current frequency setting)
20ppm +500ps(4) |
Ramp Characteristics |
Linearity
Variable Symmetry |
< 0.1% of peak output
0% ~ 100% |
Pulse Characteristics |
Frequency
Pulse Width
Variable duty Cycle
Overshoot
Jitter |
1uHz ~ 25MHz
≧20nS (limited by the current frequency setting)
0.01% ~ 99.99% (limited by the current frequency setting)
<5%
20ppm + 500ps(4) |
Pulse Generator |
Pulse Generator |
Amplitude
Offset
Frequency
Pulse Width
Variable duty Cycle
Leading and Trailing Edge Time(5)
Overshoot
Jitter |
1mVpp ~ 2.5 Vpp (into 50Ω)
2mVpp ~ 5 Vpp (open-circuit)
±1 Vpk AC + DC (into 50Ω)
±2Vpk AC + DC (Open circuit)
1uHz ~ 25MHz
20nS ~ 999.9ks(limited by the current frequency setting)
0.01% ~ 99.99%(limited by the current frequency setting)
10nS ~ 20S(1ns resolution)(limited by the current frequency and pulse width settings)
<5%
100ppm + 500ps(4) |

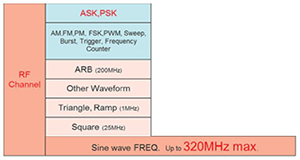

RF Generator |
|
Waveforms
Amplitude (into 5Ω)
Offset
Frequency |
Sine, Square, Ramp, Pulse, Noise, ARB
1mVpp to 2 Vpp (MFG-2XXXMF); 1mVpp to 1 Vpp (MFG-2XXXMR)
±1 Vpk AC + DC (into 50Ω); ±2Vpk AC + DC (Open circuit)
1uHz ~ 160MHz (MFG-2XXXMF); 1uHz ~ 320MHz (MFG-2XXXMR) |
Modulation/Sweep |
Modulation Type
Sweep Type
Source |
AM, FM, PM, FSK, PWM (The detail same as CH1 modulation specification)
Frequency
INT/EXT(INT only for AM, FM, PM, PWM) |
PSK |
Carrier Waveforms
Modulating Waveforms
Internal Frequency
Phase Range
Source |
Sine, Square, Triangle, Ramp, Pulse
50% duty cycle square
2 mHz to 1 MHz
0 ~ 360.0
Internal/External |
ASk |
Carrier Waveforms
Modulating Waveforms
Internal Frequency
Amplitude Range
Source |
Sine, Square, Triangle, Ramp, Pulse
50% duty cycle square
2 mHz to 1 MHz
0 ~ 100.0%
Internal/External |
ARB Function |
Sample Rate
Waveform Length
Amplitude Resolution
User-defined output section
Jitter |
200 MSa/s
16k points
14 bits
From point 2 ~ 16384 (optional)
20ppm +5ns |

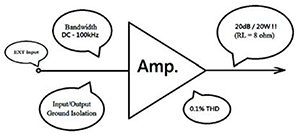

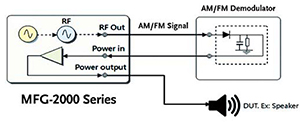

Power Amplifier |
Power Amplifier |
Input Impedance
Input Voltage
Working Mode
Gain
Output Power (RL=8)
Output Voltage
Output Current
Rise/Fall Time
Full Power Bandwidth
Overshoot
Total Harmonic Ddistortion
Ground Isolation |
10KΩ
1.25Vpmax
Constant Voltage
20dB
20W (Square)
12.5Vpmax
1.6Amax
<2.5uS
DC-100KHz
5%
< 0.1% (Ampl >1Vpp); 20Hz ~ 20 kHz
42Vpk max |
Advance Functions |
AM Modulation |
Carrier Waveforms
Modulating Waveforms
Modulating Frequency
Depth
Source |
Sine, Square, Triangle, Ramp, Pulse, Arb
Sine, Square, Triangle, Upramp, Dnramp
2mHz~ 20kHz (Int) DC ~ 20kHz (Ext)
0% ~ 120.0%
Internal / External |
FM Modulation |
Carrier Waveforms
Modulating Waveforms
Modulating Frequency
Peak Deviation
Source |
Sine, Square, Triangle, Ramp
Sine, Square, Triangle, Upramp, Dnramp
2mHz ~ 20kHz (Int) DC ~ 20kHz (Ext)
DC to max frequency
Internal / External |
PM |
Carrier Waveforms
Modulating Waveforms
Modulation Frequency
Phase Deviation
Source |
Sine, Square, Triangle, Ramp
Sine, Square, Triangle, Upramp, Dnramp
2mHz ~ 20kHz (Int) DC ~ 20kHz (Ext)
0 ~ 360.0
Internal / External |
SUM |
Carrier Waveforms
Modulating Waveforms
Modulation Frequency
SUM Depth
Source |
Sine, Square, Triangle, Ramp
Sine, Square, Triangle, Upramp, Dnramp
2mHz ~ 20kHz (Int) DC ~ 20kHz (Ext)
0% ~ 100.0%
Internal / External |
PWM |
Carrier Waveforms
Modulating Waveforms
Modulation Frequency
Phase Deviation
Source |
Sine, Square, Triangle, Ramp
Sine, Square, Triangle,Upramp, Dnramp
2mHz ~ 20kHz (Int) DC ~ 20kHz (Ext)
0% ~ 100.0% pulse width
Internal / External |
FSK |
Carrier Waveforms
Modulating Waveforms
Internal Frequency
Frequency Range
Source |
Sine, Square, Triangle, Ramp, Pulse
50% duty cycle square
2 mHz to 1 MHz
1μHz to max frequency
Internal / External |
Sweep |
Waveforms
Type
Sweep Direction
Start/Stop Freq
Sweep Time
Source
Trigger
Marker
Source |
Sine, Square, Triangle, Ramp
Linear or Logarithmic
Sweep up or sweep down
1uHz to max frequency
1ms to 500s
Internal / External
Single, External, Internal
Marker signal on falling edge (programmable)
Internal / External |
Burst |
Waveforms
Frequency
Pulse Count
Start/Stop Phase
Internal Frequency
Gate Source
Trigger Source |
Sine, Square, Triangle, Ramp
1uHz ~ Max Frequency
1~1000000 Cycles or intfinite
-360.0 ~ +360.0
1 us ~ 500 s
External Trigger
Single, External, Internal |
Specifications |
Trigger Delay |
NCycle, Infinite |
0s~100 s |
External Trigger Input |
Type
Input Level
Slope
Pulse Width
Input Impedance |
For FSK, Burst, Sweep
TTL Compatibility
Rising or Falling(Selectable)
>100ns
10kΩ, DC coupled |
External Modulation Input |
Type
Voltage Range
Input Impedance
Frequency
Ground Isolation |
For AM, FM, PM, SUM, PWM
±5V full scale
10kΩ
DC to 20kHz
42Vpk max |
Trigger Output |
Type
Level
Pulse Width
Maximum Rate
Fan-out
Impedance |
For FSK, Burst, Sweep
TTL Compatible into 50Ω
>450ns
1MHz
≥4 TTL Load
50Ω Typical |
Frequency Counter |
Range
Accuracy
Time Base
Resolution
Input Impedance
Sensitivity
Ground Isolation |
5Hz ~ 150MHz
Time Base accuracy±1count
±20ppm (23˚C ±5˚C)
The maximum resolution is : 100nHz for 1Hz, 0.1Hz for 100MHz
1kΩ /1pf
35mVrms ~ 30Vms (5Hz ~ 150MHz)
42Vpk max |
Dual Channel Function (CH1/CH2) |
Phase
Track
Coupling
Dsolink |
-180~180 Synchronize phase
CH2=CH1
Frequency (Ratio or Difference)
Amplitude and DC Offset |
Other |
Store/Recall
Interface
Display |
10 Groups of Setting Memories
LAN, USB
4.3 inch TFT LCD, 480 × 3 (RGB) × 272 |
General Specifications |
Power Source
Power Consumption
Operating Environment
Operating Altitude
Pollution Degree
Storage Temperature
Dimensions and Weight |
AC 100 ~ 240V, 50 ~ 60Hz or AC 100 ~ 120V, AC 220 ~ 240V, 50 ~ 60Hz
30W or 80W(With power amplifier)
Temperature to satisfy the specification : 18 ~ 28˚C ; Operating temperature : 0 ~ 40˚C ; Relative Humidity:
≤80%, 0 ~ 40˚C, ≤70%, 35 ~ 40˚C ; Installation category : CAT II
2000 Meters
IEC 61010 degree 2, Indoor use
-10 ~ 70˚C, Humidity :≤70%
266(W) x 107(H) x 293(D) mm ; Approx. 2.5kg |
