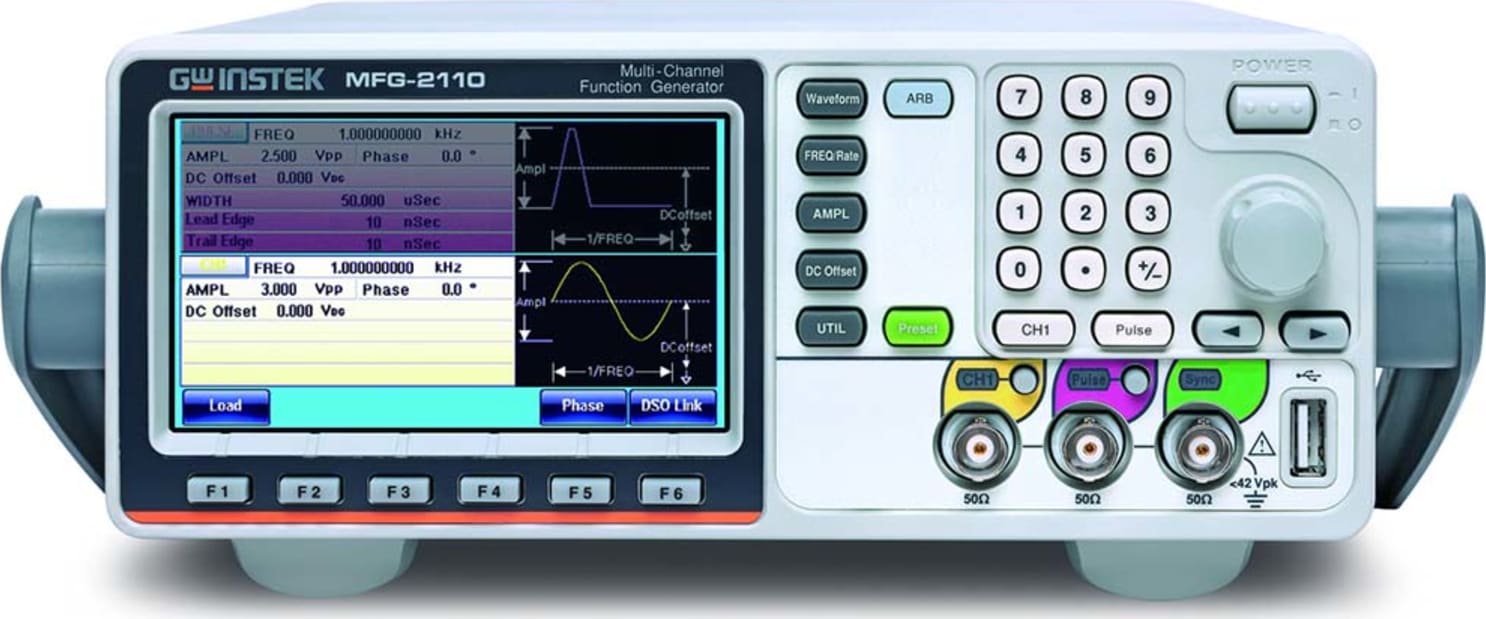

Arbitrary
Functions |
Arb Function
Sample Rate
Repetition Rate
Waveform Length
Amplitude Resolution
Non-volatile Memory
User-defined Output Section
User-defined Output Marker Section
Output Mode |
Built-in
200 MSa/s
100MHz
16k points
14 bits
10sets 16k points(1)
From point 2 ~ 16384 (userdefine)
From point 2 ~ 16384 (userdefine)
1~1048575 cycles or infinite mode |
Frequency
Characteristic |
Range
Resolution
Accuracy Stability
Aging
Tolerance |
Sine: 60MHz(max)
Square: 25MHz(max)
Triangle, Ramp: 1MHz
1µHz
±20 ppm
±1 ppm, per 1 year
≤1µHz |
Output
Characteristics (2) |
Amplitude Range
Accuracy
Resolution
Flatness
Units |
1mVpp to 10 Vpp (into 50Ω)
2mVpp to 20 Vpp (open-circuit)
±2% of setting ±1 mVpp (at 1 kHz/into 50Ω without DC offset)
0.1mV or 4 digits
± 1% (0.1dB) ≤1MHz ; ± 3% (0.3dB) ≤50 MHz ;
± 10% (0.9dB) ≤160MHz ; ± 30% (3dB) ≤320MHz
(sinewave relative to 1 kHz/into 50Ω)
Vpp, Vrms, dBm |
| Offset |
Range
Accuracy |
±5 Vpk AC + DC (into 50Ω); ±10Vpk AC + DC (open circuit)
1% of setting + 5mV + 0.5% of amplitude |
Waveform
Output |
Impedance
Protection
Ground Isolation |
50Ω typical (fixed); >10MΩ (output disabled)
Short-circuit protected; Overload relay automatically disables main output
42Vpk max |
| Sync Output |
Range
Impedance
Ground Isolation |
TTL-compatible into>1kΩ
50Ω standard
42Vpk max |
| Sine Wave Characteristics (3) |
Harmonic
Distortion
Total Harmonic Distortion |
-60 dBc DC~200kHz, Ampl > 0.1 Vpp
-55 dBc 200kHz 1 MHz, Ampl > 0.1 Vpp; -45 dBc 1MHz 10 MHz, Ampl 0.1Vpp;
-30 dBc 10MHz ~ 320MHz, Ampl > 0.1Vpp
< 0.1% (Ampl>1Vpp) DC~100 kHz |
| Square Wave Characteristics |
Rise/Fall Time
Overshoot
Asymmetry
Variable duty Cycle
Jitter |
<15ns
<5%
1% of period +5 ns
0.01% to 99.99% (limited by the current frequency setting)
20ppm +500ps(4) |
| Ramp Characteristics |
Linearity
Variable Symmetry |
< 0.1% of peak output
0% ~ 100% |
| Pulse Characteristics |
Frequency
Pulse Width
Variable duty Cycle
Overshoot
Jitter |
1uHz ~ 25MHz
≧20nS (limited by the current frequency setting)
0.01% ~ 99.99% (limited by the current frequency setting)
<5%
20ppm + 500ps(4) |
| Pulse Generator |
Amplitude
Offset
Frequency
Pulse Width
Variable duty Cycle
Leading and Trailing Edge Time(5)
Overshoot
Jitter |
1mVpp ~ 2.5 Vpp (into 50Ω)
2mVpp ~ 5 Vpp (open-circuit)
±1 Vpk AC + DC (into 50Ω)
±2Vpk AC + DC (Open circuit)
1uHz ~ 25MHz
20nS ~ 999.9ks(limited by the current frequency setting)
0.01% ~ 99.99%(limited by the current frequency setting)
10nS ~ 20S(1ns resolution)(limited by the current frequency and pulse width settings)
<5%
100ppm + 500ps(4) |
| Other |
Store/Recall
Interface
Display |
10 Groups of Setting Memories
LAN, USB
4.3 inch TFT LCD, 480 × 3 (RGB) × 272 |
| General Specifications |
Power Source
Power Consumption
Operating Environment
Operating Altitude
Pollution Degree
Storage Temperature
Dimensions and Weight |
AC 100 240V, 50 60Hz or AC 100 120V, AC 220 240V, 50 ~ 60Hz
30W or 80W(With power amplifier)
Temperature to satisfy the specification : 18 28˚C ; Operating temperature : 0 40˚C ; Relative Humidity:
≤80%, 0 40˚C, ≤70%, 35 40˚C ; Installation category : CAT II
2000 Meters
IEC 61010 degree 2, Indoor use
-10 ~ 70˚C, Humidity :≤70%
266(W) x 107(H) x 293(D) mm ; Approx. 2.5kg |
