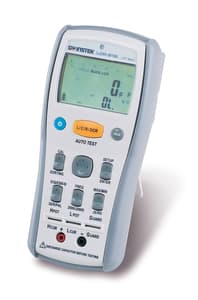

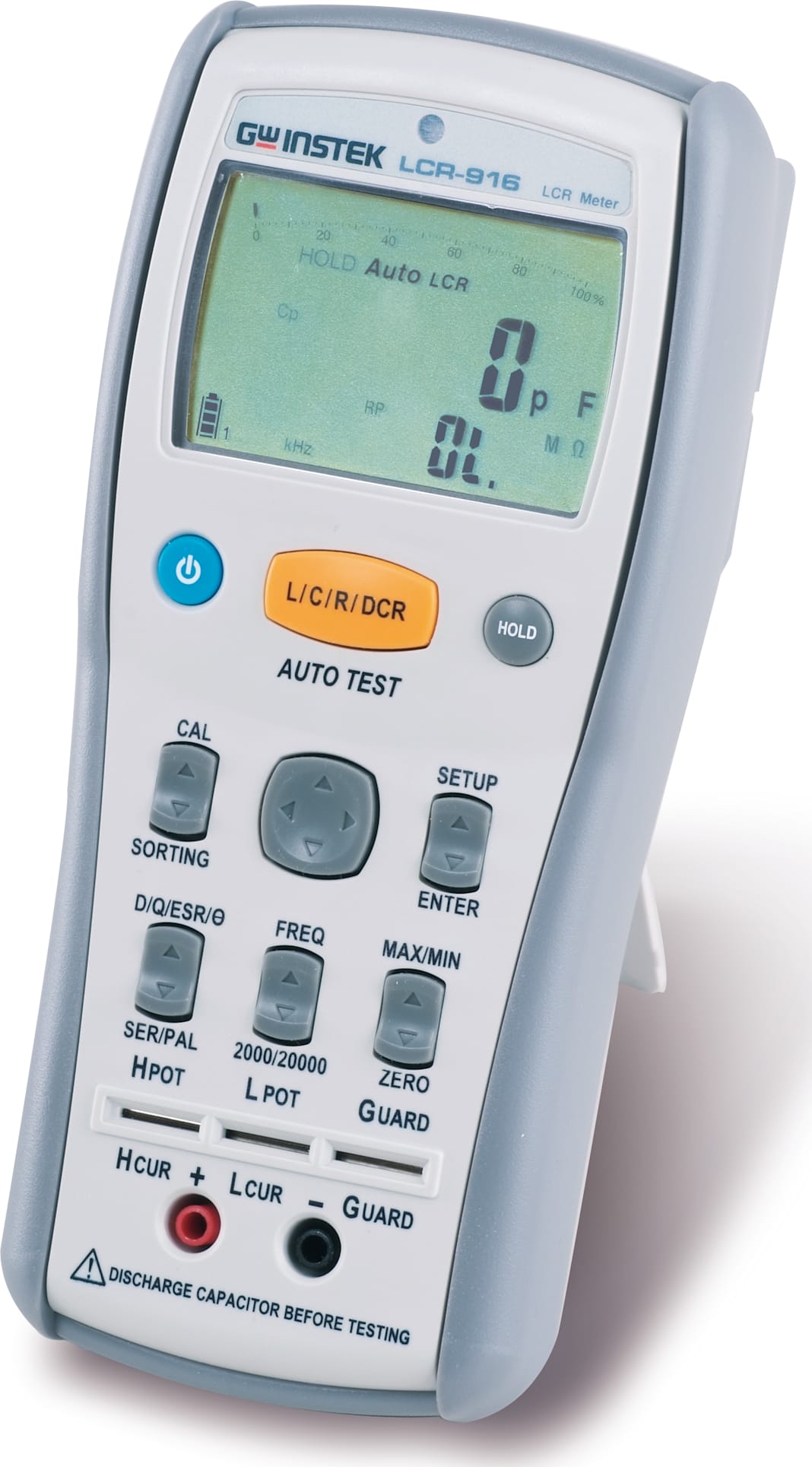

TEST FREQUENCY |
100Hz/120Hz/1kHz/10kHz Selectable |
FULL SCALE |
Main Display |
20,000/2,000 count Selectable |
Sub Display |
2,000 count |
INDUCTANCE (L) |
Range |
20uH ~ 20kH depends on the selected test frequency |
Best Accuracy |
+(0.2% rdg + 2 digits) |
Resolution |
0.001uH ~ 0.001kH depends on the selected range |
CAPACITANCE (C) |
Range |
20pF ~ 20mF depends on the selected test frequency |
Best Accuracy |
+(0.2% rdg + 2 digits) |
Resolution |
0.001pF ~ 0.001mF depends on the selected range |
RESISTANCE (R) |
Range |
20Ω ~ 200MΩ depends on the selected test frequency |
Best Accuracy |
+(0.2% rdg+ 2 digits) |
Resolution |
0.001Ω ~ 0.01MΩ depends on the selected range |
DC RESISTANCE (Rdc) |
Range |
200Ω ~ 200MΩ depends on the selected test frequency |
Best Accuracy |
+(0.2% rdg+ 2 digits) |
Resolution |
0.01Ω ~ 0.01MΩ depends on the selected range |
QUALITY FACTOR (Q) |
Range |
0.000 ~ 999 |
Accuracy |
2 x (main parameter accuracy) |
Best Resolution |
0.001 |
DISSIPATION FACTOR (D) |
Range |
0.000 ~ 999 |
Accuracy |
2 x (main parameter accuracy) |
Best Resolution |
0.001 |
PHASE ANGLE (θ) |
Range |
-90° ~ 90° |
Accuracy |
+(0.2% rdg+ 5 digits) |
Resolution |
0.1° |
MEASUREMENT CIRCUIT |
Parallel or Series Selectable |
AUTO LCR MODE |
Automatically identifies and measures the DUT when the meter is switch on |
SORTING MODE |
+0.1%, +0.2%, +0.25%, +0.5%, +1.0%, +2.0%, +5.0%, +10.0%, +20.0%, +80%/-20% Selectable |
OTHER FUNCTIONS |
Auto range, Auto backlit, Data hold, Zero, Auto power off, 46 segments analogue bar |
DISPLAY |
LCD mono display |
INTERFACE |
USB |
POWER SOURCE |
AA Battery 1.5V x 4 |
DC 5V(through AC adapter or USB cable) - Optional |
DIMENSIONS & WEIGHT |
95(W) × 207(H) × 52(D) mm
Approx. 630g |
