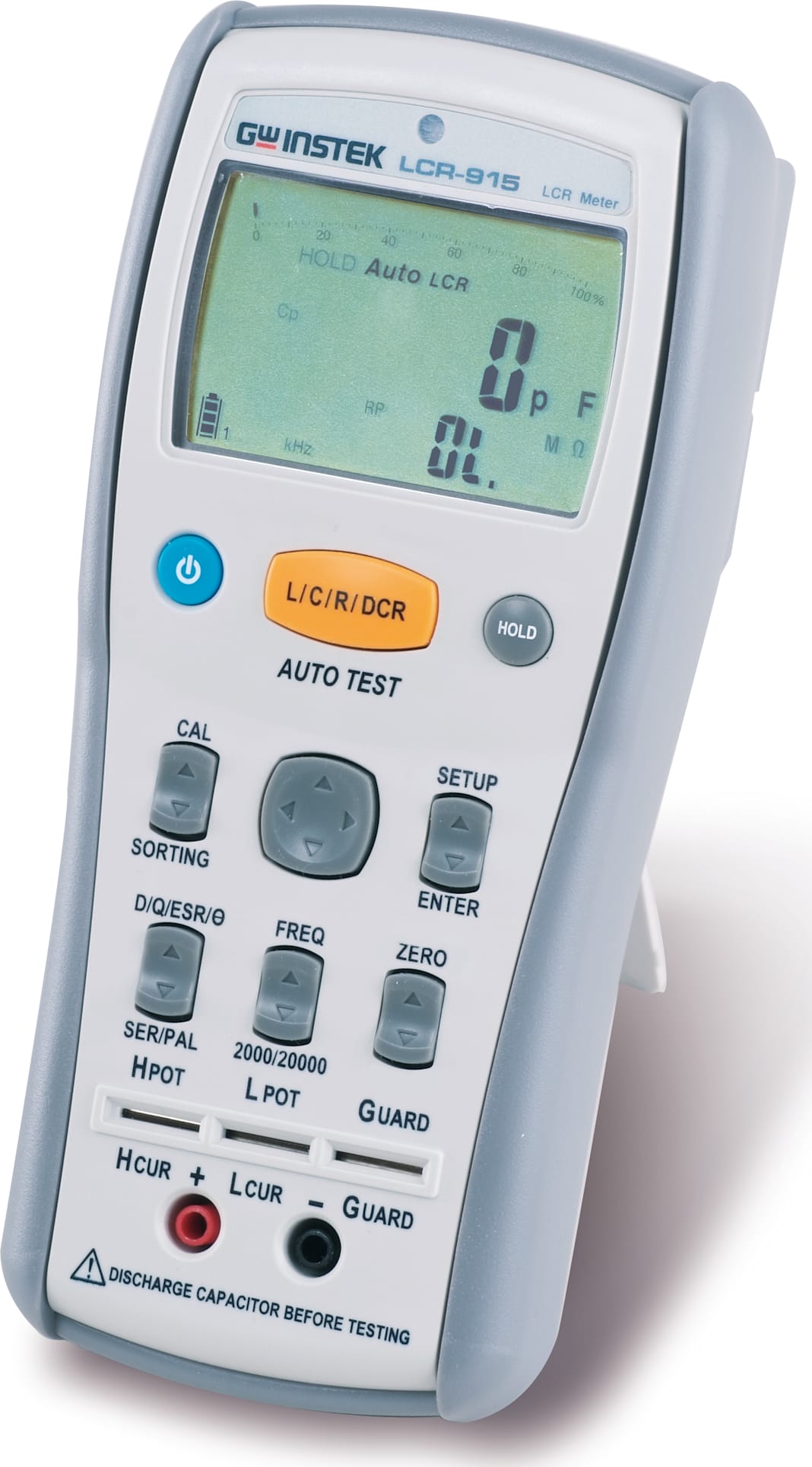

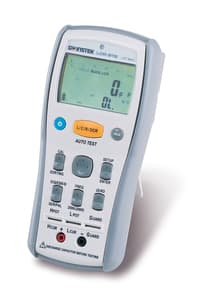

Instek LCR-915 10khz Hand Held LCR Meter

Name: Instek LCR-915 10khz Hand Held LCR Meter
Brand: Instek
SKU: InstekLCR-915
Price: 260.00 USD
Availability: InStock
Rating: 3.00 (1 reviews)

3 (1 Review) | Model: Instek LCR-915

Compare

10KHz Hand Held LCR Meter

20,000/2,000 Counts Dual Display
Test Frequency : 100/120Hz/1/10kHz
Auto LCR Mode for DUT Measuring
0.2% Basic Accuracy
Measurement Parameter : L,C,R,D,Q,ESR,θ,DCR
Parallel/Series Testing Mode
Sorting Mode for Quality Control
2Wire or 5Wire Measurement Available
Data Hold and Zero Mode Supported
Auto Range, Auto Backlit
Low Battery Indication
Auto Power off
Data Collection or AC power operation (Optional)

View Product Details

List Price: $260.00

In Stock:

View Payment Options

Recommended for you

Instek LCR-915 10khz Hand Held LCR Meter

20,000/2,000 Counts Dual Display
Test Frequency : 100/120Hz/1/10kHz
Auto LCR Mode for DUT Measuring
0.2% Basic Accuracy
Measurement Parameter : L,C,R,D,Q,ESR,θ,DCR
Parallel/Series Testing Mode
Sorting Mode for Quality Control

The LCR-915 is a smart, convenient and fully-functional dual display handheld LCR meter. The test frequency extends as high as 10 kHz, providing greater flexibility to test a wider range of components.The LCR-915 uses a dual 20,000/2000 count display.

The 20000 count display is used for displaying primary parameters such as:

Capacitance
Inductance
Reactance
Resistance

And a 2000 count display is for secondary parameters such as: Q D θ ESR RP. Secondary measurements can also be combined with the primery measurement while the primary measurement is still being taken.

The LCR-915 provides two measurement methods, 2 wire and 5 wire measurement, the LCR-915 also come with a host of various standard or optional accessories to assist in testing a number of different component types. The meters also include handy functions such as data hold, tolerance sorting, and zero mode.

The meters’ USB interface can be used to log data to a PC using the LCR900 software and provide the DC 5V needed to power the meter (Optional).

With the LCR-915, you can perform quick and basic LCR measurements with precision at an affordable price.

Auto LCR Mode

The meter automatically identifies the specified L, C, or R parameters for both parallel and series circuits while the DUT is being measured. This AUTO LCR mode can be active for the selected function or every time the meter is turned on.

Connectivity for data logging to PC

The LCR900 (optional) software is available for your handheld LCR meter. This software is to configure the measurement parameters and automate the recording of continuous readings.

Complete Accessories

The meter is provided with a complete accessories kit as standard or optional including alligator clips, an SMD test probe, a USB cable, an AC adaptor, 4Wire DIP test lead and a shorting cube to increase measurement options.

Flexible Operation

AA sized batteries, USB power (optional) or an AC adapter (optional) can be used to power the meters, giving you a number of options for portability.

TEST FREQUENCY
100Hz/120Hz/1kHz/10kHz Selectable
FULL SCALE
Main Display	20,000/2,000 count Selectable
Sub Display	2,000 count
INDUCTANCE (L)
Range	20uH ~ 20kH depends on the selected test frequency
Best Accuracy	+(0.2% rdg + 2 digits)
Resolution	0.001uH ~ 0.001kH depends on the selected range
CAPACITANCE (C)
Range	20pF ~ 20mF depends on the selected test frequency
Best Accuracy	+(0.2% rdg + 2 digits)
Resolution	0.001pF ~ 0.001mF depends on the selected range
RESISTANCE (R)
Range	20Ω ~ 200MΩ depends on the slelcted test frequency
Best Accuracy	+(0.2% rdg+ 2 digits)
Resolution	0.001Ω ~ 0.01MΩ depends on the selected range
DC RESISTANCE (Rdc)
Range	200Ω ~ 200MΩ depends on the slelcted test frequency
Best Accuracy	+(0.2% rdg+ 2 digits)
Resolution	0.01Ω ~ 0.01MΩ depends on the selected range
QUALITY FACTOR (Q)
Range	0.000 ~ 999
Accuracy	2 x (main parameter accuracy)
Best Resolution	0.001
DISSIPATION FACTOR (D)
Range	0.000 ~ 999
Accuracy	2 x (main parameter accuracy)
Best Resolution	0.001
PHASE ANGLE (θ)
Range	-90° ~ 90°
Accuracy	+(0.2% rdg+ 5 digits)
Resolution	0.1°
MEASUREMENT CIRCUIT
Parallel or Series Selectable
AUTO LCR MODE
Automatically identifies and measures the DUT when the meter is switch on
SORTING MODE
+0.1%, +0.2%, +0.25%, +0.5%, +1.0%, +2.0%, +5.0%, +10.0%, +20.0%, +80%/-20% Selectable
OTHER FUNCTIONS
Auto range, Auto backlit, Data hold, Zero, Auto power off, 46 segments analogue bar
DISPLAY
LCD mono display
INTERFACE
USB
POWER SOURCE
AA Battery 1.5V x 4
DC 5V(through AC adapter or USB cable) - Optional
DIMENSIONS & WEIGHT
95(W) × 207(H) × 52(D) mm Approx. 630g

Tech Specs

LCR Meters / Impedance Measurement Products /LCR Meters Template
Type	Hand Held
Max Test Frequency	10 kHz
Max Capacitance	20000 uF (20 mF)
Max Resistance	200 M Ohms
Max Inductance	20000 H (20000000 mH)
Measurements Parameters	AC Resistance (Rac), Capacitance (C), DC Resistance (Rdc), Inductance (L), Phase Angle (θ), Quality Factor (Q)
Auto Ranging	Yes
Graph Mode	No
Data Hold	Yes
Counts	20000 .
Test Equipment General Attributes
Unique Features	The LCR-916 uses a dual 20,000/2000 count display. The 20000 count display is used for displaying primary parameters such as Capacitance, Inductance, Reactance, Resistance And a 2000 count display is for secondary parameters such as Q, D, θ, ESR, RP
Additional Info/Comments	Data Collection or AC power operation (Optional)
Interfaces I/O	USB
Product Weight	630 GRAMS (1.39 LBS)
Product Height	207 MM (8.15 IN)
Product Length	95 MM (3.74 IN)
Product Width	52 MM (2.05 IN)
Shipping Weight	2 LBS
Data Logging	Yes
HTS/Schedule B Number	9030.33.3400
ECCN Number	3A992
Calibration Included	Factory Calibration
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan

3

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

Recommend to a Friend

Engineer

3.0

Measures AC/DC caps down to .01. Tech support was not too helpful. I could not understand him. He could not tell me what the center button with arrows does!

Rick on Apr 01, 2015
