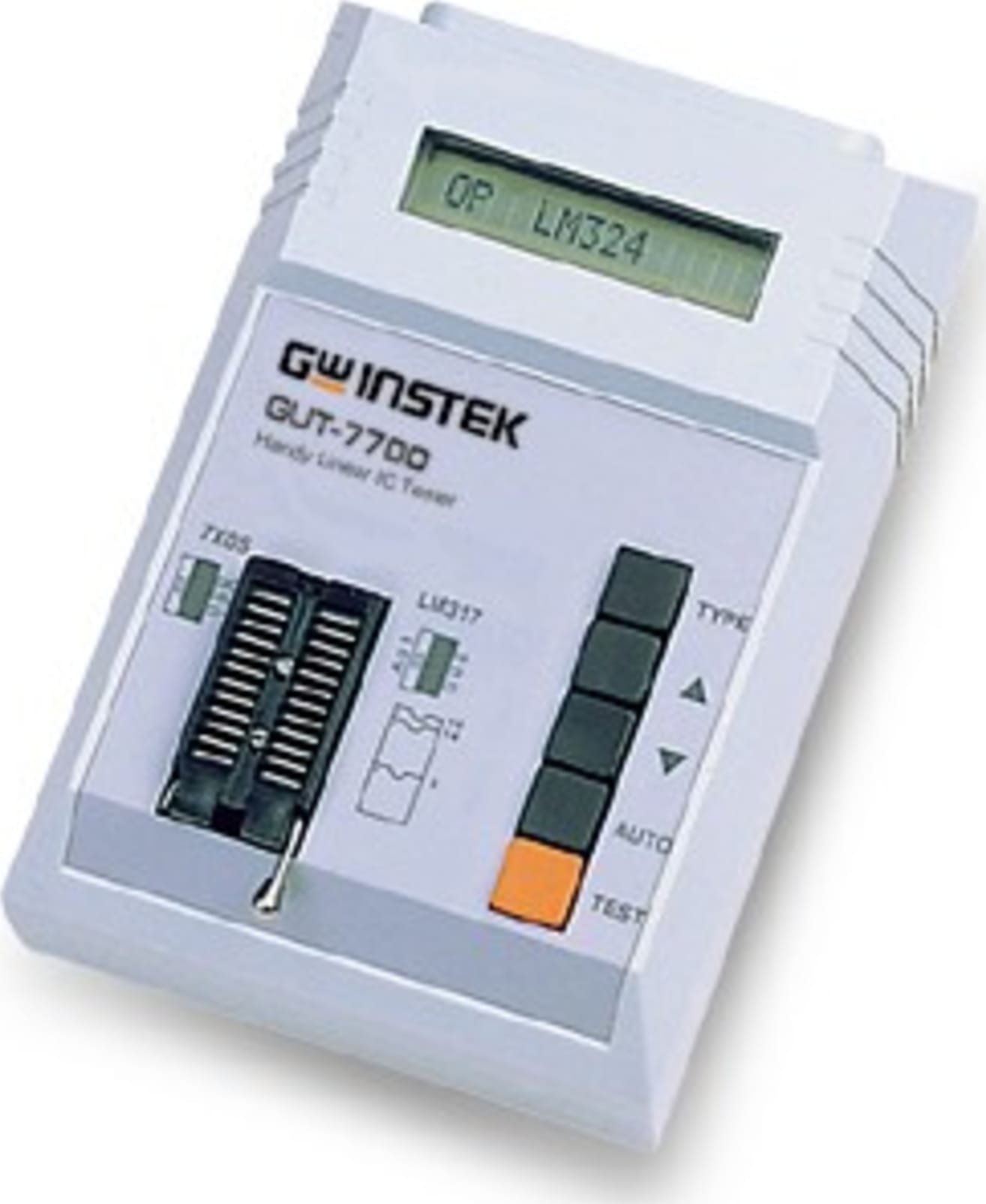

Instek GUT-7700 Programmers and IC Testers

Name: Instek GUT-7700 Programmers and IC Testers
Brand: Instek
SKU: InstekGUT-7700
Price: 749.74 USD
Availability: InStock

0 reviews | Model: Instek GUT-7700

Compare

Linear IC Tester

Easy-operating, Designed for Linear IC (OP, Comparator, Opto-Coupler, Regulator, Special Function Device, Transistor Array)
Small, Portable, Light and Power-Saving, Battery Operation
Average Search Time : 0.8 Second
Display: 16 Characters in 1 Line
Test Pin: 14 ~ 24
Test Voltage: +/- 5V
Empty-Load and Auto Power Off

View Product Details

List Price: $860.00

In Stock:

Recommended for you

SUPPORTED DEVICES
OP (operational amplifiers, comparators)	LM101;LM107;LM108;LM118;LM124;LM148;LM158;LM201;LM207; LM208;LM218;LM224;LM248;LM258;LM301;LM308;LM310;LM318; LLM324;LM348;M358;LM1458;LM2900;LM2902;LM2904;LM3900; LMC660;CA358;CA3130;CA3140;CA3160;CA3240;CA3260;TL022; TL061;TL062;TL064;TL071;TL072;TL074;TL081;TL082;TL084; TL094;MC3303;MC3403;MC3503;MC34004;NE5532;NE5534; LF351;LF353;LF356;LF357;LF411;LF412;LF347;LF355;ICL7611; ICL7621;ICL7641;ICL7642;AD648;AD711;LT1013;LT1014;RC4558; UA741;UA747;UA748;OP07;OP27;OP37;OP42;OP90;OP97; OP290;OP490;TLC252;TLC272;LP124;LP324; D712;LW307;UPC451;HA17324;C4082
Comparators	LM139;LM193;LM239;LM293;LM339;LM393; LM2901;LM2903;LM3302;LP239;LP339;LP2901; TLC339;TLC393
Opto (optocouplers)	4N25;4N26;4N27;4N28;4N29;4N32;4N33;4N35; 4N36;4N37;4N38;4N45;4N46;TIL111;TIL116;H11A1; H11B1;H11D1;H11D2;H11D3;H11D4;CNY75;MCT2; PC817;PC827;PC837;PC847;K827P;K847P
Voltage Regulators	UA7805... ( LM2930-5.0,LM2931-5.0,LM2940CT-5.0 ) UA7806... ( NEED TO USE DC ADAPTOR ) UA7905;LM217;LM317
Special Functions Device	NE555;NE556;TLC555;TLC556;4016;4066
Transistor Array	ULN2001;ULN2003;ULN2004;ULN2005
TEST VOLTAGE
	DC ±5V
TEST SOCKET
	14 ~24 Pin
DISPLAY
	16 Characters in 1 line LCD
POWER SOURCE
	DC Power 9V
DIMENSIONS & WEIGHT
	160(W) 45(H) 110(D)mm, Approx. 0.34kg

Programmers / IC and RAM Testers/Programmers and IC Testers Template
Type(Programmers)	IC Tester
Maximum Number of Pins	24
Test Equipment General Attributes
Unique Features	Easy-operating Battery operation Small, Portable, Light and Power-Saving 0.8 sec Average Search Time 16 Characters in 1 Line LCD Display
Safety Approval	CE
Product Weight	0.34 KILOS (0.750 LBS)
Product Height	45 MM (1.77 IN)
Product Width	160 MM (6.30 IN)
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
Other Information	Depth: 100 mm Average Search Time: 8 sec Display: 16 Characters in 1 Line Test Pin: 14 ~ 24 Test Voltage: DC ±5V
