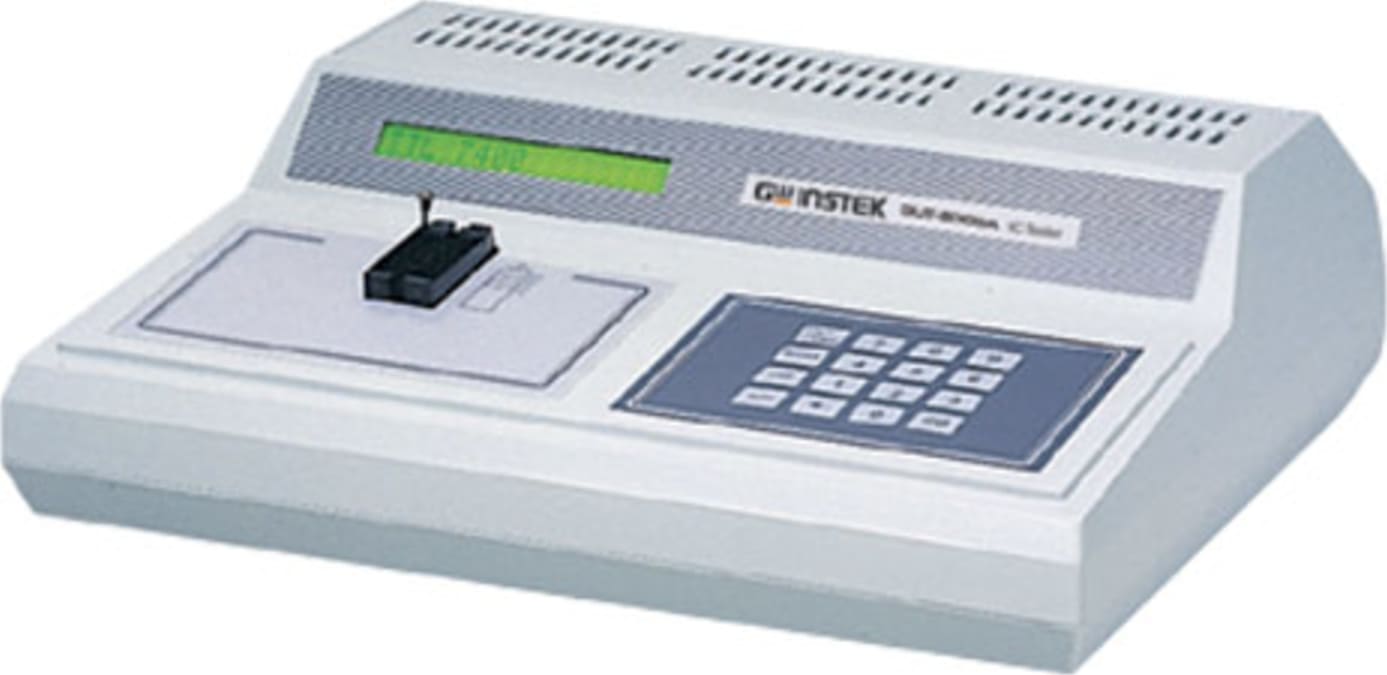

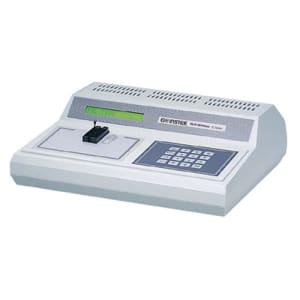

Instek GUT-6000B Digital IC Tester

Bench-Top Digital IC Tester Overview

The GUT-6000B is a desktop digital IC tester. Oriented toward automating testing tasks, the GUT-6000B contains high-end features such as auto-search and loop testing. Automated processes provide an intelligent and continuous process for detecting defective ICs. Self-diagnosis functions and over-load protection mechanisms make the GUT-6000A close to maintenance-free, releasing users from unnecessary hassles. The wide device coverage includes the 1800 series as well as the ubiquitous TTL and CMOS, providing a one-size fits-all solution for an IC testing bench area.

Other Features

• The following IC series can be tested under 5V, 3.3V, 3.0V, 2.5V
  • 54/74 TTL series
  • 40/45 CMOS series
  • Driver series
  • Other compatible ICs with the above mentioned devices
• “AUTO” function key supports “auto search and test” function. User only to put the IC into the socket, no need to press any key, no need to process any other movement, the “auto search and test’ will continue processing.
• “LOOP” function key supports “continue examining”, able to make sure reliability of the IC.
• Various “BUZZER” sounds to presents the test results “FAIL”, or “PASS”.
