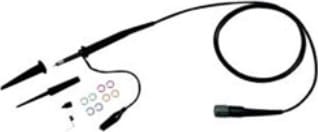

Instek GTP-200B-4 Oscilloscope Probes

Name: Instek GTP-200B-4 Oscilloscope Probes
Brand: Instek
SKU: InstekGTP-200B-4
Price: 28.80 USD
Availability: InStock

0 reviews | Model: Instek GTP-200B-4

Compare

200 MHz Probe for GDS-3000 Series, GDS-2000A/E Series, GDS-1000A-U Series, GDS-1000U Series

Passive high impedance oscilloscope probe
Designed and calibrated for use on instrument having an input impedance of 1MΩ shunted by 20pF.
Incorporates a two position slide switch in the head which selects attenuation of x1,x10 position
For GDS-3000 Series, GDS-2000A/E Series, GDS-1000A-U

View Product Details

List Price: $32.00

Your Price: $28.80

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

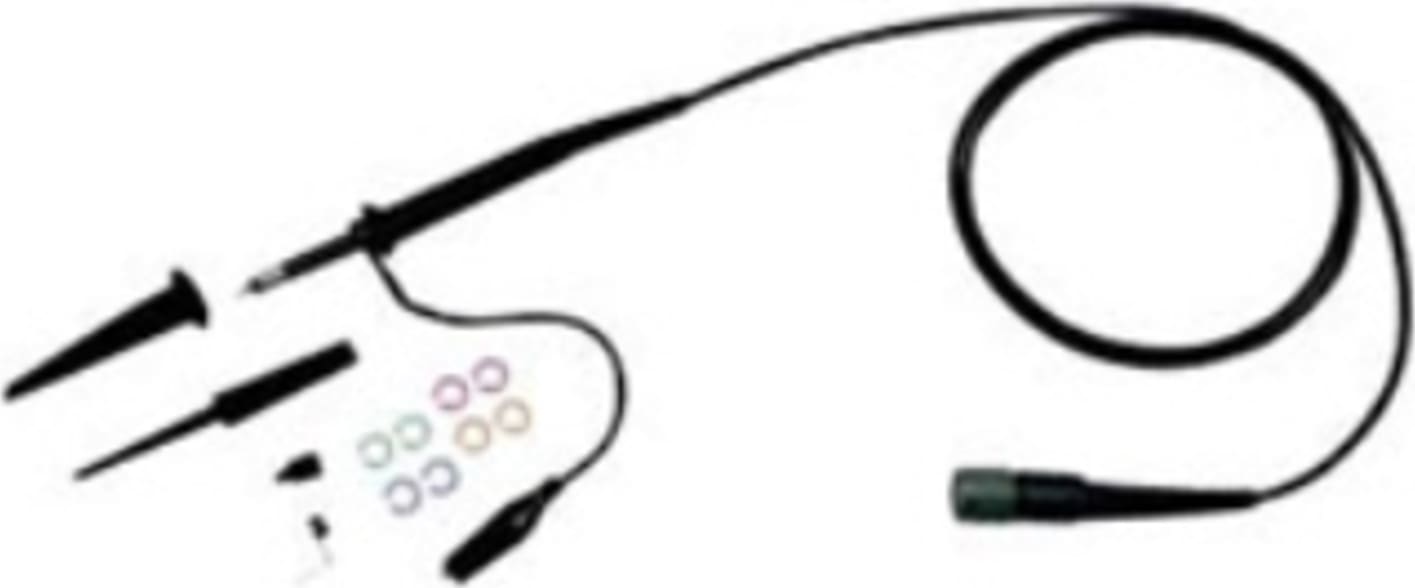

Instek GTP-200B-4 Oscilloscope Probe

The GTP-200B-4 is a passive high impedance oscilloscope probe designed and calibrated for use on instrument having an input impedance of 1MΩ shunted by 20pF. However, it may be compensated for use with instruments having an input capacitance of 5-30pF. The probe incorporates a two position slide switch in the head which selects attenuation of x1,x10 position.

General Specifications
Item	10:1	1:1
Bandwidth	DC~200MHz (±3dB)	DC~10MHz (±3dB)
Input R	~10MΩ	1MΩ (Oscilloscope)
Input C	10.5~17.5pF	65~105pF
Att. Ratio	1/10	1/1
Max. Input Voltage	600V Peak	DC 200V Peak
Compensation Range	5~30pF	-

Accessories/Probes/Oscilloscope Probes/Oscilloscope High Voltage Probes Template
Bandwidth Range Max	200 MHz (0.2 GHz) Bandwidth Range Max 200MHz (10:1/1:1)
Maximum Voltage	600 V
Impedance	1 Ohms
Test Equipment General Attributes
HTS/Schedule B Number	9030908961
ECCN Number	EAR99
Country of Origin	China
