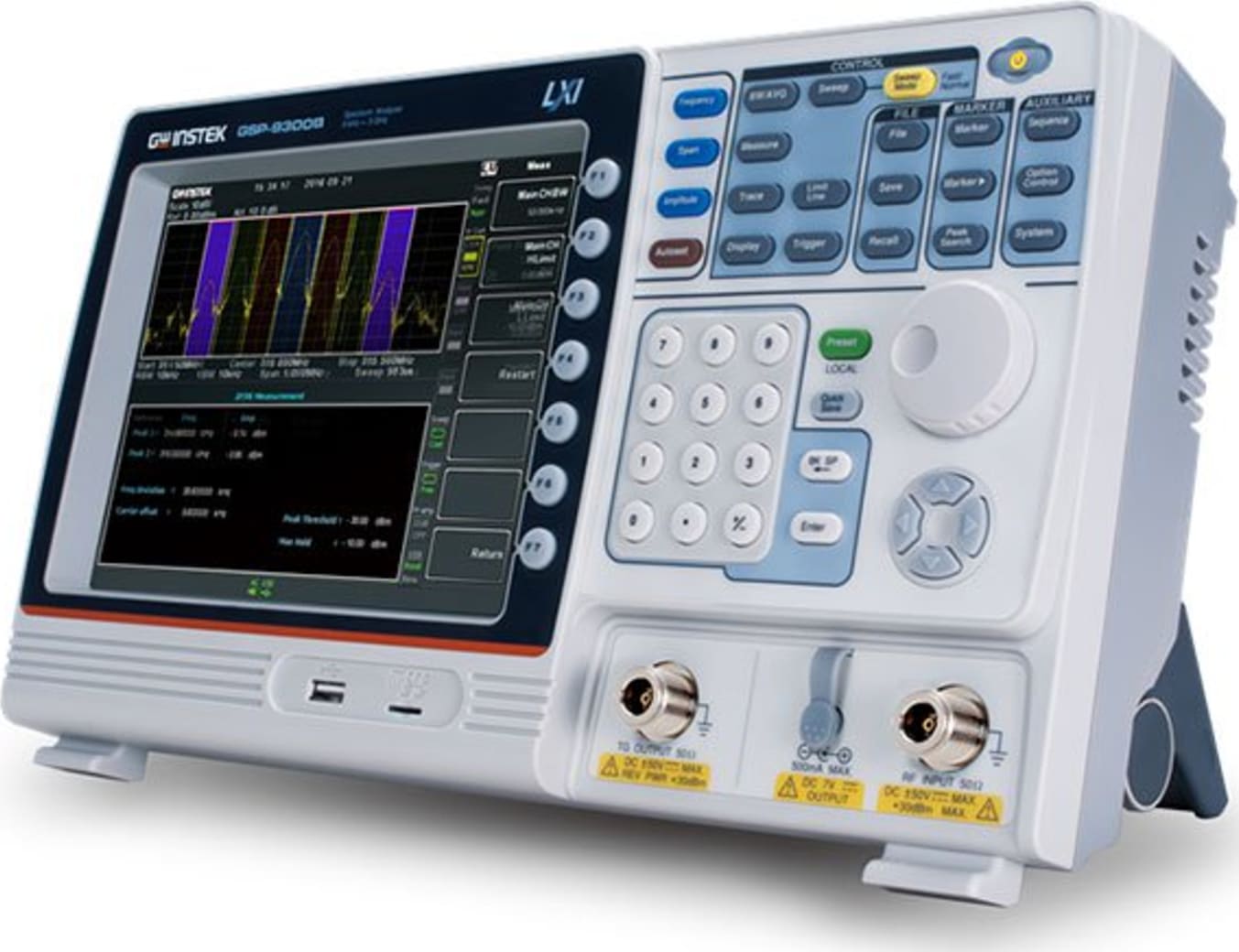

| Frequency |
Range |
9 kHz to 3 GHz |
| Resolution |
1 Hz |
| Frequency Reference |
Accuracy |
±(period since last adjustment X aging rate) + stability over temperature + supply voltage stability |
| Aging Rate |
±1 ppm max. |
1 year after last adjustment |
| Frequency Stability over Temperature |
±0.025 ppm |
0 to 50 °C |
| Supply Voltage Stability |
±0.02 ppm |
|
| Frequency Readout Accuracy |
Start, Stop, Center, Marker |
±(marker frequency indication X frequency reference accuracy + 10% x RBW + frequency resolution) |
| Trace points |
Max 601 points, min 6 points |
| Marker Frequency Counter |
Resolution |
1 Hz, 10 Hz, 100 Hz, 1 kHz |
| Accuracy |
±(marker frequency indication X frequency reference accuracy + counter resolution) |
RBW/Span >=0.02 ; Mkr level to DNL>30 dB |
| Frequency Span |
Range |
0 Hz (zero span), 100 Hz to 3 GHz |
|
| Resolution |
1 Hz |
|
| Accuracy |
± frequency resolution1 |
RBW: Auto; |
| Phase Noise |
Offset from Carrier |
|
Fc =1 GHz; RBW = 1 kHz, VBW = 10 Hz; Average ≥ 40 |
| 10 kHz |
<-88 dBc/Hz |
Typical |
| 100 kHz |
<-95 dBc/Hz |
Typical |
| 1 MHz |
<-113 dBc/Hz |
Typical |
| Resolution Bandwidth (RBW) Filter |
Filter Bandwidth |
1 Hz to 1 MHz in 1-3-10 sequence |
-3dB bandwidth |
| 200 Hz, 9 kHz, 120 kHz, 1MHz |
-6dB bandwidth |
| Accuracy |
± 8%, RBW = 1MHz |
Nominal |
| ± 5%, RBW < 1MHz |
Nominal |
| Shape Factor |
< 4.5:1 |
Normal Bandwidth ratio: -60dB:-3dB |
| Video Bandwidth (VBW) Filter |
Filter Bandwidth |
1 Hz to 1 MHz in 1-3-10 sequence |
-3dB bandwidth |
| Amplitude |
| Amplitude Range |
Measurement Range |
100 kHz to 1 MHz |
Displayed Average Noise Level (DANL) to 18 dBm |
| 1 MHz to 10 MHz |
DANL to 21 dBm |
| 10 MHz to 3 GHz |
DANL to 30 dBm |
| Attenuator |
Input Attenuator Range |
0 to 50 dB, in 1 dB step |
Auto or manual setup |
| Maximum Safe Input Level |
Average Total Power |
≤ +33 dBm |
Input attenuator
≥10 dB |
| DC Voltage |
± 50 V |
|
| 1 dB Gain Compression |
Total Power at 1st Mixer |
> 0 dBm |
Typical;Fc ≥ 50 MHz; preamp. off |
| Total Power at the Preamp |
> -22 dBm |
Typical;Fc ≥ 50 MHz; preamp. on |
| |
mixer power level (dBm)= input power (dBm)-attenuation (dB) |
| Displayed Average Noise Level (DANL) |
Preamp off |
0 dB attenuation; RF Input is terminated with a 50Ω load. RBW 10 Hz; VBW 10 Hz; span 500 Hz; reference level = -60dBm; trace average ≥ 40 |
| 9 kHz to 100 kHz |
< -93 dBm |
Nominal |
| 100 kHz to 1 MHz |
< -90 dBm - 3 x (f/100 kHz) dB |
| 1 MHz to 2.7 GHz |
< -122 dBm |
| 2.7 GHz to 3 GHz |
< -116 dBm |
| Preamp on |
0 dB attenuation; RF Input is terminated with a 50Ω load ; RBW 10 Hz; VBW 10Hz; span 500 Hz; reference level = -60dBm; trace average ≥ 40 |
| 100 kHz to 1 MHz |
< -108 dBm - 3 x (f/100 kHz) dB |
Nominal |
| 1 MHz to 10 MHz |
< -142 dBm |
| 10 MHz to 3 GHz |
< -142 dBm + 3 x (f/1 GHz) dB |
| Level Display Range |
Scales |
Log, Linear |
|
| Units |
dBm, dBmV, dBuV, V, W |
|
| Marker Level Readout |
0.01 dB |
Log scale |
| |
0.01 % of reference level |
Linear scale |
| Level Display Modes |
Trace, Topographic, Spectrogram |
Single / split Windows |
| Number of Traces |
4 |
|
| Detector |
Positive-peak, negative-peak, sample, normal, RMS(not Video) |
Can be setup for each trace separately |
| Trace Functions |
Clear & Write, Max/Min Hold, View, Blank, Average |
|
| Absolute Amplitude Accuracy |
Absolute Point |
Center=160 MHz ; RBW 10 kHz; VBW 1 kHz; span 100 kHz; log scale; 1 dB/div; peak detector; 23°C±1°C; Signal at Reference Level |
| Preamp off |
± 0.3 dB |
Ref level 0 dBm;
10 dB RF attenuation |
| Preamp on |
± 0.4 dB |
Ref level -30 dBm;
0 dB RF attenuation |
| Frequency Response |
Preamp off |
Attenuation: 10 dB; Reference: 160 MHz; 20 to 30°C |
| 100 kHz to 2.0 GHz |
± 0.5 dB |
|
| 2GHz to 3 GHz |
± 0.7 dB |
|
| Preamp on |
Attenuation: 0 dB; Reference: 160 MHz; 20 to 30°C |
| 1 MHz to 2 GHz |
± 0.6 dB |
|
| 2 GHz to 3 GHz |
± 0.8 dB |
|
| Attenuation Switching Uncertainty |
Attenuator setting |
0 to 50 dB in 1 dB step |
|
| Uncertainty |
± 0.25 dB |
reference: 160 MHz, 10dB attenuation |
| RBW Filter Switching Uncertainty |
1 Hz to 1 MHz |
± 0.25 dB |
reference : 10 kHz RBW |
| Level Measurement Uncertainty |
Overall Amplitude Accuracy |
± 1.5 dB |
20 to 30°C; frequency > 1 MHz; Signal input 0 to -50 dBm; Reference level 0 to -50 dBm;
Input attenuation 10 dB;
RBW 1 kHz; VBW 1 kHz; after cal; Preamp Off |
| ± 0.5 dB |
Typical |
| Spurious Response |
Second Harmonic Intercept |
|
Preamp off; signal input -30dBm; 0 dB attenuation |
| +35 dBm |
Typical; 10 MHz < fc < 775 MHz |
| +60 dBm |
Typical; 775 MHz ≤ fc < 1.625 GHz |
| Third-order Intercept |
|
Preamp off; signal input -30dBm; 0 dB attenuation |
| > 1dBm |
300 MHz to 3 GHz |
| Input Related Spurious |
< -60 dBc |
Input signal level -30 dBm, Att. Mode, Att=0dB; 20-30ºC |
| Residual Response (inherent) |
<-90 dBm |
Input terminated; 0 dB attenuation; Preamp off |
| Sweep |
| Sweep Time |
Range |
204 us to 1000 s |
Span > 0 Hz |
| 50 us to 1000 s |
Span = 0 Hz; Min Resolution = 10 us |
| Sweep Mode |
Continuous; Single |
|
| Trigger Source |
Free run; Video; External |
|
| Trigger Slope |
Positive or negative edge |
|
| RF Preamplifier |
| |
Frequency Range |
1 MHz to 3 GHz |
|
| Gain |
18 dB |
Nominal |
| |
(installed as standard) |
| Front Panel Input/Output |
| RF Input |
Connector Type |
N-type female |
|
| Impedance |
50 ohm |
Nominal |
| VSWR |
<1.6 :1 |
300 kHz to 3 GHz; Input attenuator ≥ 10 dB |
| Power for Option |
Connector Type |
SMB male |
|
| Voltage/Current |
DC +7V / 500 mA max |
With short-circuit protection |
| USB Host |
Connector Type |
A plug |
|
| Protocol |
Version 2.0 |
Supports Full/High/Low speed |
| MicroSD Socket |
Protocol |
SD 1.1 |
|
| Supported Cards |
microSD, microSDHC |
Up to 32GB capacity |
| Rear Panel Input/Output |
| Reference Output |
Connector Type |
BNC female |
|
| Output Frequency |
10 MHz |
Nominal |
| Output Amplitude |
3.3V CMOS |
|
| Output Impedance |
50 ohm |
|
| Reference Input |
Connector Type |
BNC female |
|
| Input Reference Frequency |
10 MHz |
|
| Input Amplitude |
-5 dBm to +10 dBm |
|
| Frequency Lock Range |
Within ± 5 ppm of the input reference frequency |
|
| Alarm Output |
Connector Type |
BNC female |
Open-collector |
| Trigger Input/ Gated Sweep Input |
Connector Type |
BNC female |
|
| Input Amplitude |
3.3V CMOS |
|
| Switch |
Auto selection by function |
|
| LAN TCP/IP Interface |
Connector Type |
RJ-45 |
|
| Base |
10Base-T; 100Base-Tx; Auto-MDIX |
| USB Device |
Connector Type |
B plug |
For remote control only; supports USB TMC |
| Protocol |
Version 2.0 |
Supports Full/High/Low speed |
| IF Output |
Connector Type |
SMA female |
|
| Impedance |
50 ohm |
Nominal |
| IF Frequency |
886 MHz |
Nominal |
| Output level |
-25 dBm |
10 dB attenuation; RF input: 0 dBm @ 1 GHz |
| Earphone Output |
Connector Type |
3.5mm stereo jack, wired for mono operation |
| Video Output |
Connector Type |
DVI-I ( integrated analog and digital) , Single Link. Compatible with VGA or HDMI standard through adapter |
| RS232 Interface |
Connector Type |
D-sub 9-pin female |
Tx,Rx,RTS,CTS |
| GPIB Interface (Optional) |
Connector Type |
IEEE-488 bus connector |
|
| AC Power Input |
Power Source |
AC 100 V to 240 V, 50 / 60 Hz Auto range selection |
| Battery Pack (Optional) |
Battery pack |
6 cells, Li-Ion rechargeable, 3S2P |
With UN38.3 Certification |
| Voltage |
DC 10.8 V |
|
| Capacity |
5200 mAh / 56Wh |
|
| General |
| |
Internal Data storage |
16 MB nominal |
|
| Power Consumption |
<65 W |
|
| Warm-up Time |
< 30 minutes |
|
| Temperature Range |
+5 °C to +45 °C |
Operating |
| -20 °C to + 70 °C |
Storage |
| Weight |
4.5 kg (9.9 lb) |
Inc. all options (Basic+TG+GPIB+Battery) |
| Dimensions |
210 x 350 x 100 (mm) |
Approximately |
| |
8.3 x 13.8 x 3.9 (in) |
|
| Tracking Generator (Optional) |
| |
Frequency Range |
100 kHz to 3 GHz |
|
| Output Power |
-50 dBm to 0 dBm in 0.5 dB steps |
| Absolute Accuracy |
± 0.5 dB |
@160 MHz, -10 dBm, Source attenuation 10 dB, 20 to 30°C |
| Output Flatness |
Referenced to 160 MHz, -10 dBm |
| 100 kHz to 2 GHz |
± 1.5 dB |
| 2 GHz to 3 GHz |
± 2 dB |
| Output Level Switching Uncertainty |
± 0.8 dB |
Referenced to -10 dBm |
| Harmonics |
< -30 dBc |
Typical, output level = -10 dBm |
| Reverse Power |
+30 dBm max. |
|
| Connector type |
N-type female |
|
| Impedance |
50 ohm |
Nominal |
| Output VSWR |
< 1.6:1 |
300 kHz to 3 GHz, source attenuation ≥ 12 dB |
