Instek GPP-GPIB+LAN Interface

Name: Instek GPP-GPIB+LAN Interface
Brand: Instek
SKU: InstekGPP-GPIB+LAN
Price: 135.00 USD
Availability: InStock

0 reviews | Model: Instek GPP-GPIB+LAN

Compare

GPIB+LAN Interface (factory installed)

GPIB & LAN interface
For GPP Series - Programmable DC Power Supply

View Product Details

List Price: $150.00

In Stock:

View Payment Options

Recommended for you

Instek GPP-GPIB+LAN Interface

GPIB Interface

The communication data format, compatibility settings and GPIB address must all be configured before using GPIB remote control.

Interface

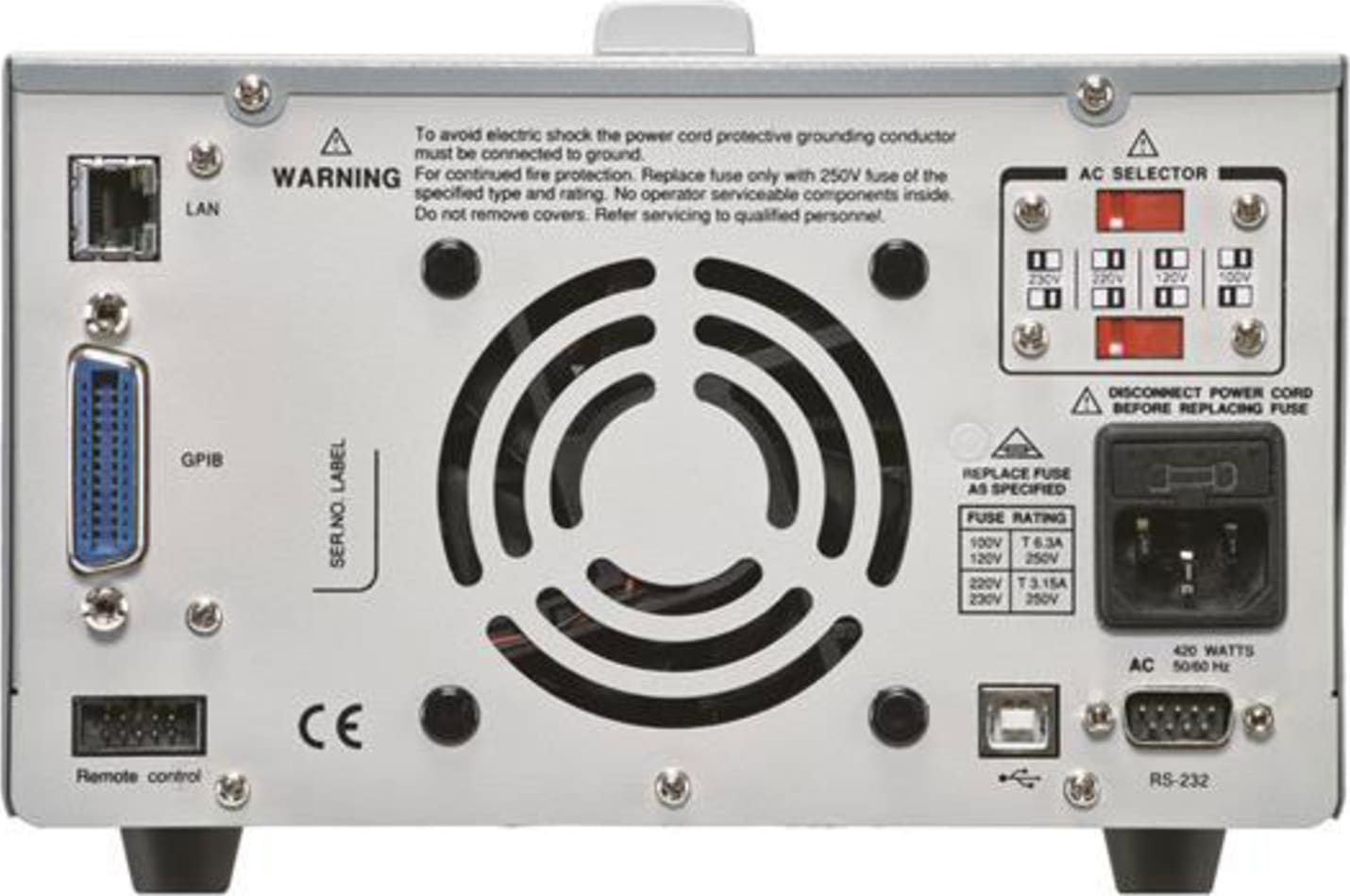

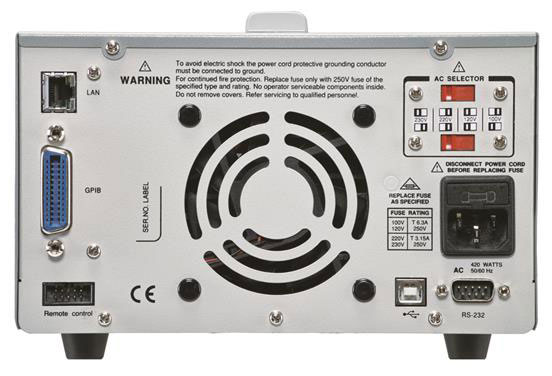

Rear panel GPIB port.

Connection

Select GPIB port in the Interface after connecting the GPIB cable. The message GPIB will appear gray in the status bar when connection, and turns to white color while the first command connects succesfully.
The front panel keys are automatically locked when the connection is successful.

Parameter Setting

Press the System button followed by pressing the F1 (Interface) button to select the target port: F3 (GPIB). The setting of communication address will appear automatically. Input required address when the setting of GPIB Addr turn red color and press the F1 (Enter) button to confirm.

Display

The address information of GPIB will appear on LCD. Refer to the description below:

*11----> GPIB address of the current unit

Exiting from Remote Control Mode

Send a remote command from the PC
Long-press the F6 (unlock) key on the front panel.

LAN Interface

Description

When using the LAN port, the relevant parameters are supposed to be set earlier.

Connection

Select LAN port in the Interface after connecting the LAN cable. The message LAN will appear gray in the status bar when connection, and turns to white color while the first command connects succesfully.
