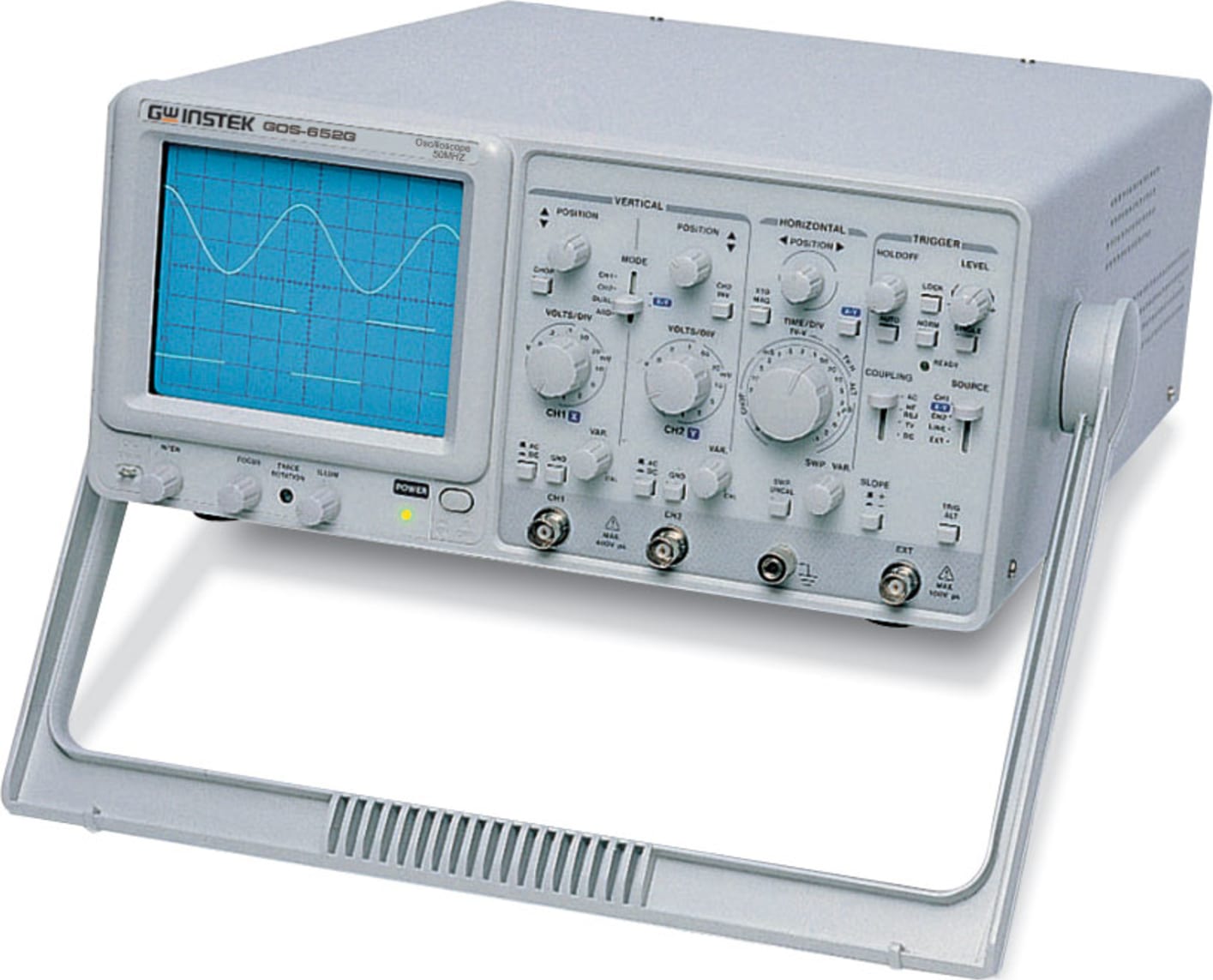

Instek GOS-652G Analog Oscilloscopes

Name: Instek GOS-652G Analog Oscilloscopes
Brand: Instek
SKU: InstekGOS-652G
Availability: InStock

0 reviews | Model: Instek GOS-652G

Compare

50 MHz, Dual Channel Oscilloscope

50MHz Bandwidth, Dual Channel
TV Synchronization
CH1 Output
Z-Axis Modulation Input
ALT Triggering Function
Hold Off Function
Trigger Level Lock Function

View Product Details

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Instek GOS-652G

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Instek GTL-110 Test Lead, BNC to BNC connector [1M]

Catalog: GTL-110

(0)

In Stock!

Add to Cart

Rigol ADP0150BNC 50 Ohm impedance adapter for oscilloscopes or generators

Catalog: ADP0150BNC

(30)

In Stock!

Add to Cart

Cal Test CT4042 Oscilloscope Accessory Kit. Get the most out of your scope with this...

Catalog: CT4042

(24)

In Stock!

Add to Cart

Aim-TTi Iprober 520 Positional Current/Field Probe DC-5MHz 5mA-20A

Catalog: 58250-0010

(5)

In Stock!

Add to Cart

Auburn P-20A 3GHz RF Probe BNC. (adaptor for SMA not included )

Catalog: P-20A

(3)

In Stock!

Add to Cart

The 50MHz GOS-653G/652G Series is an example of classic analog oscilloscope design. The GOS-653G /652G cover a broad range of industry applications, such as product design, assembly lines, repair & servicing, and educational purposes for EE laboratories and class experiments. Coupled with various trigger functions (Auto, Norm, TV), complex waveforms can be easily triggered for use in diverse applications. The ALT Trigger function enables users to observe signals from dual channels simultaneously. The Hold Off function helps stabilize sophisticated signals within repetitive frequencies or periods. Delayed sweep magnification (GOS-653G) can display and zoom in waveforms at the same time. For classic design and operation applicable to a wide range of applications, the GOS-653G/652G Series offers extra value.

General Specifications
CRT
Type	6-inch rectangular type with internal graticule 0%, 10%, 90% and 100% markers. 8 x 10 div (1div=1cm)
Accelerating Potential	12kV
Illumination	Continuously adjustable
Z-axis Input	Input Impedance: Approx. 5kΩ Sensitivity:Above 3Vp-p Bandwidth:DC ~ 5MHz
VERTICAL SYSTEM
Sensitivity	5mV ~ 5V/div±3%,1mV ~ 2mV/div±5%
Bandwidth	DC ~ 50MHz DC ~ 15MHz at 1 ~ 2mV/div
Rise Time	7ns (23.3ns for 1 ~ 2mV/div)
Signal Delay	leading edge can be monitored (GOS-653G only)
Input Impedance	Approx. 1MΩ
Input Coupling	AC, DC, GND
Vertical Mode	CH1, CH2, DUAL, ADD, CH2 INV (Dual automatic switching ALT and CHOP)
HORIZONTAL SYSTEM
A(main) Sweep Time	0.1μs ~ 0.5s/div ±3% 100ns ~ 50ms/div ±5% (x 10 MAG) 10ns ~ 50ns ±8% (x 10 MAG)
B(delay) Sweep Time	0.1μs ~ 0.5ms/div ±3% 100ns ~ 50μs/div ±5% (x 10 MAG) 10ns ~ 50ns/div ±8% (x 10 MAG)
Delay Time	1μs ~ 5ms/div ±5% (GOS-653G only)
Delay Time Jitter	Better than 1:10000 (GOS-653G only)
TRIGGER
Trigger Mode	AUTO, NORM, SINGLE
Trigger Source	CH1, CH2, ALT, LINE, EXT
Trigger Coupling	AC, DC, HF REJ, TV
Trigger Slope	"+" or "-"
X-Y OPERATION
Sensitivity	5mV ~ 5V/div±4%
X-axis Bandwidth	DC ~ 2MHz
Phase Error	3° or less from DC ~ 100kHz
OUTPUT SIGNAL
Ch1 Signal Output	Voltage: approx. 50mV/div into 50Ω
Calibrator Output	1kHz Square wave, 2Vpp±2%
POWER SOURCE
AC 100V/ 120V/ 220V/ 230V ±10%, 50Hz/ 60Hz
DIMENSIONS & WEIGHT
310(W) x 150(H) x 455(D) mm; Approx. 8.2kg
