25 MHz dual channel arbitrary waveform generation

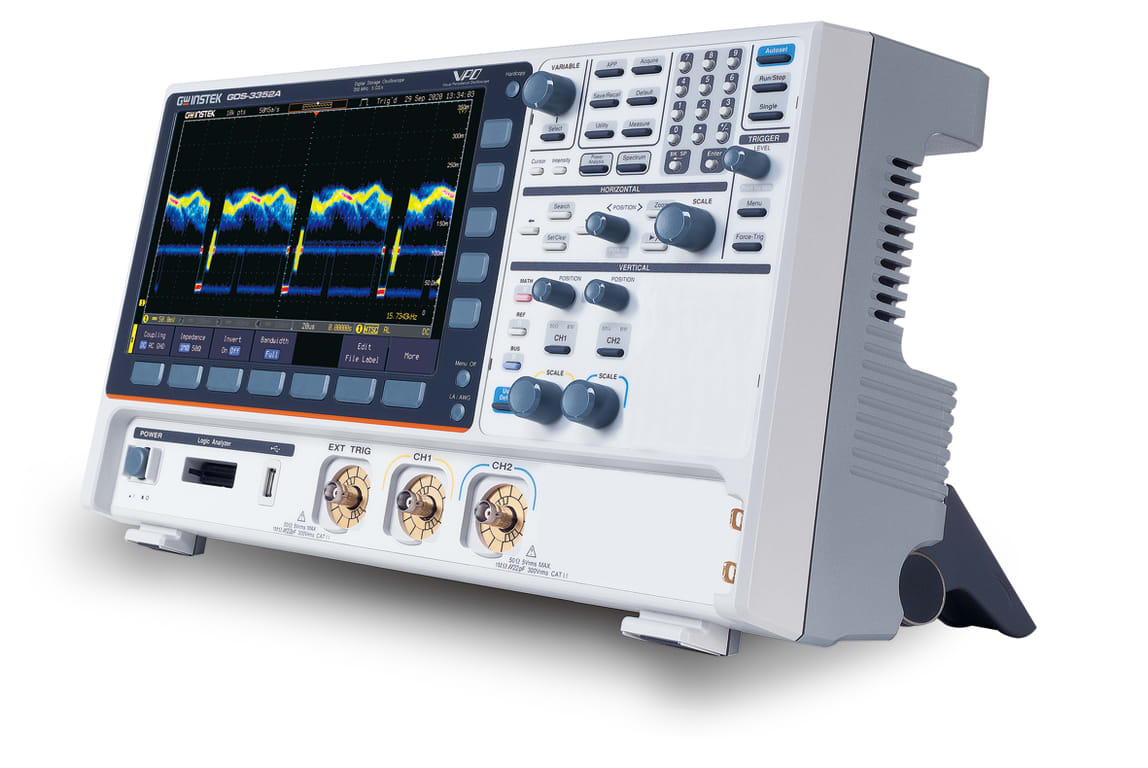

A 25MHz dual-channel arbitrary waveform generator is included as standard with the GDS-3000A. Waveform shapes include Sine, Square, Pulse, Ramp, DC, Noise, Sinc, Gaston, Lorentz, Exponential Rise, Exponential Fall, Haversine, Cardiac and more.
Users can select the arbitrary waveform function to store the signal measured by the analog channel or directly output it from the signal generator.
This function allows users to conveniently generate various types of measured signals to simulate diversified signal outputs. The frequency response analysis function (Bode Plot) is also equipped, which can be applied to product circuit and component characteristic verification and analysis, including RLC circuit design, filter design, and amplifier design verification and analysis.
