Instek GDS-220 - Two Channel, 200 MHz Portable Oscilloscope

Handheld digital oscilloscope

• Two channels, 200 MHz bandwidth
• 7" 480 x 800 full touch panel capacitive LCD with multi point control
• Landscape and portrait display modes
• This model cannot measure temperature

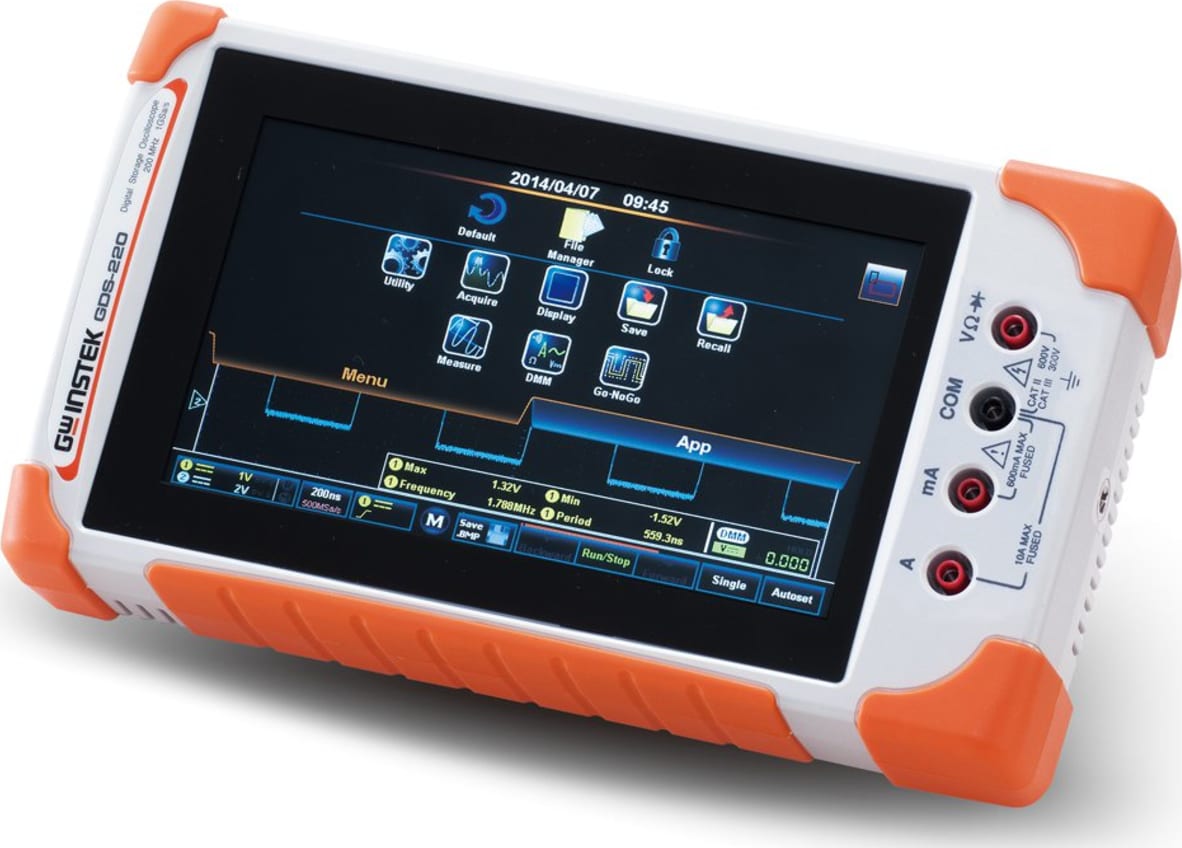

The Instek GDS-200/300 series handheld oscilloscope features two analog input channels and is available with 70, 100 or 200 MHz bandwidth. It features a 7" capacitive full touch panel LCD which can be positioned in portrait and landscape display, as well as a rechargeable battery making it easy to operate in field operation. The GDS-200/300 are ideal for use in laboratories, R&D, solar power inspection and repair, and for maintenance personnel who are always on field assignments.

SELECTION GUIDE

A long sample memory depth helps engineers diagnose waveforms in great detail. The long memory depth can record detailed waveform data and help engineers reproduce the original waveforms while conducting long observations. Any delicate changes of analog waveforms can be clearly presented when adjusting the time scale from long to short, leaving no measurement problems unanswered.

Full Touch Panel Capacitive LCD

GDS-200/300 oscilloscopes feature a 7" capacitive touch panel LCD. With only one finger, users not only can move waveform up and down, but also the trigger line position. Two fingers can be used to adjust vertical voltage level and to enlarge or narrow time division scale. In addition, one finger drag menu selection allows users to follow their intuition to locate required measurement functions, and to save and retrieve diagrams and data anytime anywhere.

Simultaneous utilization of Oscilloscope and DMM

Traditional oscilloscopes cannot meet users' requirements of conducting integrated system circuit measurement. An extra DMM is often required for use with traditional oscilloscopes, to handle larger testing requirements.

GDS-200/300 oscilloscopes integrate the functions of an oscilloscope and DMM to conduct simultaneous measurements. In the analysis of system circuit waveforms, the GDS-200/300 can also use its DMM function to measure basic voltage and current of the peripheral components, providing users with a very powerful test integration.

30,000 Waveform Records Replay Function

GDS-200/300 series oscilloscopes have a built-in 30,000 waveform replay function. With this function, users can monitor circuits for an extended period of time and history records can be replayed repeatedly. Any intermittent abnormal waveforms can be identified with this function, providing users with a very powerful search and debugging weapon.
