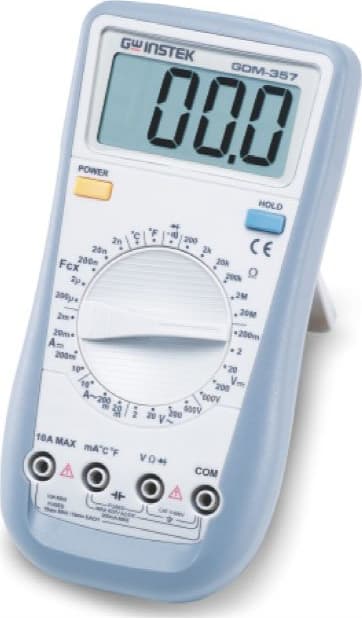

Instek GDM-357 - 3.5 Handheld Digital Multimeter

Name: Instek GDM-357 - 3.5 Handheld Digital Multimeter
Brand: Instek
SKU: InstekGDM-357
Price: 52.00 USD
Availability: InStock

0 reviews | Model: Instek GDM-357

Compare

3.5 Digit Handheld Multimeter [1,999 counts]

3 1/2 Digits 1999 counts
Manual Ranging
Continuity Beeper/Diode Test
Data Hold
Temperature Measurement
Capacitance

View Product Details

Your Price: $52.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Instek GDM-357 3.5 Digit Handheld Multimeter [1,999 counts]	Instek GDM-395 Handheld DMM 3 3/4 digits	Instek GDM-350B 3.5 Digit Handheld Multimeter [1,999 counts]	Instek GDM-360 Handheld DMM 6,000 Count w/RS232	Instek GDM-398 Handheld DMM 4 3/4 digits w/RS-232, MIN/MAX	Instek GDM-452 Handheld DMM 4 1/2 digits
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Instek GDM-357 - 3.5 Handheld Digital Multimeter

3 1/2 Digits 1999 counts
Manual Ranging
Continuity Beeper/Diode Test

The brand new GDM-357 is a 3 1/2 Digits 1999 counts handheld digital multimeter featuring remarkably stable and reliable operation. Is is designed with large-scale integrated circuits, a dual integral A/D converter and also offers overload protection for all ranges. The DMM can measure DC and AC voltage, current, resistance, capacitance, diode, temperature and continuity, which makes it a perfect solution for your work.

The GDM-300/400 Series Hand Held DMM are a compact, high precision, battery operated multimeter series designed to meet most of the daily needs for design engineers as well as service engineers. The GDM-300/400 series design is driven by mobile-oriented features, such as automatic power down to preserve battery life, a large backlight display for crisp viewing, a rotary selector switch and clear-cut push buttons to ease operation.

The basic functions match the depth of bench-top multimeters: fuse-protected current input, true RMS for accurate AC measurements, Auto ranging, Duty cycle, and Relative mode. These compact, reliable, and economical devices are ideal for any engineer.

SELECTION GUIDE
MODEL	GDM-461	GDM-451	GDM-397	GDM-396	GDM-394	GDM-395	GDM-356	GDM-350B
Max. Display	22000	19999	4000	3999	3999	3999	1999	1999
Auto Ranging	✔		✔	✔	✔	✔
Analog Bar	✔		✔
True RMS	✔			✔
Display Backlight		✔	✔	✔	✔		✔
Fused 10A Range	✔		✔	✔	✔			✔
Auto Power off		✔	✔		✔	✔	✔
DC Voltage	1000V	1000V	1000V	1000V	1000V	600V	1000V	250V
AC Voltage	750V	750V	750V	750V	750V	600V	750V	250V
DC Current	10A	20A	10A	10A	10A		20A	10A
AC Current	10A	20A	10A	10A	10A		20A
Resistance	220MΩ	200MΩ	40MΩ	40MΩ	40MΩ	40MΩ	200MΩ	20MΩ
Capacitance	220mF	20µF	4000µF	100µF	100µF	100µF	100µF
Frequency	220MHz	20kHz	10MHz	10MHz	10MHz	99.9kHz	20kHz
Diode	✔	✔	✔	✔	✔	✔	✔	✔
Continuity	✔	✔	✔	✔	✔	✔	✔	✔
Temperature		✔	✔	✔			✔	✔
Duty Cycle(%)	✔		✔	✔	✔	✔
Transistor (hFE)								✔
REL	✔		✔	✔	✔	✔
Data Hold	✔	✔	✔	✔	✔	✔	✔	✔
Peak Hold	✔
MAX MIN			✔
RS232C	✔		✔	✔

DC VOLTAGE
Range	220mV, 2.2V, 22V, 220V, 1000V(GDM-461); 200mV, 2V, 20V, 200V, 1000V(GDM-451/356) 40mV, 400mV, 4V, 40V, 400V, 1000V(GDM-397); 400mV, 4V, 40V, 400V, 1000V(GDM-394/396) 400mV, 4V, 40V, 400V, 600V(GDM-395); 200mV, 2000mV, 20V, 200V, 250V(GDM-350B)
Best Accuracy	±(0.1%rdg + 2 digits) for GDM-461; ±(0.05%rdg + 3 digits) for GDM-451 ±(0.5%rdg + 1 digit) for GDM-397/356; ±(0.8%rdg + 1 digit) for GDM-394/396 ±(0.7%rdg + 3 digits) for GDM-395; ±(0.5%rdg + 2 digits) for GDM-350B
Input Impedance	10 MΩ(3000MΩfor mV range of GDM-461/397)
AC VOLTAGE
Range	220mV, 2.2V, 22V, 220V, 750V(GDM-461); 2V, 20V, 200V, 750V(GDM-451/356) 40mV, 400mV, 4V, 40V, 400V, 750V(GDM-397); 4V, 40V, 400V, 750V(GDM-394/396) 4V, 40V, 400V, 600V(GDM-395); 200V, 250V(GDM-350B)
Best Accuracy	±(0.8%rdg + 10 digits) for GDM-461; ±(0.5%rdg + 10 digits) for GDM-451 ±(1.0%rdg + 3 digits) for GDM-397; ±(1.0%rdg + 5 digits) for GDM-394/396 ±(0.8%rdg + 3 digits) for GDM-356; ±(2.3%rdg + 5 digits) for GDM-395 ±(1.2%rdg + 3 digits) for GDM-350B
Input Impedance	10 MΩ(3000MΩfor mV range of GDM-461/397; 4.5MΩfor GDM-350B; 2MΩfor GDM-451)
DC CURRENT
Range	220µA, 2200µA, 22mA, 220mA, 10A(GDM-461); 2mA, 20mA, 200mA, 20A(GDM-451) 400µA, 4000µA, 40mA, 400mA, 4A,10A(GDM-397); 2000µA, 20mA, 200mA, 10A(GDM-350B) 400µA, 4mA, 40mA, 400mA, 4A,10A(GDM-394/396); 20mA, 200mA, 20A(GDM-356)
Best Accuracy	±(0.5%rdg + 10 digits) for GDM-461; ±(0.5%rdg + 5 digits) for GDM-451 ±(1.0%rdg + 2 digits) for GDM-397/394/396/350B; ±(0.8%rdg + 1 digit) for GDM-356
AC CURRENT
Range	220µA, 2200µA, 22mA, 220mA, 10A(GDM-461); 20mA, 200mA, 20A(GDM-451/356) 400µA, 4000µA, 40mA, 400mA, 4A,10A(GDM-397) 400µA, 4mA, 40mA, 400mA, 4A,10A(GDM-394/396)
Best Accuracy	±(0.8%rdg + 10 digits) for GDM-461/451; ±(1.2%rdg + 5 digits) for GDM-397 ±(1.5%rdg + 5 digits) for GDM-394/396; ±(1.0%rdg + 3 digits) for GDM-356
RESISTANCE
Range	220Ω~ 220MΩ7 ranges(GDM-461); 200Ω~ 200MΩ7 ranges(GDM-451/356) 400Ω~ 40MΩ6 ranges(GDM-394/395/396/397); 200Ω~ 20MΩ6 ranges(GDM-350B)
Best Accuracy	±(0.5%rdg + 10 digits) for GDM-461; ±(0.3%rdg + 1 digit) for GDM-451 ±(1.0%rdg + 2 digits) for GDM-394/396/397; ±(2.0%rdg + 5 digits) for GDM-395 ±(0.8%rdg + 1 digit) for GDM-356; ±(0.8%rdg + 5 digits) for GDM-350B
CONTINUITY BEEPER
Buzzer sounds if conductance less than 70Ωfor GDM-451/394/395/396/356 Buzzer sounds if conductance less than 10Ωfor GDM-461/397/350B
DIODE TEST
Open Circuit Voltage	GDM-461/451/397/356 : 2.8V(Approx.); GDM-394/395/396 : 1.48V(Approx.) GDM-350B : 2.3V(Approx.)
CAPACITANCE
Range	22nF, 220nF, 2.2µF, 22µF, 220µF, 2.2mF, 22mF, 220mF(GDM-461) 40nF, 400nF, 4µF, 40µF, 400µF, 4000µF(GDM-397);2nF, 20nF, 2µF, 20µF(GDM-451) 40nF, 400nF, 4µF, 40µF, 100µF(GDM-394/395/396);20nF, 200nF, 2µF, 100µF(GDM-356)
Best Accuracy	±(3.0%rdg + 5 digits) for GDM-461/397/396/394; ±(3.0%rdg + 40 digits) for GDM-451 ±(5.0%rdg + 10 digits) for GDM-395; ±(4.0%rdg + 3 digits) for GDM-356
FREQUENCY
Range	10Hz ~ 220MHz(GDM-461); 1Hz ~ 20kHz(GDM-451/356) 10Hz ~ 10MHz(GDM-394/396/397); 1Hz ~ 99.9kHz(GDM-395)
Best Accuracy	±(0.01%rdg + 5 digits) for GDM-461; ±(1.5%rdg + 5 digits) for GDM-451/356 ±(0.1%rdg + 3 digits) for GDM-394/396; ±(0.1%rdg + 4 digits) for GDM-397 ±(0.7%rdg + 3 digits) for GDM-395
TEMPERATURE
Range	-40ºC ~ 1000ºC
Best Accuracy	±(1.0%rdg + 30 digits) for GDM-451; ±(1.0%rdg + 7 digits) for GDM-396/356 ±(1.2%rdg + 4 digits) for GDM-397; ±(1.0%rdg + 3 digits) for GDM-350B
SPECIAL FUNCTION
Auto Ranging(GDM-461/397/396/395/394); True RMS(GDM-461/396); RS-232C(GDM-461/397/396) hFE Test(GDM-350B); Display Backlight(GDM-451/397/396/394/356); Analogue Bar(GDM-461/397)
LCD DISPLAY
22000 counts(GDM-461), 4 1/2 digits(GDM-451), 3 3/4 digits(GDM-397/396/395/394), 3 1/2 digits(GDM-356/350B)
POWER SOURCE
Single 9V Battery (6F22), Cell Batteryfor GDM-395 (CR2032)
DIMENSIONS & WEIGHT
87(W) x 180(H) x 47(D) mm, Approx. 370g(GDM-461/397) 85(W) x 177(H) x 40(D) mm, Approx. 330g(GDM-396/394) 80(W) x 165(H) x 38.3(D) mm, Approx. 275g(GDM-451/356) 72(W) x 137(H) x 35(D) mm, Approx. 200g(GDM-350B) 56(W) x 110(H) x 11.5(D) mm, Approx. 97g(GDM-395)
