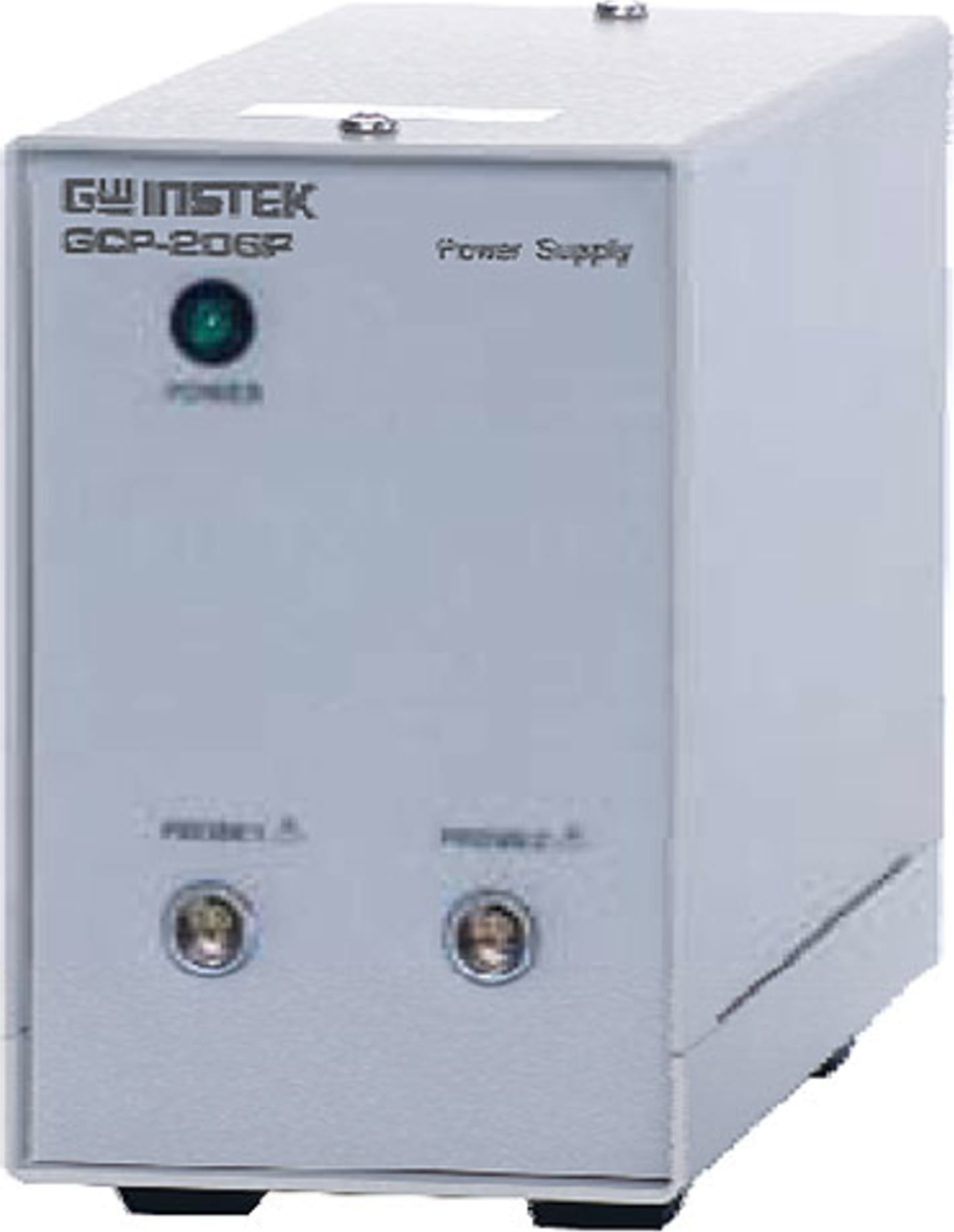

Instek GCP-206P - Power Supply for Current Probe (2 Input Channel)

Name: Instek GCP-206P - Power Supply for Current Probe (2 Input Channel)
Brand: Instek
SKU: InstekGCP-206P
Price: 860.40 USD
Availability: InStock

0 reviews | Model: Instek GCP-206P

Compare

Power Supply for Current Probe (2 Input Channel)

2-channel power supply
For GCP-530 and GCP-1030 series current probes

View Product Details

List Price: $956.00

Your Price: $860.40

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Instek GCP-206P Power Supply for Current Probe (2 Input Channel)	Instek GCP-530 50MHz/30A Current Probe	Instek GCP-1030 100MHz/30A Current Probe	Instek GCP-425P Power Supply for Current Probe (4 Input Channel)
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Instek GCP-206P - Power Supply for Current Probe (2 Input Channel)

The GCP-206P two-channel current probe power supplies designed for the GCP-530 and GCP-1030 clamp current probes. The power supplies are ideal for when power is not available from an oscilloscope. Also use for general current measurement applications.

	GCP-206P	GCP-425P
Compatible Current Probe	GCP-530 GCP-1030	GCP-530 GCP-1030
Number of Power Supply Connectors	2	4
Output Voltage	±12V&±0.5V	±12V&±0.5V
Rated Output Current	600mA	±2.5A
Rated Supply Voltage (50/60Hz)	100V AC&±10%	100V~240VAC&±10%
Maximum Rated Power	20VA	170VA
Dimensions Weight	73(W)x110(H)x 186(D) mm; Approx.1.1kg	80(W)x119(H)x 200 (D) mm; Approx.1.1kg
Accessories	Power cord, fuse	Power cord, fuse
