Instek GBS‐1204 200MHz, 4‐channel Digital Oscilloscopes

Name: Instek GBS‐1204 200MHz, 4‐channel Digital Oscilloscopes
Brand: Instek
SKU: InstekGBS-1204
Availability: InStock

0 reviews | Model: Instek GBS-1204

Compare

200MHz, 4-channel Digital Oscilloscopes

200MHz, 4-channel Digital Oscilloscopes
1GSa/s Real-time Sampling Rate and 25k Points Memory Depth
25GSa/s Equivalent Time Sampling Rate
2mV /div to 5V/div of Vertical Range
1ns/div to 10s/div of Time Base Range
5.7 inch TFT LCD Display
Data Log

Rich Features for Signal Analysis and System Debug

Abundant Trigger Functions to Capture Demanded Signals
27 Automatic Measurement Functions offer Direct Measurement Readings
FFT and FFTrms Computing Provides the Frequency Domain Analysis

Communication Interfaces and I/O

Go/NoGo output
USB host/device port
RS232

Target Customers

Education and training
Production tests and quality assurance
Maintenance and services
Circuit design and debug

View Product Details

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Standard / Passive Oscilloscope Probes

for the Instek GBS-1204

Instek GTP-250A-2 250Mhz Scope Probe

Catalog: GTP-250A-2

(0)

In Stock!

Add to Cart

The GBS-1000 series, an economical selection of the four-channel DSO, offers three frequency ranges including 200,100, and 70MHz, real time sampling rate of 1 GSa/s, equivalent time sampling rate of 25GSa/s and 25k points memory depth.

The GBS-1000 series has numerous features including 5.7” TFT color LCD display, 27 automatic measurements, FFT and FFTrms tests, 12-graticule horizontal display, Go/NoGo for predefined conditions, and flexible interface selections such as USB and RS 232. By using the USB interface, users can save waveform images and waveform data as well as carry out waveform printout. The diversified features have made the GBS-1000 series the valuable choice of the economical four-channel oscilloscope.

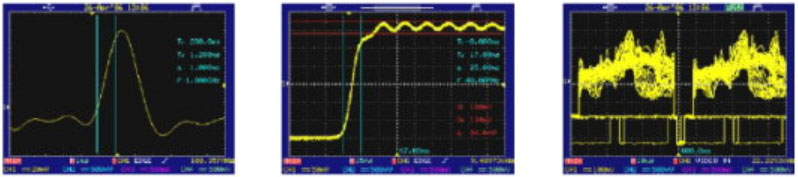

Signal Acquisition

The GBS-1000 series features real time sampling rate of 1GSa/s and equivalent time sampling rate of 25GSa/s. The three built-in signal acquisition methods are normal, peak detect and average. The flexible trigger type selections comprise edge, video (NTSC, PAL, SECAM) and pulse width. The trigger modes of edge and pulse include auto, normal and single.

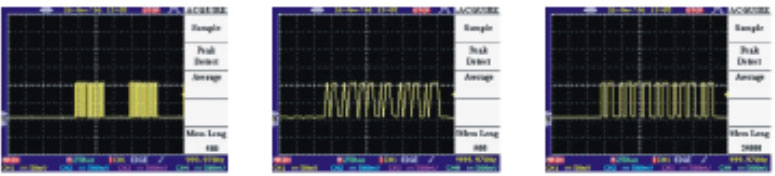

25k Points Waveform Memory Depth

25kPointsWaveformMemoryDepth

Oscilloscopes with long memory facilitate users to retrieve more waveform data in a certain period of time. The GBS-1000 series, with 25k points memory depth, allows users to meticulously observe signals. Users, via the Acquire function of the GBS-1000 series, can select 25k or 500 points memory depth to analyze complex waveforms or acquire fast updated waveforms.

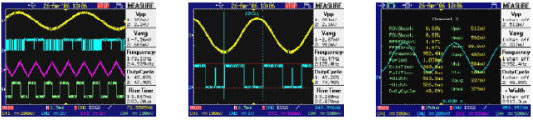

Measurement Functions

MeasurementFunctions

The GBS-1000 series provides 27 automatic measurement selections including voltage, period and time delay. Each channel can execute 5 measurement items simultaneously. 10 measurement results of two channels combined can be shown on the screen at the same time. All measurement results displaying on the screen allow users to efficiently observe all measurement parameters so as to better interpret signals. Once the cursor function is on, the measurement target will be the signal within the cursor. After pressing Menu Off key, the measurement information will still be shown on the screen.

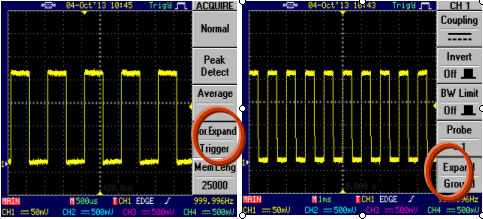

Complete vertical and horizontal expansion function

Complete-vertical-and-horizontal-expansion-function

Complete-vertical-and-horizontal-expansion-function

Users, via the GBS-1000 series, can either select GND or the center of the signal to execute vertical expansion. Either the center of the signal or the vertical trigger point can be selected to carry out horizontal expansion. A sound signal expansion selection facilitates users to expand required signals for a detailed observation of signal trigger points.

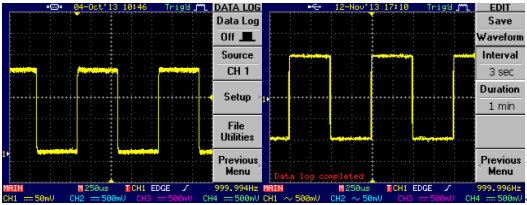

Data Log

Data-Log

The data log function allows users to continuously record waveform data in a USB flash drive. After presetting time, interval and format for data recording the data log function will automatically record signals, which met trigger conditions. This function facilitates waveform recording for a long period of time that is beneficial to the observation and measurement result analysis afterwards.

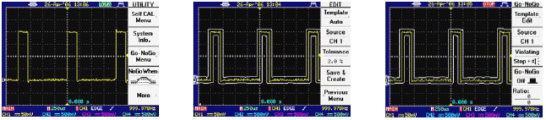

Go/NoGo Test

Go-NoGo-Test

The Go/NoGo function verifies whether or not the input signals are consistent with users’ preset conditions. Users have to preset waveform reference and signal conditions to activate Go/NoGo function and the Go or NoGo result will be shown on the screen instantly. Once the result is NoGo the GBS-1000 will be sounding a buzz or sending out a control signal through the BNC output interface on the rear panel.

	GBS-1074	GBS-1104	GBS-1204
VERTICAL
Channels	4	4	4
Bandwidth	DC ~ 70MHz (-3dB)	DC ~ 100MHz (-3dB)	DC ~ 200MHz (-3dB)
Rise Time	5 ns Approx.	3.5ns Approx.	1.75ns Approx.
Sensitivity	2mV/div ~ 5V/div (1-2-5 increments)
Accuracy	±(3% x \|Readout\|+0.05 div x Volts/div+0.8mV)
Input Coupling	AC, DC & Ground
Input Impedance	1MΩ±2%, ~16pF
Polarity	Normal & Invert
Maximum Input	300V (DC+AC peak), CATII
Waveform Signal Process	+ , - , X ,FFT ,FFTrms
Offset Range	2mV/div ~ 20mV/div : ±0.5V 50mV/div ~ 200mV/div : ±5V 500mV/div ~ 2V/div : ±50V 5V/div : ±300V
Bandwidth	Limit 20MHz (-3dB)
TRIGGER
Sources	CH1 , CH2 , CH3 , CH4 , Line
Types	Edge ,Video ,Pulse
Modes	Auto-Level ,Auto, Normal, Single
Video trigger standard	SECAM ,PAL ,NTSC
Coupling	AC , DC , LF rej. , HF rej. , Noise rej.
Sensitivity	DC ~ 25MHz : Approx. 0.5div or 5mV 25MHz ~70/100/ 200MHz : Approx. 1div or 10mV
HORIZONTAL
Range	1ns/div ~ 10s/div (1-2-5 increments) ROLL : 250ms/div ~ 10s/div
Modes	Main, Window, Window Zoom, Roll, Scan, X-Y
Accuracy	±0.01%
Pre-Trigger	20 div maximum
Post-Trigger	1000 div
X-Y MODE
X-Axis Input	Channel 1
Y-Axis Input	Channel 2 or Channel 3 or Channel 4
Phase Shift	±3° at 100kHz
SIGNAL ACQUISITION
Real-Time Sample Rate	1GSa/s maximum
Equivalent Sample Rate	25GSa/s maximum
Vertical Resolution	8 Bits
Record Length	25K Points maximum
Acquisition Mode	Normal, Peak Detect, Average
Peak Detection	10ns
Average	2 , 4 , 8 , 16 , 32 , 64 , 128 , 256
CURSORS AND MEASUREMENT
Voltage Measurement	Vpp , Vamp , Vavg , Vrms , Vhi , Vlo , Vmax , Vmin , Rise Preshoot/ Overshoot , Fall Preshoot/Overshoot
Time Measurement	Freq , Period , Rise Time , Fall Time , Positive Width , Negative Width , Duty Cycle
Delay Measurement	Eight types of delay measurement
Cursors Measurement	Voltage difference between cursors (ΔV) Time difference between cursors (ΔT)
Auto Counter	Resolution : 6 digits Accuracy : ±2% Signal Source: All available trigger source except the Video trigger mode
CONTROL PANEL FUNCTION
Autoset	Automatically adjusts Vertical VOLTS/DIV, Horizontal TIME/DIV, and Trigger level
Save Setup	Up to 20 sets of measurement conditions
Save Waveform	24 sets of waveform
DISPLAY
TFT LCD Type	5.7 inch
Display Resolution	234 (Vertically) x 320 (Horizontally) Dots
Display Graticule	8 x 10 divisions ; 8 x 12 divisions (menu off)
Display Brightness	Adjustable
INTERFACE
Go/NoGo Output	5V Maximum/10mA TTL Open Collector Output
RS-232 Interface	DB 9-pin male DTE RS-232 interface
GPIB Interface (Option)	Fully programmable with IEEE 488.2 compliance
USB	USB Host/Device 2.0 full speed supported
POWER SOURCE
Line Voltage Range	AC 100V ~ 240V , 48Hz ~ 63Hz , Auto selection

MISCELLANEOUS
Multi-Language Menu	Available
Online Help	Available
Data Log	Available
Time Clock	Time and Date, Provide the Date/Time for saved data
DIMENSIONS & WEIGHT
	310(W) x 142(H) x 254(D) mm; Approx. 4.3kg
